YOKOGAWA Non-Dispersive Infrared Gas Analyzers (NDIR) IR400

Availability: In stock

Product type: Gas Analyzers

Precio habitual ~~$800.00~~ $800.00 Oferta

Overview Infrared Gas Analyzer IR400 The IR400 infrared gas analyzer is capable of measuring the concentrations of NO, SO2, CO2, CO, CH4 and O2 components in sample gas. NO,...

Precio habitual ~~$800.00~~ $800.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

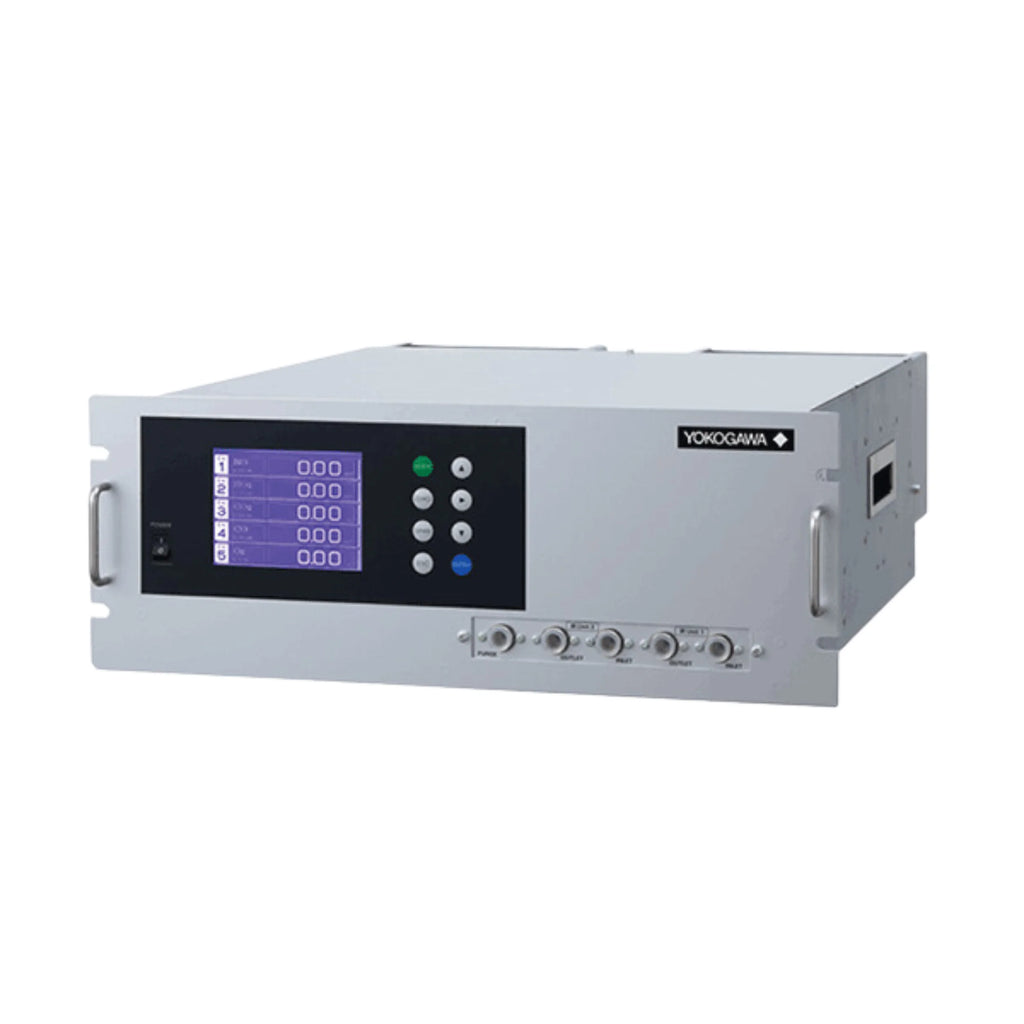

Infrared Gas Analyzer IR400

The IR400 infrared gas analyzer is capable of measuring the concentrations of NO, SO2, CO2, CO, CH4 and O2 components in sample gas. NO, SO2, CO2, CO and CH4 are measured by the non-dispersive infrared method (NDIR), while O2 is measured by built-in paramagnetic sensor or external zirconia sensor. A maximum of 5 components including O2 (up to 4 components except for O2 measurement) are simultaneously measurable.

The mass flow type twin detector of high sensitivity and reliability adopted in the infrared ray method detection unit makes the measurement hardly affected by interfering components. In addition, the IR400 has a large-size liquid crystal display, providing easy operation, high accuracy and multiple functions.

Benefits

The highly sensitive and reliable mass flow type twin detector used in the infrared ray method detection block makes measurements much less susceptible to interference from other components. In addition, a microprocessor is built in and a large-size liquid crystal display is equipped for easier operation, higher accuracy and more functions.
This gas analyzer is an ideal system for the measurement of combustion exhaust gas from refuse incinerators and boilers, or gas from various types of industrial furnaces.
* Measure 5 components including O2 simultaneously and continuously
* Hardly affected by interference from other gases
* Equipped with abundant functions
* Large, easy-to-see LCD unit
* 19 inch rack mount structure

Application

Optimum as an analyzer unit of measurement system for combustion exhaust gas from refuse incinerator and boiler, or gas from different industrial furnaces.

Specification

Item	value
Warranty	1 Year
Type	Infrared (IR) Gas Detector
Customized support	OEM, ODM, OBM
Place of Origin	Japan
Brand Name	YOKOGAWA
Model Number	IR400
Power	100 to 240 V AC
Material	SUS304/neoprene rubber
Usage	Industrial, laboratory, Other
Measure Components	NO, SO2, CO2, CO, CH4 and O2
Operating conditions ambient temperature	-5 to 45°C
Operating conditions ambient humidity	90%RH max non-condensing
Dimensions	177mm 483mm 599mm
Weight	22kg
