Overview
Smart, flexible insertion measuring device – individually for your process.
Specs at a glance
* Max. measurement error
Density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: 2m/s
* Measuring range
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)
Density 0.7 to 1.5 g/cm³
* Medium temperature range
0 to 100 °C (32 to 212 °F)
* Process temperature
0 to 100 °C (32 to 212 °F)
* Max. process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)
* Process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)
Density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: 2m/s
* Measuring range
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)
Density 0.7 to 1.5 g/cm³
* Medium temperature range
0 to 100 °C (32 to 212 °F)
* Process temperature
0 to 100 °C (32 to 212 °F)
* Max. process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)
* Process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)
Field of application

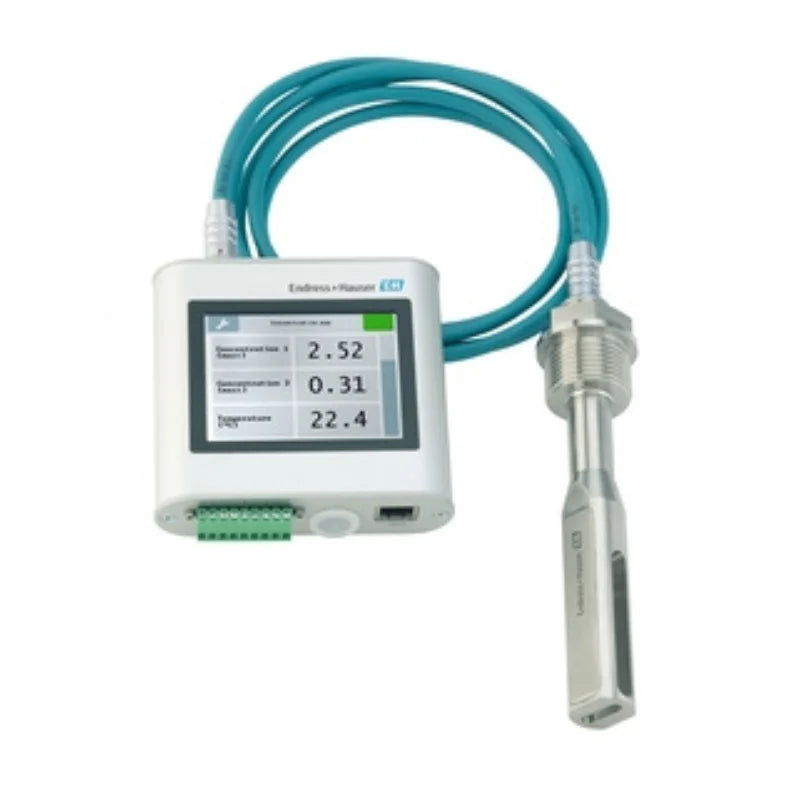

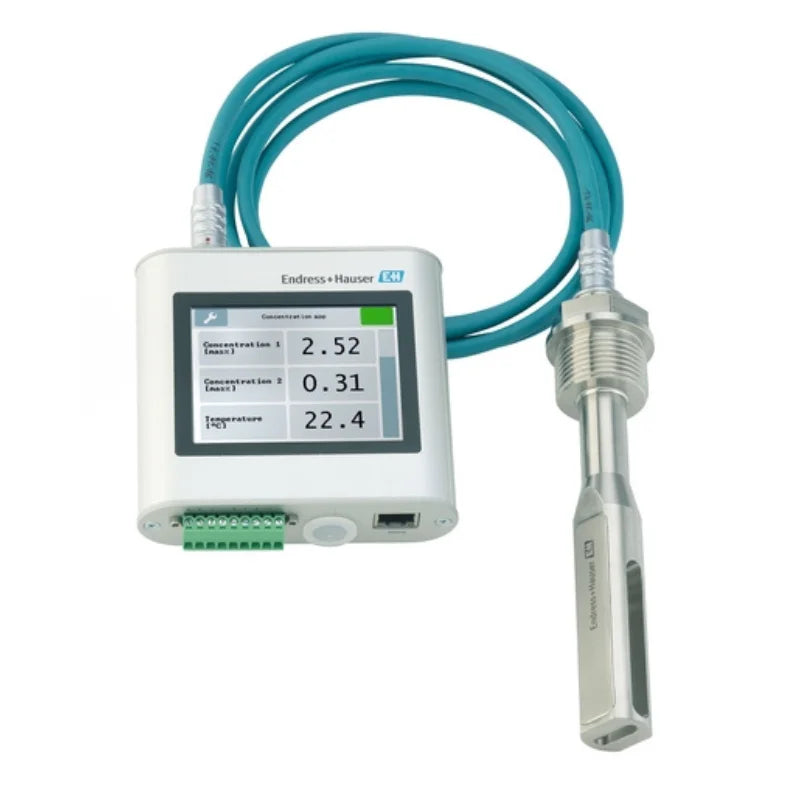

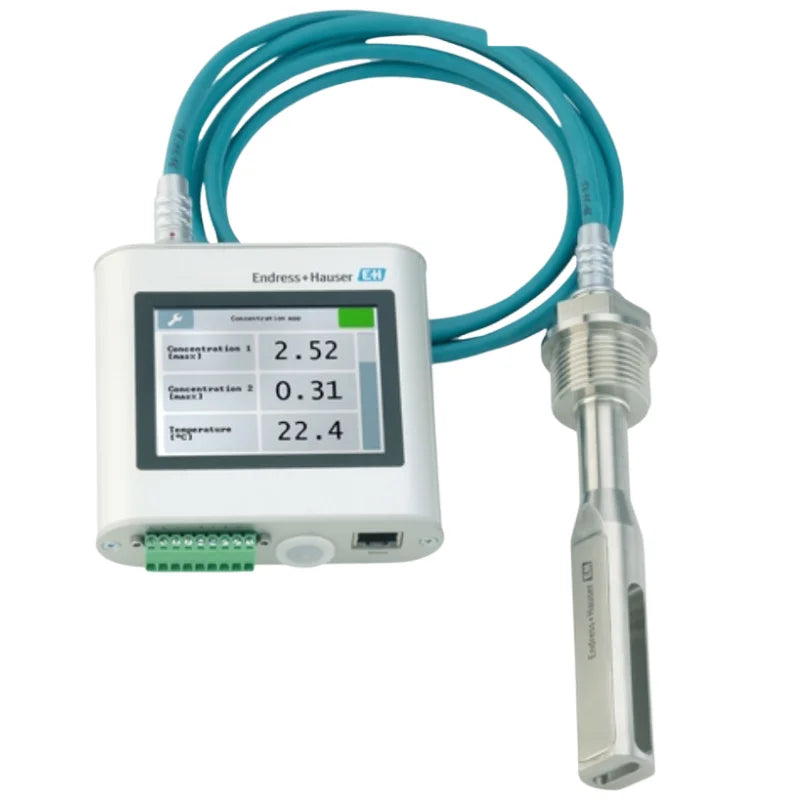

The insertion measuring device Teqwave I was developed for accurate real-time liquid analysis in vessels and larger pipes.Dedicated to in situ concentration measurement, Teqwave monitors various measuring parameters at once, and thus reduces operational expenditure. Match your Teqwave transmitter perfectly to your production needs: You can flexibly define and extend your application range.
* The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
* Continuous concentration measurement of liquids in vessels or large pipes.
Device properties
* Insertion length: 180 mm (7 in) or 500 mm (20 in)
* Accurate and independent of flow profile
* Industry-compliant, easy installation via DIN rail
* 3.5" TFT color touch screen or LED indication
* 4-20 mA, Modbus TCP
* The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
* Continuous concentration measurement of liquids in vessels or large pipes.
Device properties
* Insertion length: 180 mm (7 in) or 500 mm (20 in)
* Accurate and independent of flow profile
* Industry-compliant, easy installation via DIN rail
* 3.5" TFT color touch screen or LED indication
* 4-20 mA, Modbus TCP
Benefits
* Easy and efficient – real-time in situ liquid analysis
* Full transparency – constant monitoring of product quality without sampling
* Highest process safety – reliable metering due to robust, maintenance-free sensor
* Cost-saving – fewer measuring points due to multivariable measurement
* Customized usage – innovative application concept, expendable for changing measuring tasks
* Simplified process control – user-friendly operation and clear status visualization
* Local data backup – integrated data storage for measured values up to 7,5 years
* Full transparency – constant monitoring of product quality without sampling
* Highest process safety – reliable metering due to robust, maintenance-free sensor
* Cost-saving – fewer measuring points due to multivariable measurement
* Customized usage – innovative application concept, expendable for changing measuring tasks
* Simplified process control – user-friendly operation and clear status visualization
* Local data backup – integrated data storage for measured values up to 7,5 years
Specification
item
|
value
|
Warranty
|
1 Year
|
Type
|
Ultrasonic concentration meter
|
Customized support
|
OEM
|
Place of Origin
|
Germany
|
Brand Name
|
Endress+Hauser
|
Model Number
|
Teqwave I
|
Material
|
Stainless steel
|
Product Headline
|
Smart, flexible insertion measuring device – individually for your process.
Easy and efficient – real-time in situ liquid analysis. Continuous concentration measurement of liquids in vessels or large pipes. |
Sensor Features
|
Full transparency – constant monitoring of product quality without sampling. Highest process safety – reliable metering due to
robust, maintenance-free sensor. Cost-saving – fewer measuring points due to multivariable measurement. Insertion length: 180 mm (7 in) or 500 mm (20 in). Accurate and independent of flow profile. |
Transmitter Features
|
Customized usage – innovative application concept, expendable for changing measuring tasks. Simplified process control –
user-friendly operation and clear status visualization. Local data backup – integrated data storage for measured values up to 7,5 years. Industry-compliant, easy installation via DIN rail. 3.5" TFT color touch screen or LED indication. 4-20 mA, Modbus TCP. |
Nominal Diameter Range
|
Insertion length: 180 mm (7") or 500 mm (20")
|
Measured Variables
|
Concentration
Density Sound velocity Temperature |
Max. measurement error
|
Density: ±0.01g/cm³
Temperature: ±0.5K Sound velocity: 2m/s |
Measuring Range
|
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F) Density 0.7 to 1.5 g/cm³ |
Max. Process Pressure
|
Density: ±0.01g/cm³
Temperature: ±0.5K Sound velocity: 2m/s |
Design
|
Insertion
|
Material
|
Sensor housing material: Stainless steel V4A 1.4571
|
Process Temperature
|
0 to 100 °C (32 to 212 °F)
|
Process Pressure
|
max. 16 bar at 20 °C (232 psi at 68 °F)
|
Ex certification
|
Non-hazardous area
UK; Non-hazardous area |
Ingress Protection
|
Sensor: IP68 (with cable plugged in), IP66 (without cable connector)
Transmitter: IP40 |
Display/Operation
|
LED status indication
TFT color touch display |
Outputs
|
4-20mA / Modbus TCP
|
Power Supply
|
DC 24 V (18 to 35 V)
|
Product Safety
|
CE, C-tick
|
