YOKOGAWA Non-Dispersive Infrared Gas Analyzers (NDIR) IR202

Availability: In stock

Product type: Gas Analyzers

Precio habitual ~~$800.00~~ $800.00 Oferta

Overview Infrared Gas Analyzer IR202 The model IR202 is capable of measuring concentration of CO2, CO, CH4, SO2, and NO components in process gas by using the non-dispersive infrared...

Precio habitual ~~$800.00~~ $800.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

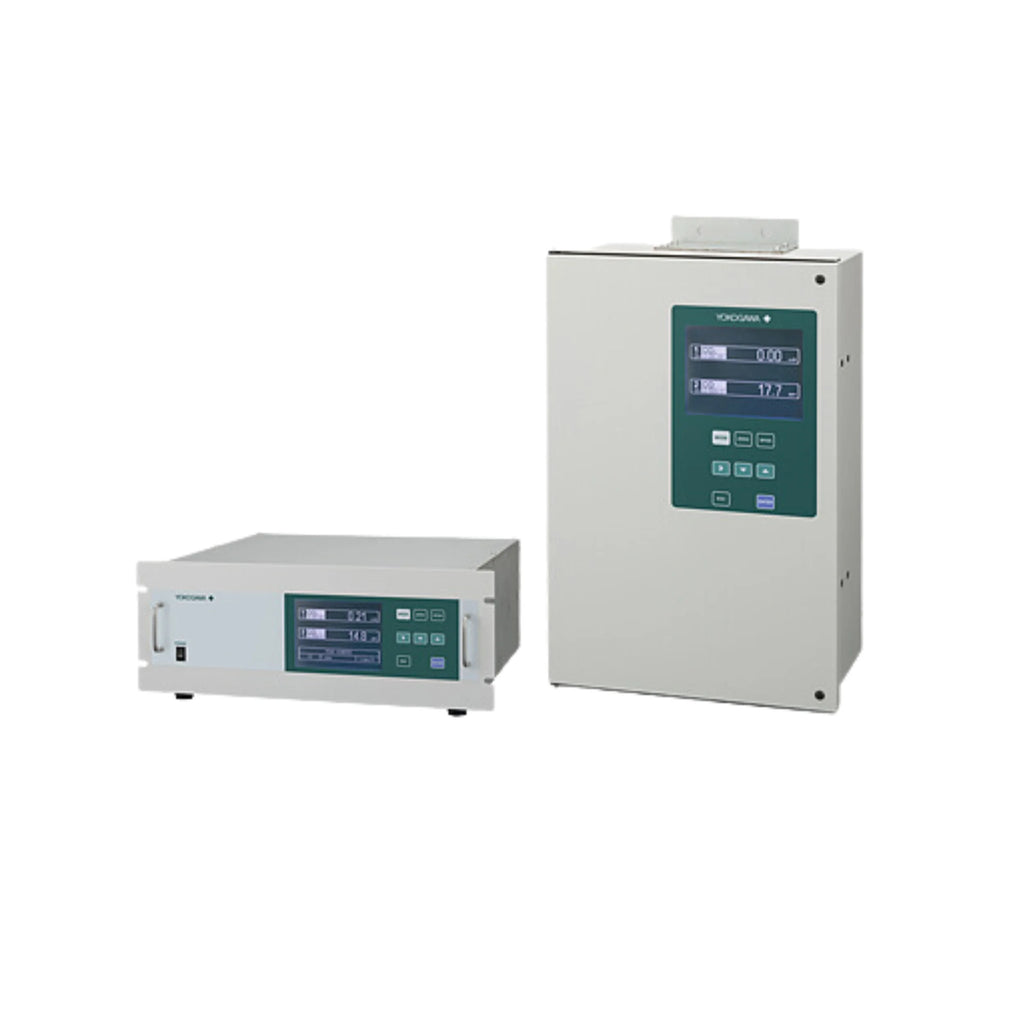

Infrared Gas Analyzer IR202

The model IR202 is capable of measuring concentration of CO2, CO, CH4, SO2, and NO components in process gas by using the non-dispersive infrared method (NDIR), while measuring O2 with the paramagnetic or zirconia method.

A maximum of 4 components including O2 (or up to 3 components without O2 measurement) are simultaneously measurable.

Benefits

* Simultaneous measurement of 4 components, including O2
* High stability for long periods
* Easy maintenance thanks to a single beam system for measurement
* Interactive operation on a large LCD screen
* Automatic calibration, self-diagnostics, and other useful functions

Application

A high-sensitivity mass flow sensor is adopted in the detection unit for the infrared method. Due to use of single beam system for measurement, low maintenance and an excellent stability are ensured for a long period of time. Microprocessor-based IR202 has a large-sized liquid crystal display, providing easy operation, high accuracy and multiple functions thus is optimum for measuring combustible gas, exhausted from boilers or incinerators.

This analyzer is a powerful tool for combustion control of various industrial furnaces, for botanical studies, and for global
atmospheric research.

Specification

Item	value
Warranty	1 Year
Type	Infrared (IR) Gas Detector
Customized support	OEM, ODM, OBM
Place of Origin	Japan
Brand Name	YOKOGAWA
Model Number	IR202
Material	SUS304/polychloroprene
Usage	Industrial, laboratory
Measurement components	CO2 CO CH4 SO2 NO O2
Measurement principle	Non-dispersive infrared method Single light source-single beam
Display	Digital 4-digit LCD with LED backlight
Power supply	100 to 240 V AC
Operating conditions Ambient temperature	-5 to 45°C
Operating conditions Ambient humidity	90 % RH max. non-condensing
Dimensions	177 × 483 × 480 mm
Weight	Approx. 11 kg
Pressure	10 kPa or less
