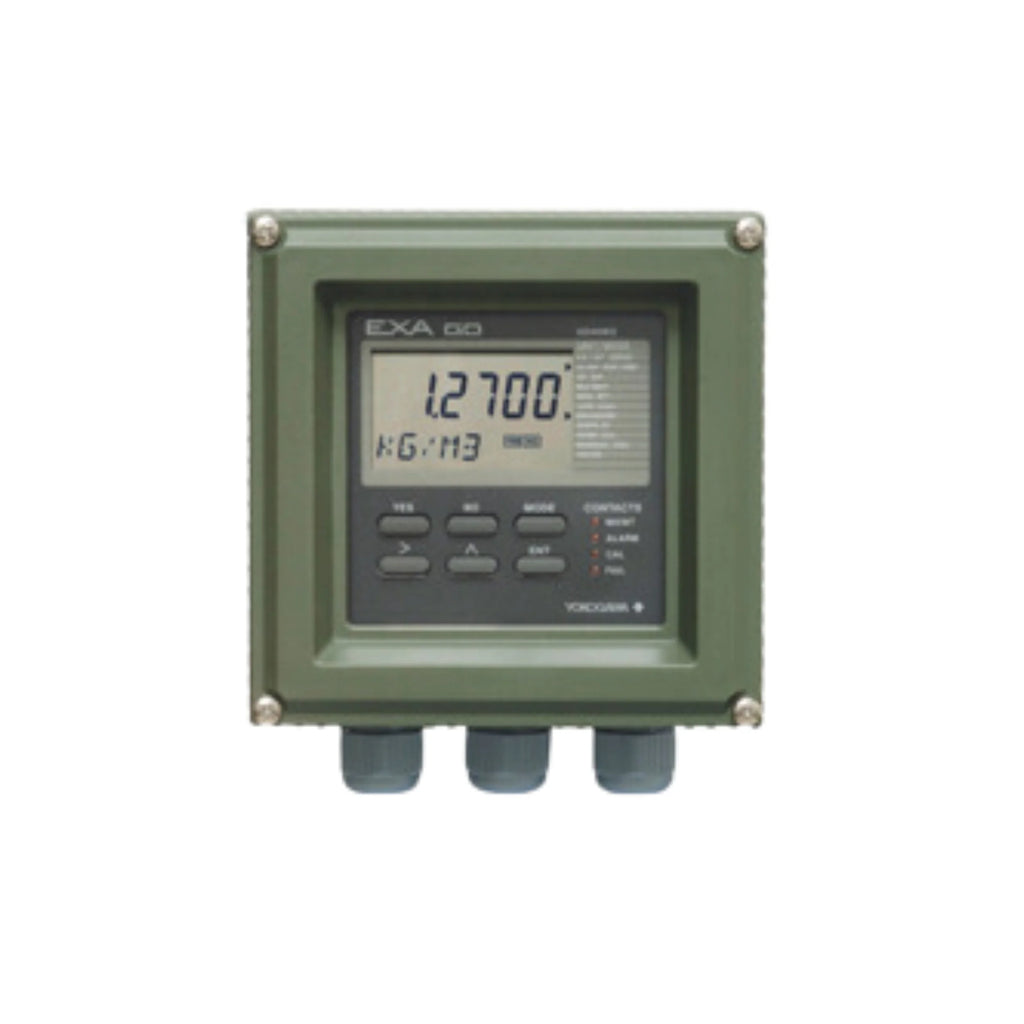

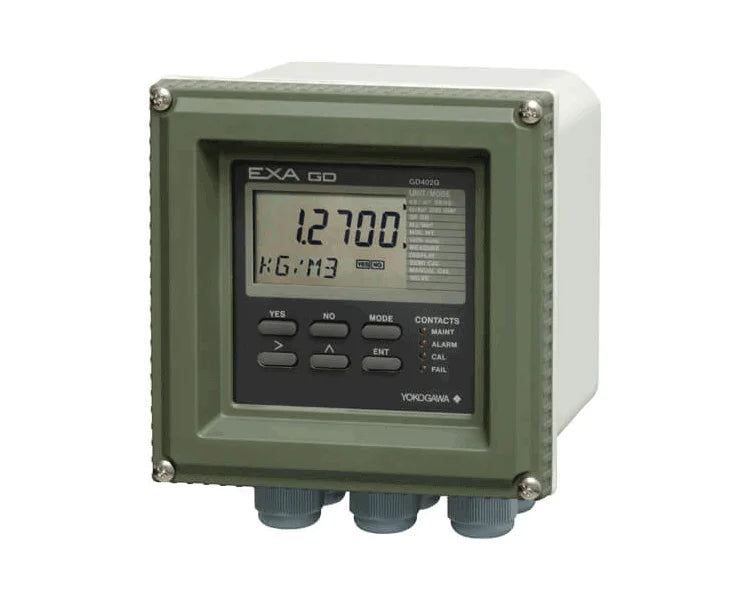

YOKOGAWA EXA GD402 Gas Density Analyzer

Availability: In stock

Product type: Gas Analyzers

Vendor: YOKOGAWA

Precio habitual ~~$1,000.00~~ $1,000.00 Oferta

Overview There are many applications where the accurate, repeatable measurement of gas density is essential. From blending of fuel, to product quality, to Hydrogen purity and replacement in utility...

Precio habitual ~~$1,000.00~~ $1,000.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

There are many applications where the accurate, repeatable measurement of gas density is essential. From blending of fuel, to product quality, to Hydrogen purity and replacement in utility turbines, Yokogawa's family of Gas Density products allow you to
make accurate measurements with superior reliability and ease of maintenance and operability.

The Model GD402 gas density analyzer and Model GD40 detector not only provide continuous measurement of gas density, but also several other valuable parameters, including specific gravity and molecular weight. The GD40 detector is designed for intrinsically safe and flameproof, explosion protected applications. It is designed to be virtually maintenance free for all accepted applications.

The Model GD402 is a rugged microprocessor-based converter designed in two versions to meet both general area and explosion-proof application requirements. In addition to the display of several key data items, the converter also provides the choice of three different means for calibration: automatic; semi-automatic and one-touch manual operation.
* Proven Design
* Many detector features
* Simple, user-friendly interface
* Low installation cost

The Gas Density Meter consists of gas density converter GD402 and gas density detector GD40. The Model GD402 gas density converter and Model GD40 detector not only provide continuous measurement of gas density, but also several other valuable parameters, including specific gravity and molecular weight. The GD40 detector is designed for intrinsically safe and explosion-proof, explosion protected applications. It is designed to be virtually maintenance free for all accepted applications.

The Model GD402 is a rugged microprocessor based converter designed in two versions to meet both general area and explosion-proof application requirements. In addition to the display of several key data items, the converter also provides the choice of three different means for calibration: automatic; semi automatic and one-touch manual operation.

Specification

Item	value
Warranty	1 Year
Customized support	OEM, ODM, OBM
Place of Origin	Japan
Brand Name	YOKOGAWA
Model Number	GD402
Usage	Industrial, laboratory
Density Minimum range	0.1
Response Time 90%	approx. 5 sec
Linearity	±1 % FS
Repeatability	± 0.001 or ±0.5%FS *
Long term stability	± 0.003/month
Measurement type	General purpose detector (Non-Explosion-proof)
Power Supply	100 to 240 V AC, 24 V DC
Sample gas conditions temperature	-10 to 60°C (non-condensing)
