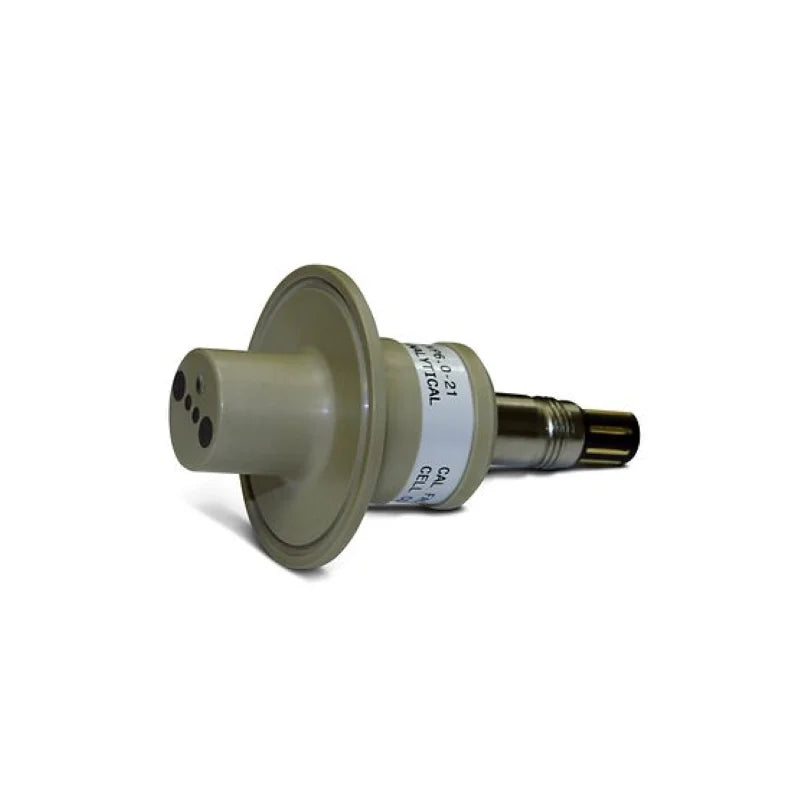

ROSEMOUNT 410VP Four-Electrode Conductivity Sensor

Availability: In stock

Product type: Liquid Analysis

Vendor: ROSEMOUNT

Precio habitual ~~$999.00~~ $999.00 Oferta

Overview Rosemount™ 410VP Four-Electrode Conductivity Sensor The Rosemount 410VP Four-Electrode Conductivity Sensor is primarily intended for the measurement of electrolytic conductivity in the pharmaceutical and food and beverage...

Precio habitual ~~$999.00~~ $999.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

Rosemount™ 410VP Four-Electrode Conductivity Sensor

The Rosemount 410VP Four-Electrode Conductivity Sensor is primarily intended for the measurement of electrolytic conductivity in the pharmaceutical and food and beverage industries. The broad dynamic range of this conductivity sensor (1 - 14,000 uS/cm) makes it ideal for CIP applications. Other uses include monitoring eluents in chromatographic separations and detecting liquid interfaces.

Features

* Four-electrode design provides exceptional linearity between 1 uS/cm and 1400 mS/cm
* No initial calibration requirements - factory-measured cell constant ensures out-of-the-box accuracy
* Available in four sanitary process fittings
* Sensor body and elastomers are compliant with 21CFR177
* Steam sterilization (SIP) tolerant up to 284 °F (140 °C)

Specification

Warranty	1 Year
Customized support	OEM, ODM, OBM
Place of Origin	American
Brand Name	EMERSON/ROSEMOUNT
Model Number	410VP Four-Electrode Conductivity Sensor CONFIGURE
Measurement Range	1 uS/cm to 1400 mS/cm
Accuracy	within ±4% of the expected conductivity
Materials of Construction	Wetted Materials: Electrodes: 316L stainless steel Sensor Body: Unfilled PEEK; compliant with 21CFR177.2415 O-Ring (G 1 ¼ process connection only): EP; compliant with 21CFR177.2600 All wetted surfaces except electrodes have 16 micro inch (0.4 micrometer) Ra surface finish.
