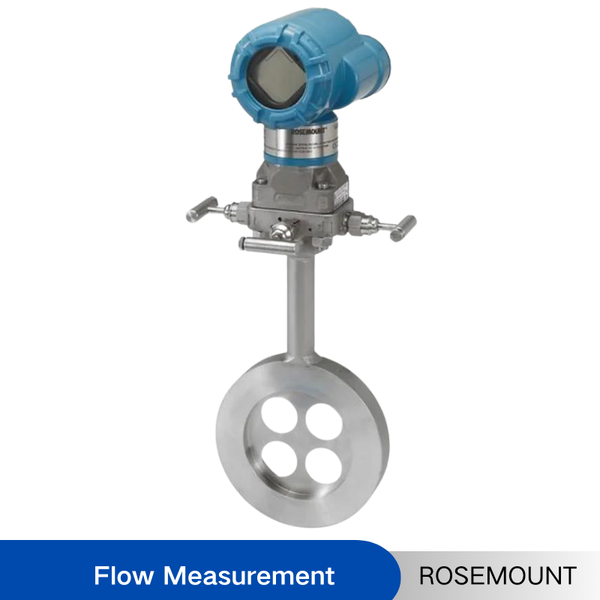

ROSEMOUNT 3051CFC Compact Orifice Plate Flow Meter

ROSEMOUNT 3051CFC Compact Orifice Plate Flow Meter

: In stock

: FLow Meter

: ROSEMOUNT

Sale

Overview Rosemount™ 3051CFC Compact Orifice Plate Flow Meter Featuring multivariable measurements in a single device, the Rosemount 3051SFC Compact Orifice Flow Meter delivers accurate flow measurements. Built with either...

Overview

Rosemount™ 3051CFC Compact Orifice Plate Flow Meter Featuring multivariable measurements in a single device, the Rosemount 3051SFC Compact Orifice Flow Meter delivers accurate flow measurements. Built with either a compact orifice plate or a patented 4-hole conditioning plate, this flow meter provides measurements for closed loop control, general purpose monitoring and custody transfer applications. Available in line sizes up to 12 in. (300 mm), this primary element is designed for gas, liquid and steam service and operates well in harsh process conditions. This device is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART.

Features


* General purpose orifice plate design delivers reliable and accurate flow measurement for gas, liquid, and steam service
* Application specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer
* Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
* 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
* Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
* The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
* Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
* Quick service buttons offer built-in configuration buttons for streamlined commissioning
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* Either the patented 4-hole orifice plate or the standard ASME/ISO corner tap orifice fits between raised-face flanges for
simple installation
* WirelessHART® technology is secure, cost-effective and delivers >99% data reliability without the cost of wiring
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

Specification


Item
value
Warranty
1 Year
Customized support
OEM, ODM, OBM
Place of Origin
United States
Brand Name
ROSEMOUNT
Model Number
3051CFC
Rangedown
Up to 150:1 (8:1 flow turndown)
Communication Protocol
4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range
Up to 1000 inH2O (2,48 bar) differential
Line Size
0.5 to 12 in. (15 to 300 mm)
Process Wetted Material
316 SST
Diagnostics
Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of
certifications
Wireless Update Rate
1 sec. to 60 min., user selectable
Power Module Life
Up to 10-year life, field replaceable (order separately)
Wireless Range
Internal antenna (225 m)
