Overview

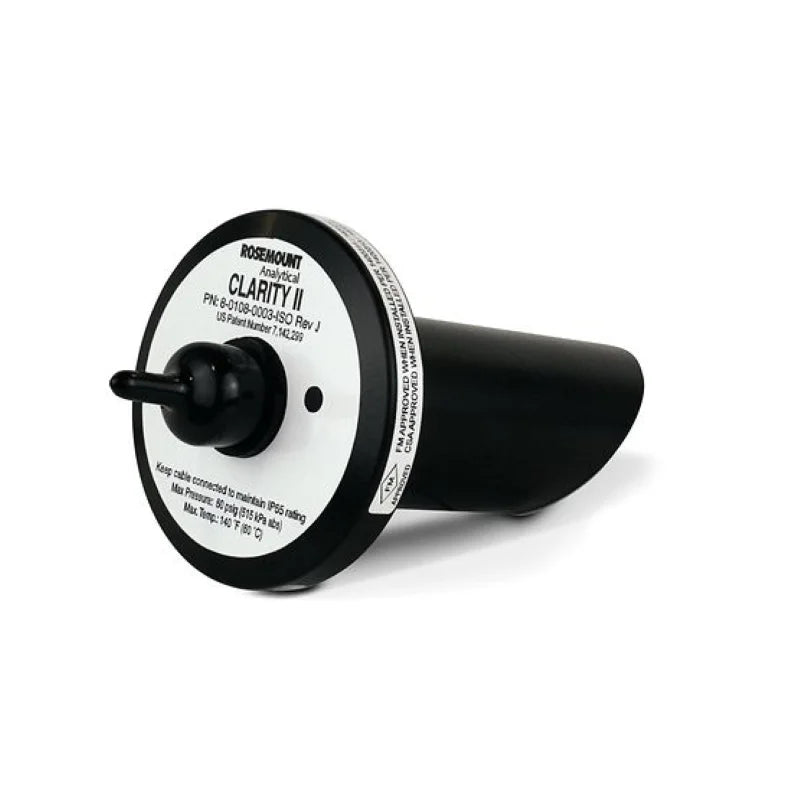

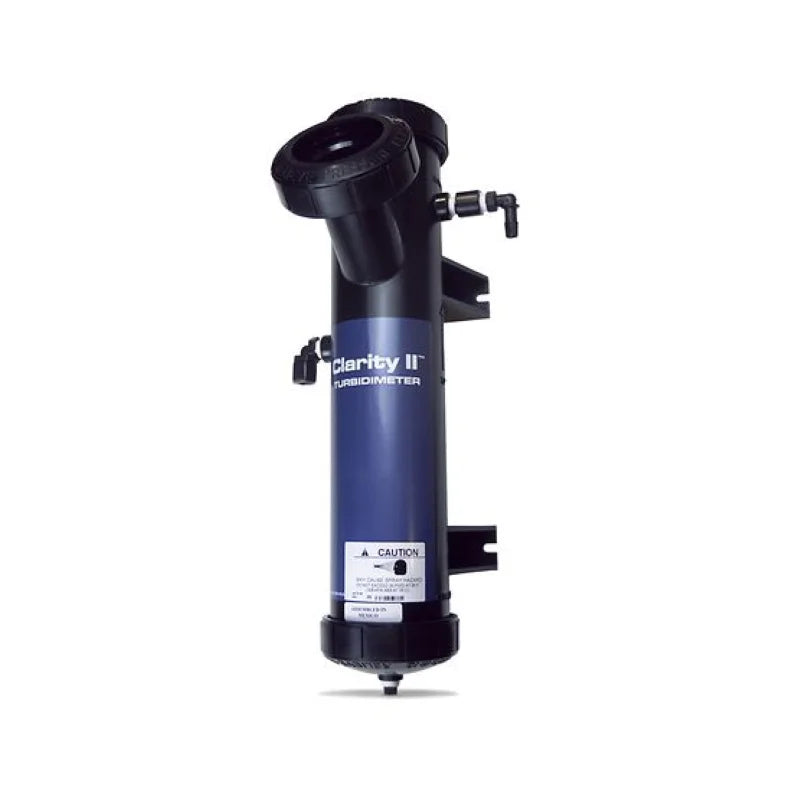

T1056 Clarity™ II TurbidimeterThe Rosemount T1056 Clarity™ II Turbidimeter measures turbidity in water. Low stray light, high stability, efficient bubble rejection, and a display resolution of 0.001 NTU make this turbidimeter ideal for monitoring the turbidity of filtered drinking water. The turbidimeter can be used in other applications like monitoring wastewater discharges, condensate returns and clarifiers.
Benefits

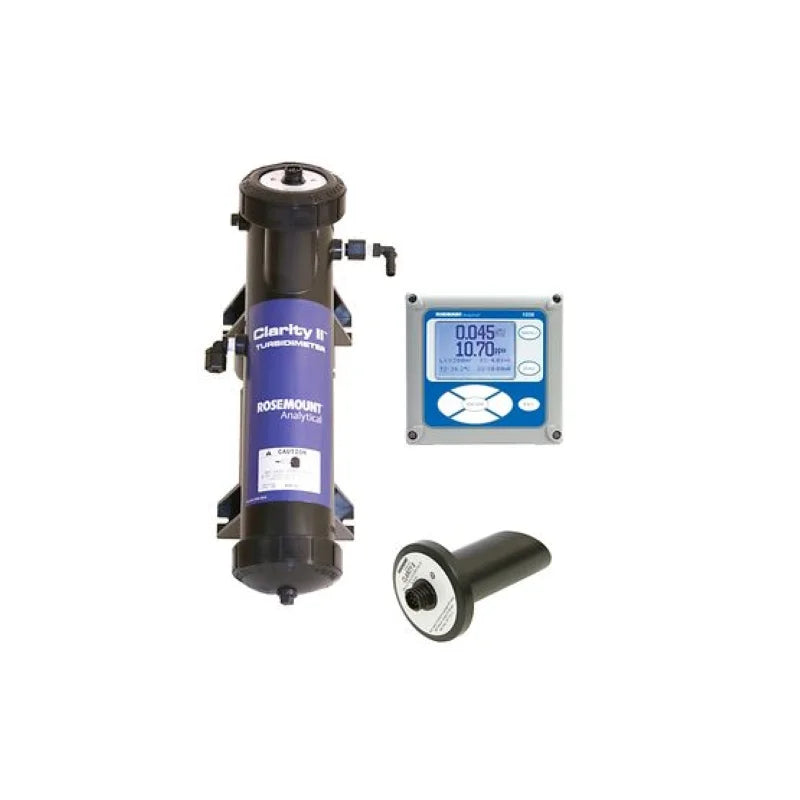

* Complete system includes single or dual input transmitter, turbidity sensor(s), debubbler assembly and cable for each sensor
* ISO METHOD 7027 compliant sensor(s)

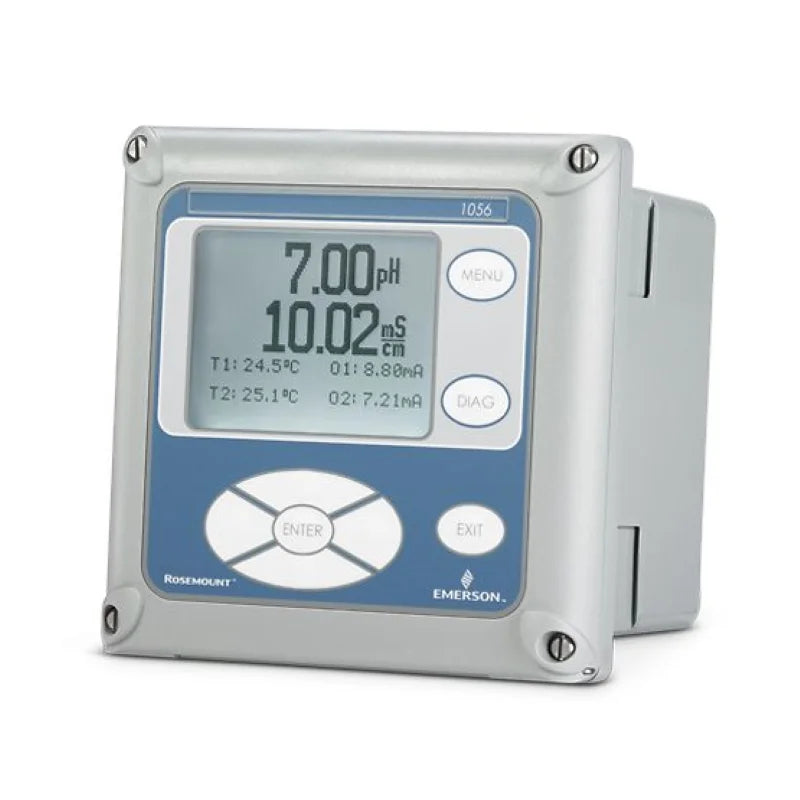

* Full featured transmitter with fully scalable analog outputs and four fully programmable alarms
* Intuitive, user-friendly menu in seven languages makes setup and calibration easy
* ISO METHOD 7027 compliant sensor(s)
* Full featured transmitter with fully scalable analog outputs and four fully programmable alarms
* Intuitive, user-friendly menu in seven languages makes setup and calibration easy
Specification
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
American
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
T1056 Clarity™ II Turbidimeter
|
|
Accuracy
|
Accuracy after calibration at 20.0 NTU: 0-1 NTU: ±2% of reading or ±0.015 NTU, whichever is greater. 0-20 NTU: ±2% of reading.
|
|
Enclosure Rating
|
Polycarbonate. Type 4X/CSA 4 (IP65)
|
|
Dimensions
|
Overall 155 X 155 X 131 mm (6.10 X 6.10 X 5.15 in.) Cutout: 1/2 DIN 139mm (5.45 x 5.45 in.)
|
|
Calibration Options
|
User-prepared turbidity standard, commercially prepared turbidity standard, or grab sample
|
|
Measurement Range
|
0-200 NTU
|
|
Resolution
|
0.001 NTU
|
