Overview

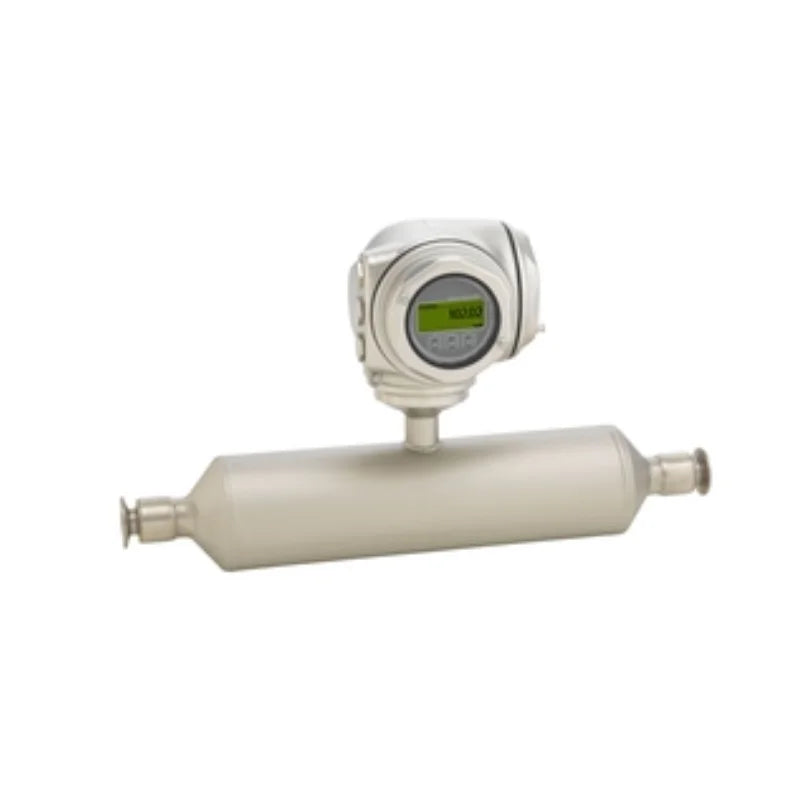

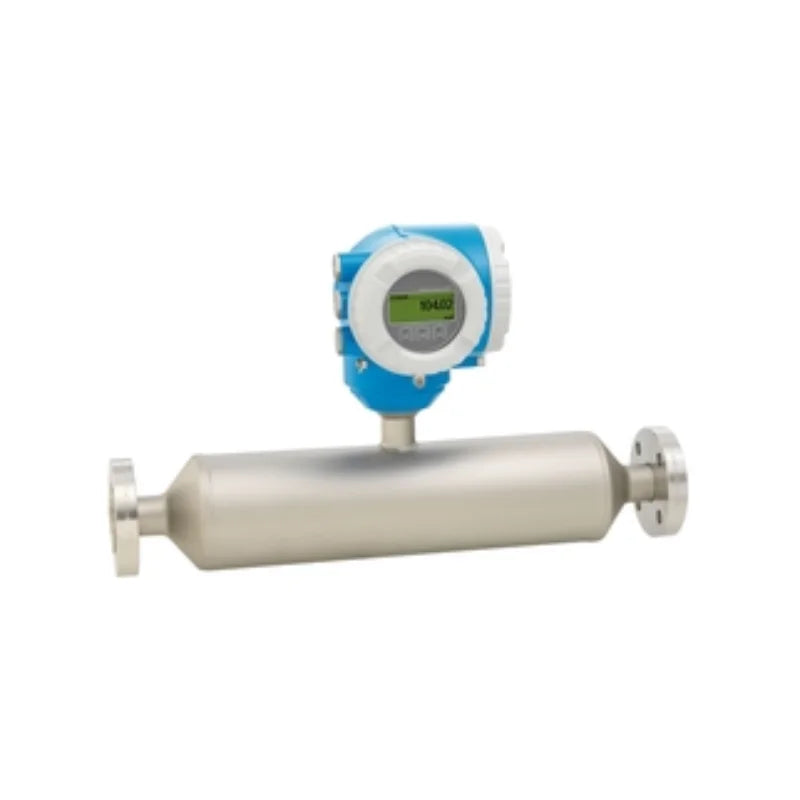

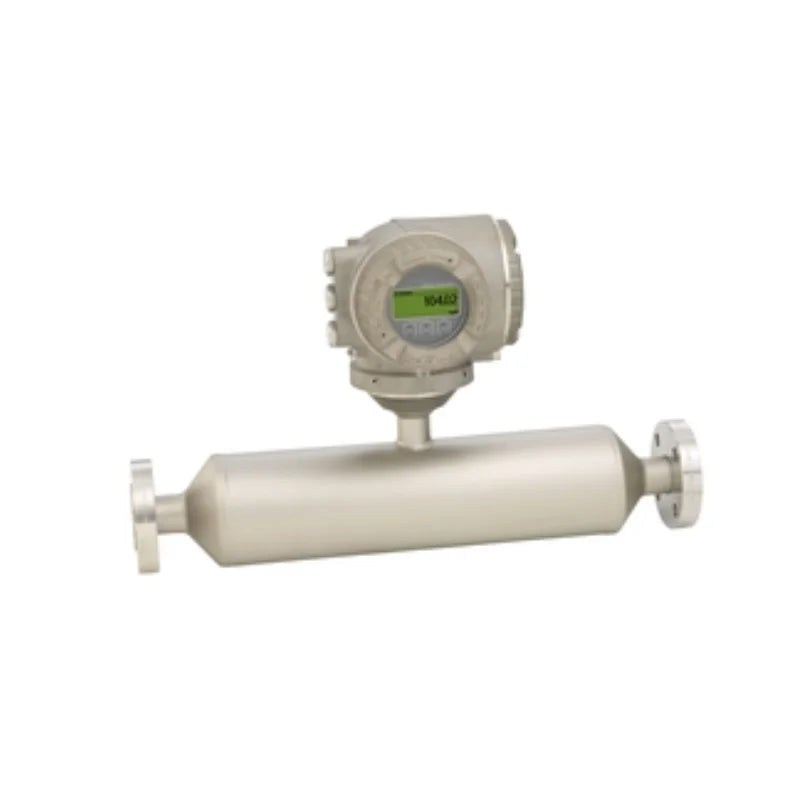

Endress+Hauser 8I3B Proline Promass I300 Coriolis Flowmeter combines in-line viscosity and flow measurement with a compact, easily accessible transmitter.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 180 000 kg/h (0 to 6600 lb/min)
* Medium temperature range
–50 to +150 °C (–58 to +302 °F)
* Max. process pressure
PN 100, Class 600, 63K
* Wetted materials
Measuring tube: Titanium grade 9
Connection: Titanium grade 2
Field of application
The straight single-tube design of Promass I provides in-line viscosity measurement in addition to mass flow, density and temperature measurement. With its compact transmitter Promass I 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
Device properties
* Straight, easy-to-clean single-tube system
* TMB technology
* Measuring tube made of Titanium
* Compact dual-compartment housing with up to 3 I/Os
* Backlit display with touch control and WLAN access
* Remote display available
Benefits
* Energy-saving – full bore design enables minimal pressure loss
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in-/outlet run needs
* Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
* Reduced complexity and variety – freely configurable I/O functionality
* Integrated verification – Heartbeat Technology
Specification
| item | value |
| Warranty | 1 Year |
| Customized support | OEM |
| Place of Origin | Switzerland |
| Brand Name | Endress+Hauser |
| Model Number | Promass I300 |
| Type | Coriolis meters, Coriolis flowmeter |
| Measuring Principle |
Coriolis |
| Product Headline | Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment. |
| Sensor Features | Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium. |
| Transmitter Features | Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. |
| Nominal Diameter Range | DN 8 to 80 (⅜ to 3") |
| Wetted Materials | Measuring tube: Titanium grade 9 Connection: Titanium grade 2 |
| Measured Variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity |
| Max. Measurement Error | Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³ |
| Measuring Range | 0 to 180 000 kg/h (0 to 6600 lb/min) |
| Max. Process Pressure | PN 100, Class 600, 63K |
| Medium Temperature Range | –50 to +150 °C (–58 to +302 °F) |
| Ambient Temperature Range | Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
| Sensor Housing Material | 1.4301 (304), corrosion resistant |
| Transmitter Housing Material | Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304) |
| Degree Of Protection | Standard: IP66/67, type 4X enclosure Option: IP69 |
| Display/Operation | 4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available |
| Outputs | 3 outputs: 4-20 mA HART (active/passive) 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Relay output |
| Inputs | Status input 4-20 mA input |
| Digital Communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Power Supply | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Hazardous Area Approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC |
| Product Safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological Approvals And Certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Marine Approvals And Certificates | PED, CRN |
| Material Certificates | 3.1 material |
| Hygienic approvals and certificates | 3-A, EHEDG, cGMP |
