Overview

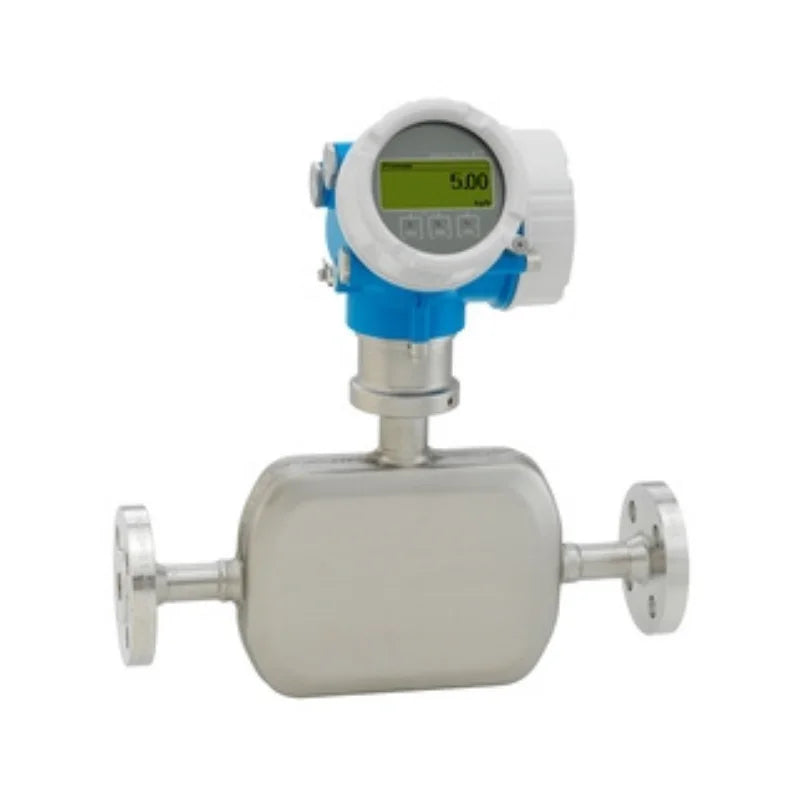

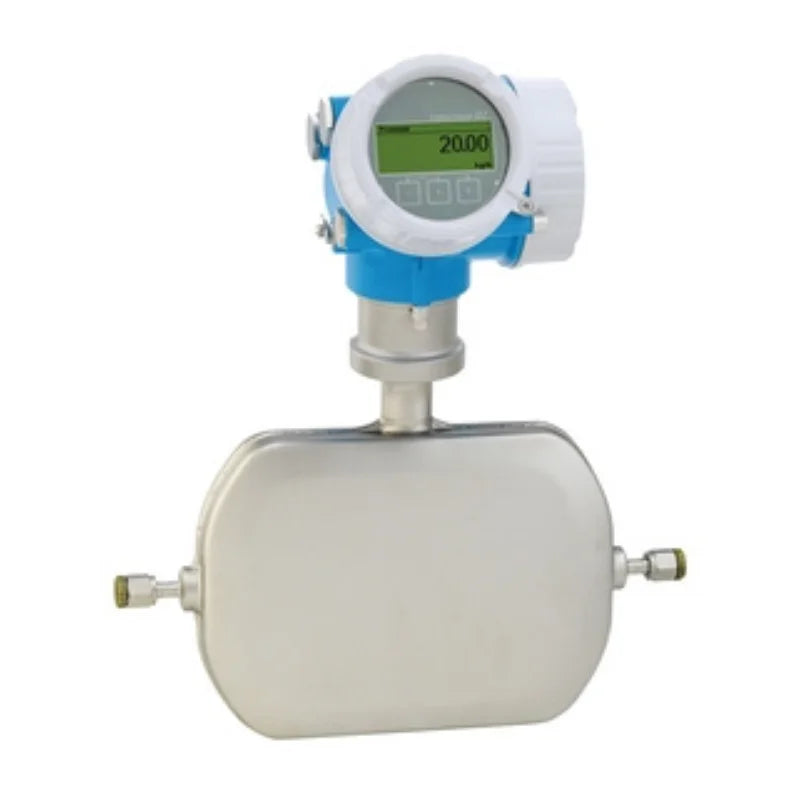

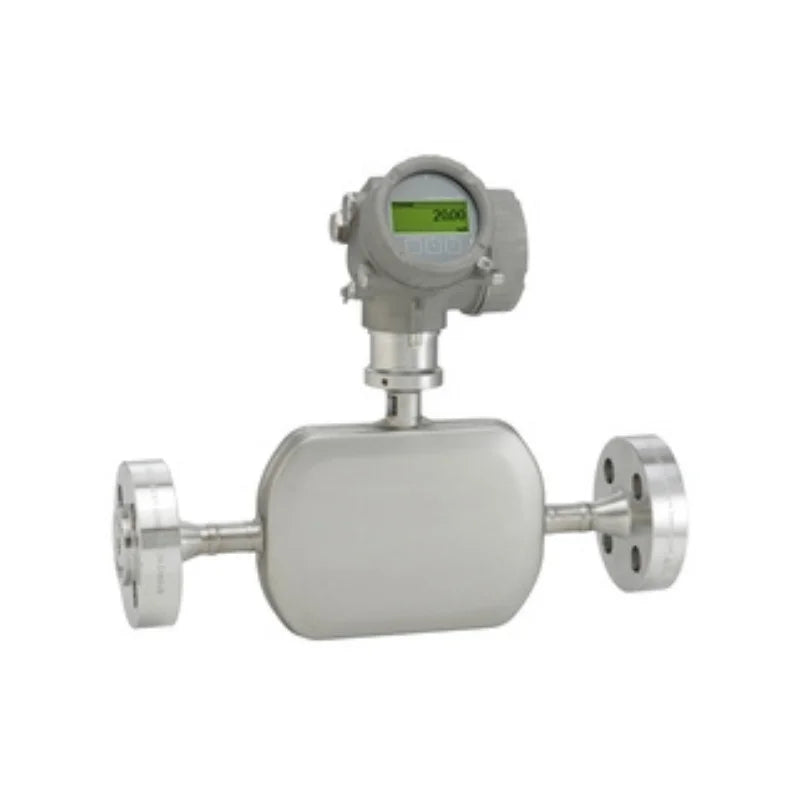

Genuine loop-powered flowmeter for accurate measurement of lowest flow rates.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 450 kg/h (0 to 16.54 lb/min)
* Medium temperature range
-50 to 205 °C (-58 to 401 °F)
* Max. process pressure
430.9 bar (6250 psi)
* Wetted materials
Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 450 kg/h (0 to 16.54 lb/min)
* Medium temperature range
-50 to 205 °C (-58 to 401 °F)
* Max. process pressure
430.9 bar (6250 psi)
* Wetted materials
Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22
Application
The compact Promass A is ideal for continuous process control in demanding applications. Its unique self-drainable single-tube system enables accurate measurement of liquids and gases at lowest flow rates and high pressure. With its cost-effective genuine loop-powered technology and intrinsically safe design (Ex ia), Promass A 200 offers highest operational safety in hazardous areas.Heartbeat Technology enables safe processes.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Suitable for applications with smallest flow quantities in the chemical industry.
Device properties
* Nominal diameter: DN 1 to 4 (1/24 to 1/8")
* Process pressure up to 430.9 bar (6250 psi)
* Medium temperature up to +205 °C (+401 °F)
* Loop-powered technology
* Robust dual-compartment housing
* Plant safety: worldwide approvals (SIL, Haz. area)
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Suitable for applications with smallest flow quantities in the chemical industry.
Device properties
* Nominal diameter: DN 1 to 4 (1/24 to 1/8")
* Process pressure up to 430.9 bar (6250 psi)
* Medium temperature up to +205 °C (+401 °F)
* Loop-powered technology
* Robust dual-compartment housing
* Plant safety: worldwide approvals (SIL, Haz. area)
Benefits
* Space-saving installation – compact, lightweight sensor
* Highest product quality – self-drainable measuring tube design in all line sizes
* Optimum process safety – resistant to corrosive ambient conditions and internal clogging
* Convenient device wiring – separate connection compartment
* Safe operation – no need to open the device due to display with touch control, background lighting
* Integrated verification – Heartbeat Technology
* Highest product quality – self-drainable measuring tube design in all line sizes
* Optimum process safety – resistant to corrosive ambient conditions and internal clogging
* Convenient device wiring – separate connection compartment
* Safe operation – no need to open the device due to display with touch control, background lighting
* Integrated verification – Heartbeat Technology
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Swaziland
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Proline Promass A200
|
|
Type
|
Coriolis meters, Coriolis flowmeter
|
|
Measuring Principle
|
Coriolis
|
|
Product Headline
|
Genuine loop-powered flowmeter for accurate measurement of lowest flow rates.
Suitable for applications with smallest flow quantities in the chemical industry. |
|
Sensor Features
|
Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all
line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi). Medium temperature up to +205 °C (+401 °F). |
|
Transmitter Features
|
Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch
control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area). |
|
Nominal Diameter Range
|
DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
|
|
Wetted Materials
|
Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22
|
|
Measured Variables
|
Mass flow, density, temperature, volume flow, corrected volume flow, reference density
|
|
Max. Measurement Error
|
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³ |
|
Measuring Range
|
0 to 450 kg/h (0 to 16.54 lb/min)
|
|
Max. Process Pressure
|
430.9 bar (6250 psi)
|
|
Medium Temperature Range
|
-50 to 205 °C (-58 to 401 °F)
|
|
Ambient Temperature Range
|
-40 to 60 °C (-40 to +140 °F)
|
|
Sensor Housing Material
|
Stainless steel, 1.4404 (316L)
|
|
Transmitter Housing Material
|
Stainless steel, CF-3M (316L, 1.4404)
AlSi10MG, coated |
|
Degree Of Protection
|
IP66/67, Type 4X enclosure
|
|
Display/Operation
|
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible Remote display available |
|
Outputs
|
4‐20 mA HART (passive)
4‐20 mA (passive) Pulse/frequency/switch output (passive) |
|
Inputs
|
None
|
|
Digital Communication
|
HART, PROFIBUS PA, FOUNDATION Fieldbus
|
|
Power Supply
|
DC 18 to 35 V (4‐20 mA HART with/without
pulse/frequency/switch) DC 18 to 30 V (20 mA HART, 4‐20 mA) DC 9 to 32 V (PROFIBUS PA) |
|
Hazardous Area Approvals
|
ATEX, IECEx, cCSAus, INMETRO, NEPSI, UK Ex
|
|
Product Safety
|
CE, C-TICK
|
|
Functional Safety
|
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
|
|
Metrological Approvals And Certificates
|
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
|
Hygienic Approvals And Certificates
|
3-A, cGMP
|
|
Pressure Approvals And Certificates
|
PED, CRN
|
|
Material Certificates
|
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK |
