Overview

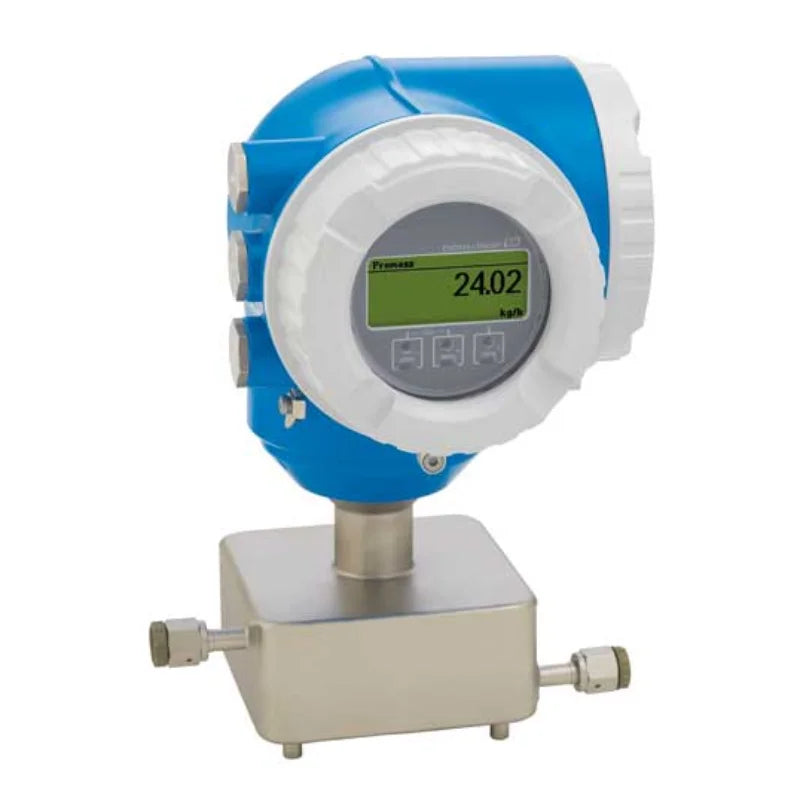

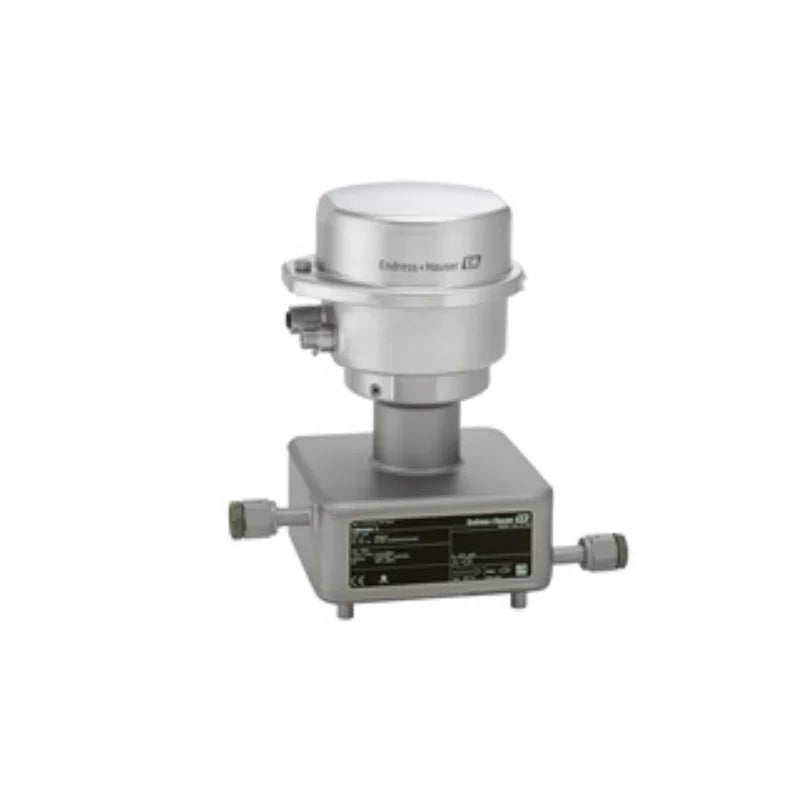

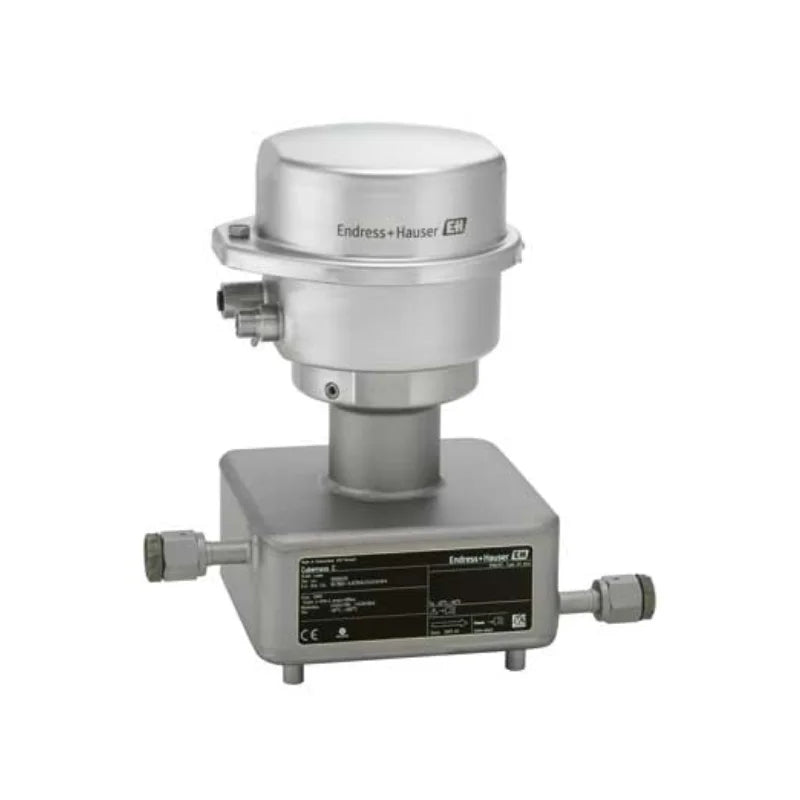

Endress+Hauser 8C1B Proline Cubemass C100 Coriolis Flowmeter is a compact sensor for smallest quantities with an ultra-compact transmitter.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm3
* Measuring range
0 to 1000 kg/h (0 to 37 lb/min)
* Medium temperature range
–50 to +205 °C (–58 to +401 °F)
* Max. process pressure
PN 40, Class 300, 10K, 400 bar (5800 psi)
* Wetted materials
Measuring tube: 1.4539 (904L)
Connection: 1.4539 (904L); 1.4404 (316/316L)
Field of application
Cubemass C is the ideal sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics. Neither high pressure nor alternating flow conditions compromise its accuracy. The ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration. Heartbeat Technology enables measurement reliability and compliant
verification.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Measuring accurately smallest quantities of liquids and gases.
Device properties
* Nominal diameter: DN 1 to 6 (1/24 to 1/4")
* Process pressure up to 400 bar (5800 psi)
* Medium temperature up to +205 °C (+401 °F)
* Robust, ultra-compact transmitter housing
* Pre‐configured plug connector
* Local display available
Benefits
* Space-saving installation – compact single-tube design
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Suitable for skids – lightweight sensor
* Space-saving transmitter – full functionality on the smallest footprint
* Time-saving local operation without additional software and hardware – integrated web server
* Integrated verification – Heartbeat Technology
Specification
| item | value |
| Warranty | 1 Year |
| Customized support | OEM |
| Place of Origin | Swaziland |
| Brand Name | Endress+Hauser |
| Model Number | Proline Promass A300 |
| Type | Coriolis meters, Coriolis flowmeter |
| Measuring Principle | Coriolis |
| Product Headline | Compact sensor for smallest quantities with an ultra-compact transmitter. Measuring accurately smallest quantities of liquids and gases. |
| Sensor Features | Space-saving installation – compact single-tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Suitable for skids – lightweight sensor. Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄"). Process pressure up to 400 bar (5800 psi). Medium temperature up to +205 °C (+401 °F). |
| Transmitter Features | Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. Pre‐configured plug connector. Local display available. |
| Nominal Diameter Range | DN 1 to 6 (¹⁄₂₄ to ¹⁄₄") |
| Wetted Materials | Measuring tube: 1.4539 (904L) Connection: 1.4539 (904L); 1.4404 (316/316L) |
| Measured Variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
| Max. Measurement Error | Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.5 % Density (liquid): ±0.0005 g/cm3 |
| Measuring Range | 0 to 1000 kg/h (0 to 37 lb/min) |
| Max. Process Pressure | PN 40, Class 300, 10K, 400 bar (5800 psi) |
| Medium Temperature Range | -50 to 205 °C (-58 to 401 °F) |
| Ambient Temperature Range | Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
| Sensor Housing Material | 1.4301 (304), corrosion resistant |
| Transmitter Housing Material | Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304) |
| Degree Of Protection | Standard: IP66/67, type 4X enclosure |
| Display/Operation | 4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible |
| Outputs | 4‐20 mA HART (active) Pulse/frequency/switch output (passive) |
| Inputs | None |
| Digital Communication | HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET |
| Power Supply | DC 20 to 30 V |
| Hazardous Area Approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI |
| Product Safety | CE, C-TICK |
| Metrological Approvals And Certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Pressure Approvals And Certificates | CRN |
| Material Certificates | 3.1 material |
