Overview

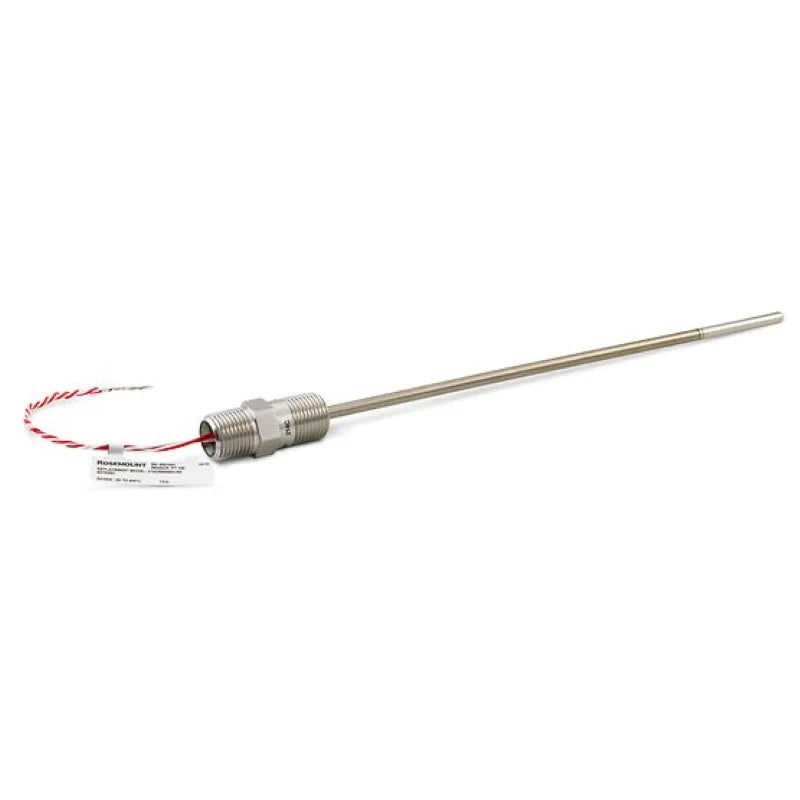

Rosemount™ 214C RTD Temperature SensorThe Rosemount 214C RTD Temperature Sensor is a Pt-100, single or dual element resistant temperature detector (RTD) that covers a wide range of temperatures, from -321 to 1112°F (-196 to 600°C). An exceptional solution, this sensor has a thin-film and
wire-wound design for application flexibility. With many calibration options, including Class A or B sensor accuracy, this sensor
also offers Callendar-Van Dusen constants for transmitter-sensor matching to provide the highest level of accuracy.
wire-wound design for application flexibility. With many calibration options, including Class A or B sensor accuracy, this sensor
also offers Callendar-Van Dusen constants for transmitter-sensor matching to provide the highest level of accuracy.
Benefits

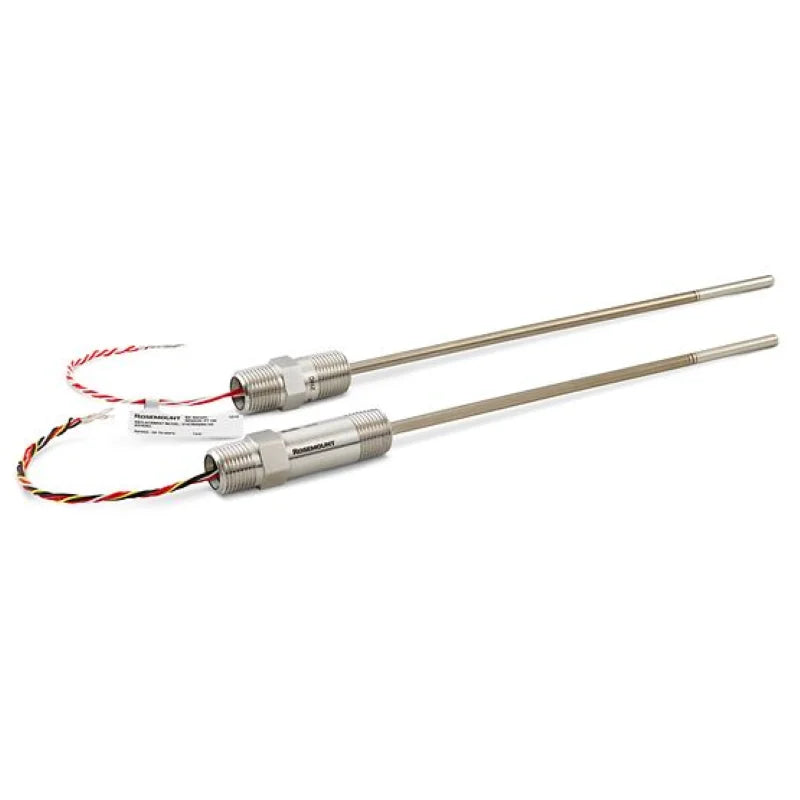

* Single or dual element Pt-100 RTD with thin-film or wire-wound designs meets various application requirements
* Thin film sensor engineered to withstand high vibration industrial applications
* Wire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperatures
* Covers a wide range of temperatures from –321 to 1112°F (–196 to 600°C) for application flexibility
* Callendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracy
* Optional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standards

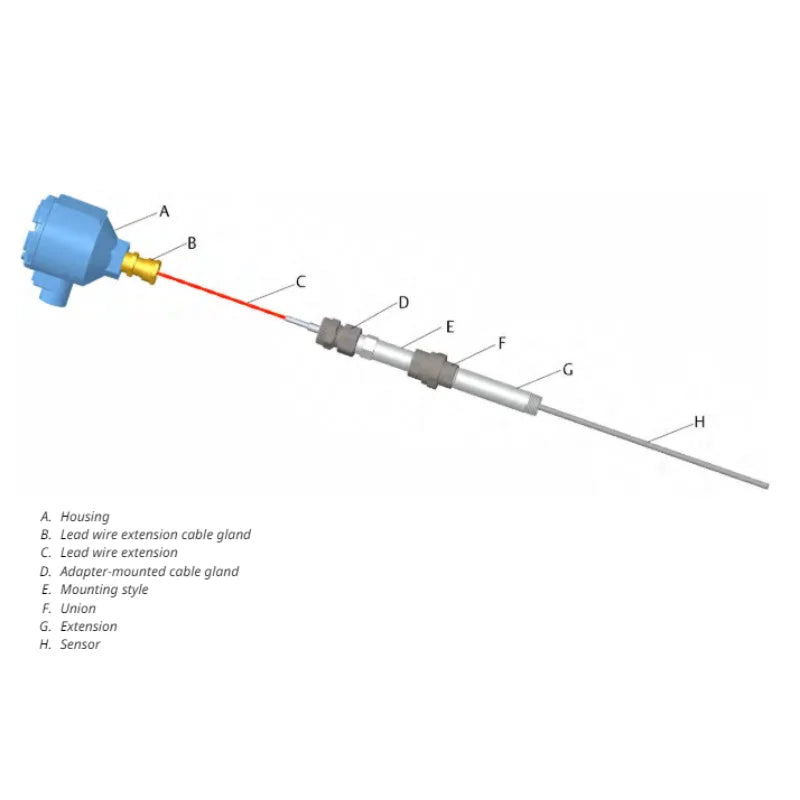

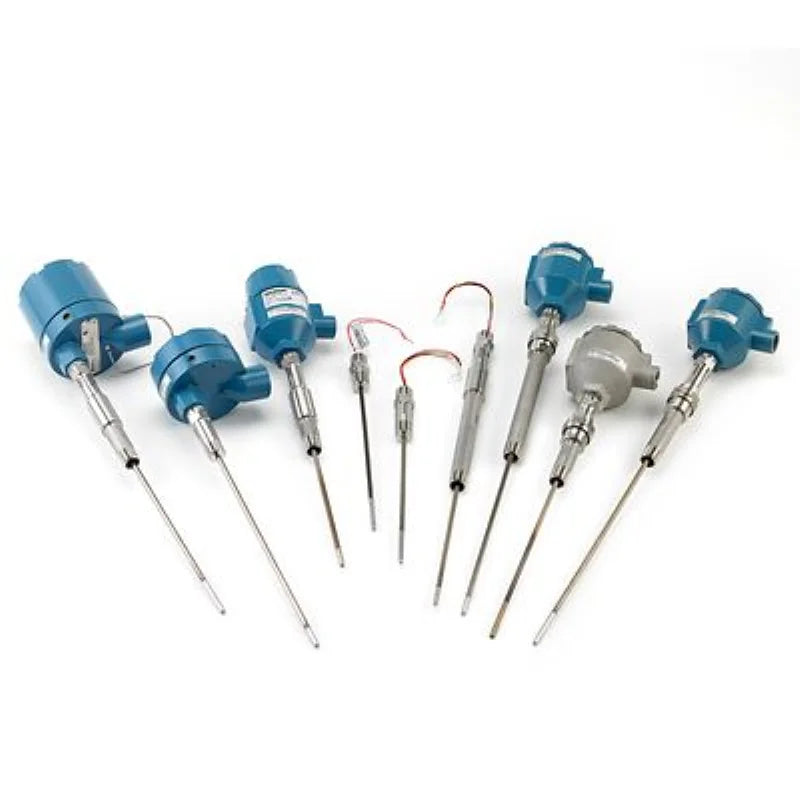

* Adaptable design with a variety of enclosure and connection head options meet varying application demands
* Includes spring-loaded or compact spring-loaded mounting styles for adaptability
* North American approvals meet hazardous location requirements
* Thin film sensor engineered to withstand high vibration industrial applications
* Wire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperatures
* Covers a wide range of temperatures from –321 to 1112°F (–196 to 600°C) for application flexibility
* Callendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracy
* Optional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standards
* Adaptable design with a variety of enclosure and connection head options meet varying application demands
* Includes spring-loaded or compact spring-loaded mounting styles for adaptability
* North American approvals meet hazardous location requirements
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
214C RTD
|
|
Theory
|
Rosemount™ 214C RTD Temperature Sensor
|
|
Material
|
Aluminum/Stainless steel
|
|
Type
|
Temperature Transmitter
|
|
Display
|
LCD display
|
|
Temperature Range
|
For wire-wound element, 0.05 °C (0.020 ) maximum ice-point resistance shift after 1g vibration between 20 and 500 Hz for 150 hours
according to IEC 60751:2008 |
|
Lead Wires
|
24 AWG wire, FEP insulated; color coded per IEC 60751
|
|
Time Constant / Response
|
10.8 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 60751:2008
|
|
Stability
|
±0.15 °C (0.059 ) maximum ice-point resistance shift following 1,000 hours at maximum specified temperature when measured per
methods defined in IEC 60751:2008 |
|
Insulation Resistance
|
1000 MΩ minimum insulation resistance when measured at 500 VDC at room temperature
|
|
Calibration Options
|
IEC 751 Class A or B; Single point calibration; Calibration schedule or customer-specified calibration range, both with
Callendar-Van Dusen constants |
