Overview
For standard hygienic and aseptic applications in the Food & Beverages and Life Sciences industries.
Specs at a glance
Accuracy
class A acc. to IEC 60751
Response time
depending on configuration
Max. process pressure (static)
at 20 °C: 40 bar (580 psi)
Operating temperature range
PT100:
-50 °C … 200 °C
(-58 °F … 392 °F)
Max. immersion length on request
up to 15.5" (317,5mm)
others on request
Accuracy
class A acc. to IEC 60751
Response time
depending on configuration
Max. process pressure (static)
at 20 °C: 40 bar (580 psi)
Operating temperature range
PT100:
-50 °C … 200 °C
(-58 °F … 392 °F)
Max. immersion length on request
up to 15.5" (317,5mm)
others on request

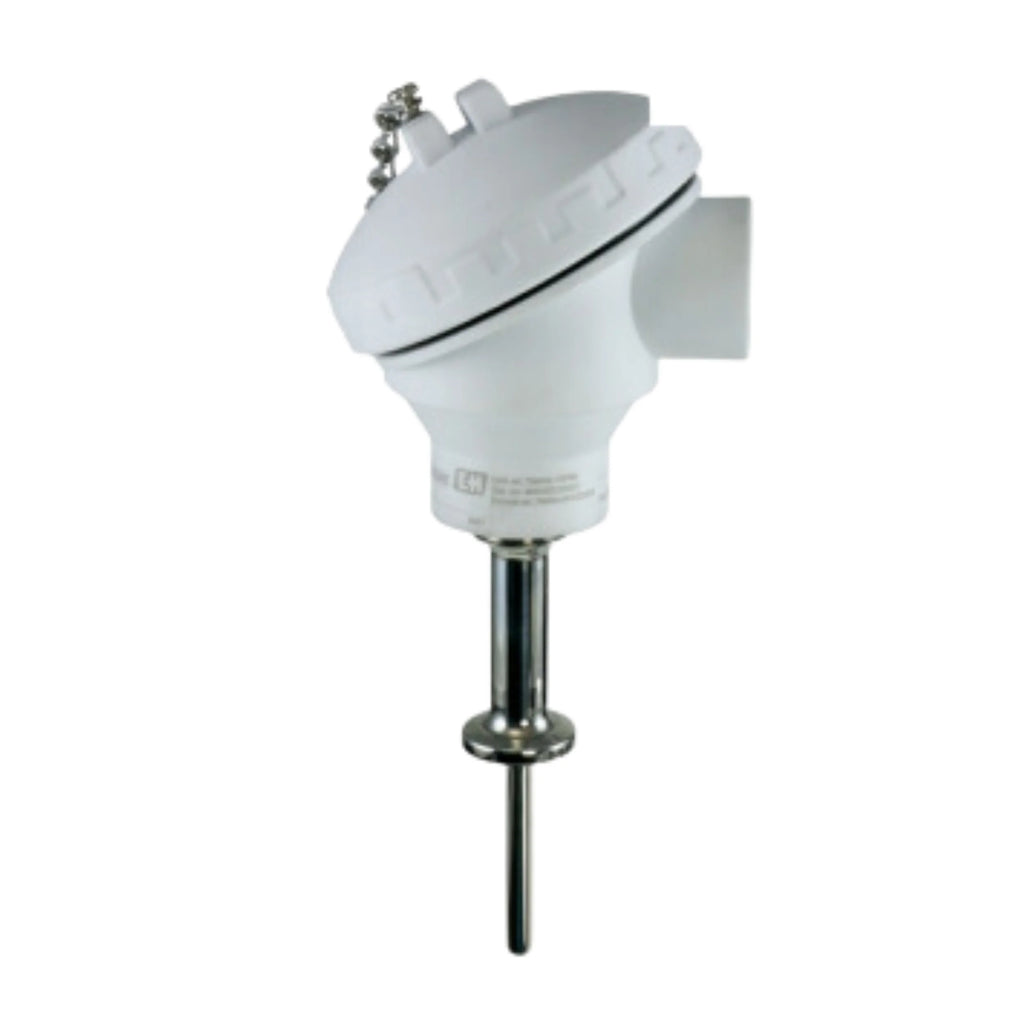

iTHERM TM402 Imperial Hygienic Thermometer, US style
Field of application
This iTHERM thermometer has been designed to meet the basic requirements of the Food & Beverages and Life Sciences industries at
the best price. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by
simple and fast product selection. The device uses basic technology with features such as a fixed, non-replaceable insert, a wide
range of process connections and international certification at an excellent value for money.
the best price. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by
simple and fast product selection. The device uses basic technology with features such as a fixed, non-replaceable insert, a wide
range of process connections and international certification at an excellent value for money.
Benefits
* Excellent value for money and fast delivery
* User-friendly and reliable from product selection to maintenance
* International certification: hygiene standards as per 3-A® , EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
* Wide range of process connections
* Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
* Measuring range: –50 to +200 °C (–8 to +392 °F)
* Pressure range up to 40 bar (580 psi)
* Protection class: up to IP69K
* Can be used in non-hazardous areas
* Measuring range: –50 to +200 °C (–8 to +392 °F)
* Pressure range up to 40 bar (580 psi)
* Protection class: up to IP69K
* Can be used in non-hazardous areas
Specification
|
Brand Name
|
ENDRESS+HAUSER
|
|
Model Number
|
TM402
|
|
Theory
|
Temperature Transmitter
|
|
Material
|
316L
|
|
Type
|
Temperature Transmitter
|
|
Measuring range
|
-50 to +200 °C (-8 to +392 °F)
|
|
Pressure range
|
up to 40 bar (580 psi)
|
|
Protection class
|
up to IP69K
|
|
Max. process pressure (static)
|
at 20 °C: 40 bar (580 psi)
|
|
Operating temperature range
|
PT100: -50 °C ... 200 °C (-58 °F ... 392 °F)
|
|
Max. immersion length on request
|
up to 15.5" (317,5mm)
others on request |
|
Measuring principle
|
Resistance Temperature Detector
|
|
Characteristic / Application
|
imperial style
hygienic applications aseptic applications hygienic process connections with neck |
|
Thermowell / protection tube
|
without (direct immersion)
|
|
Insert / probe
|
without exchangeable insert
|
|
Outer diameter protection tube / Insert
|
1/4'' (6,35 mm)
3/8'' (9,53 mm) |
|
Max. immersion length on request
|
up to 15.5" (317,5mm)
others on request |
|
Material protection tube/ thermowell
|
316L
|
|
Process connection
|
Triclamp
Clamp-connections according to ISO2852 G3/4" Liquiphant G1" Liquiphant Varivent |
|
Tip shape
|
straight
reduced |
|
Surface roughness Ra
|
30 μin (0,76 μm)
15 μin (0,38 μm) |
|
Operating temperature range
|
PT100:
-50 °C … 200 °C (-58 °F … 392 °F) |
|
Accuracy
|
class A acc. to IEC 60751
|
|
Integration head transmitter
|
yes (4 ... 20 mA, HART)
|
|
Certification
|
SIL (transmitter only)
|
