Overview

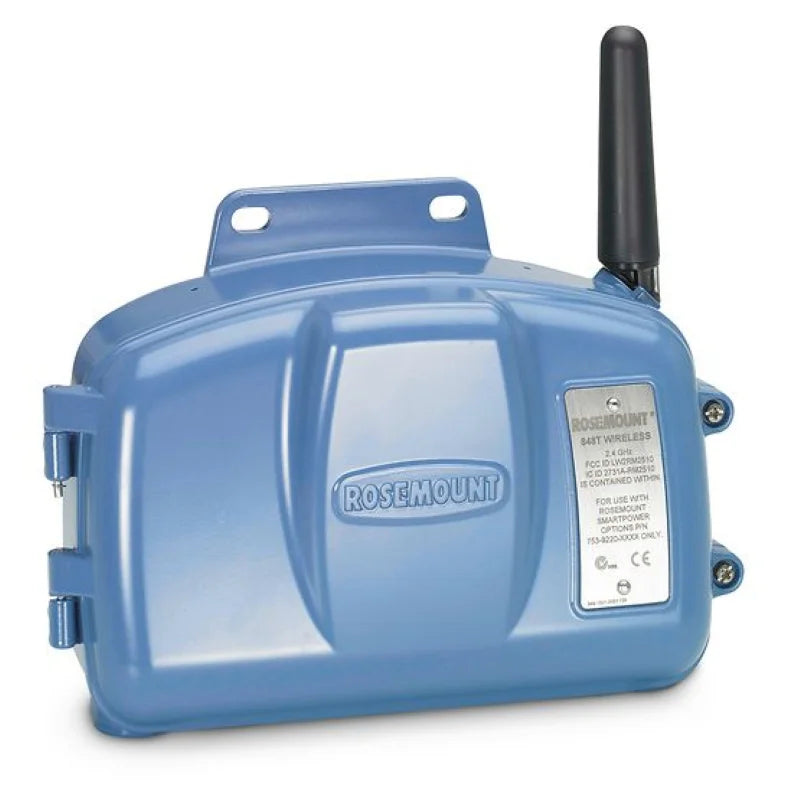

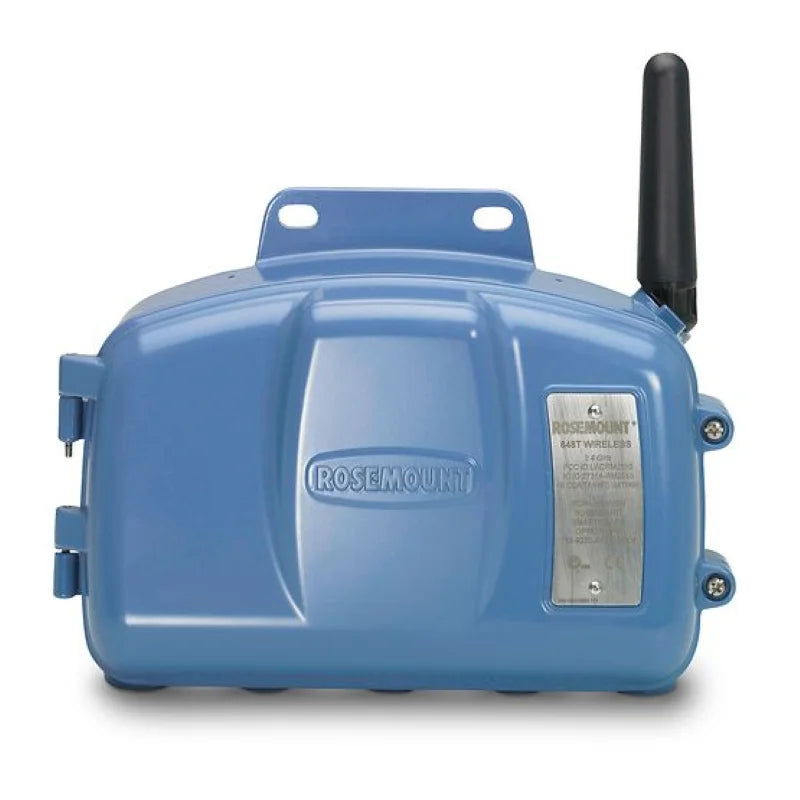

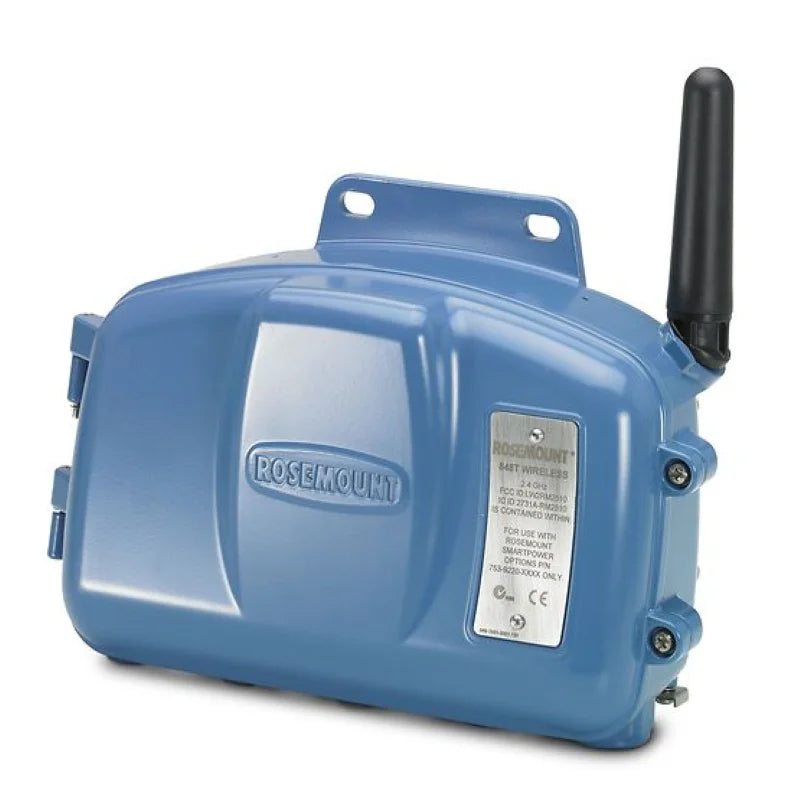

Rosemount 848T Wireless Temperature Transmitter is the premier choice for high density measurements via a WirelessHART®device. This transmitter accepts up to four independently configurable inputs, dramatically reducing your installation and operational costs per point through the use of a smart, reliable and secure wireless network. Additionally, the field-hardened enclosure allows for installation close to any process, even in hazardous areas.
Benefits
* WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
* Best price per point solution accepts four configurable inputs (RTD, thermocouple, ohm, millivolt and 4 to 20 mA signals)
* Field-hardened enclosure allows for installation close to any process, even in harsh environments and hazardous areas
* Extended range antenna offers wireless communication for long distance installations
* Designed with up to eight configurable alerts for advanced measurement monitoring
* Device dashboards display an easy interface for simplified device configuration and diagnostic troubleshooting
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring
* Best price per point solution accepts four configurable inputs (RTD, thermocouple, ohm, millivolt and 4 to 20 mA signals)
* Field-hardened enclosure allows for installation close to any process, even in harsh environments and hazardous areas
* Extended range antenna offers wireless communication for long distance installations
* Designed with up to eight configurable alerts for advanced measurement monitoring
* Device dashboards display an easy interface for simplified device configuration and diagnostic troubleshooting
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
848T
|
|
Theory
|
Temperature Sensor, Temperature Transmitter, Temperature Recorder
|
|
Type
|
Wireless Temperature Transmitter
|
|
Output Signal
|
WirelessHART Protocol
|
|
Housing
|
Field hardened aluminum enclosure
|
|
Calibration Options
|
5-point calibration
|
|
Certifications/Approvals
|
Hazardous location, marine type, see full specs for complete list
|
|
Update Rate
|
4 sec. to 60 min., user selectable
|
|
Power Module Life
|
Up to 10-year life, field replaceable (order separately)
|
|
Antenna Type
|
External (standard and extended range)
|
|
Ambient temperature limits
|
-40 °F (-40 °C) to 185 °F (85 °C)
|
|
Accuracy
|
(Pt 100 at reference condition: 20 °C) ±0.30 °C (±0.54 °F)
|
|
Turn-on time
|
30 seconds
|
