Overview

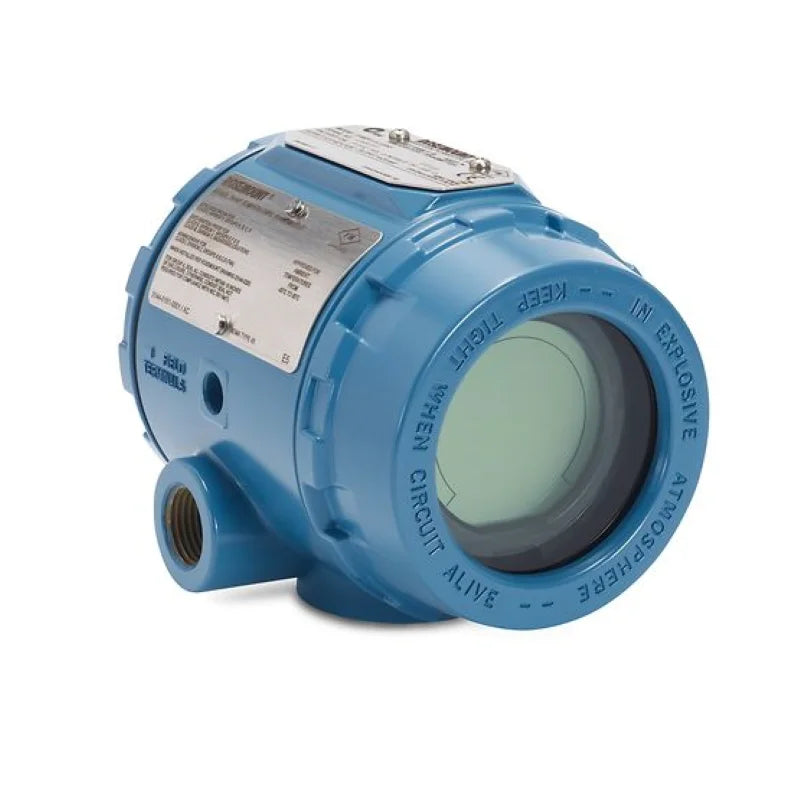

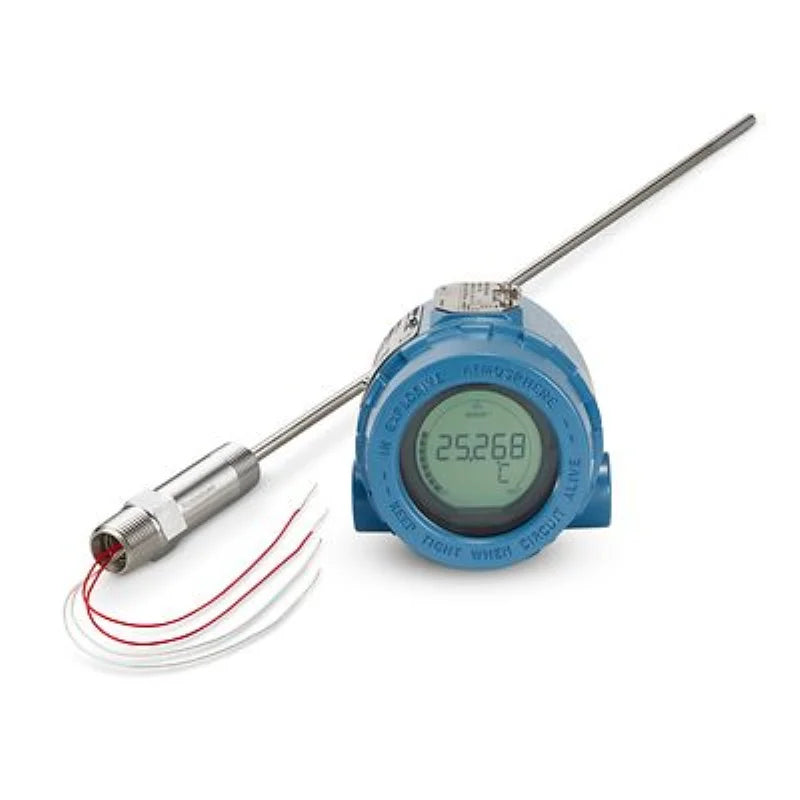

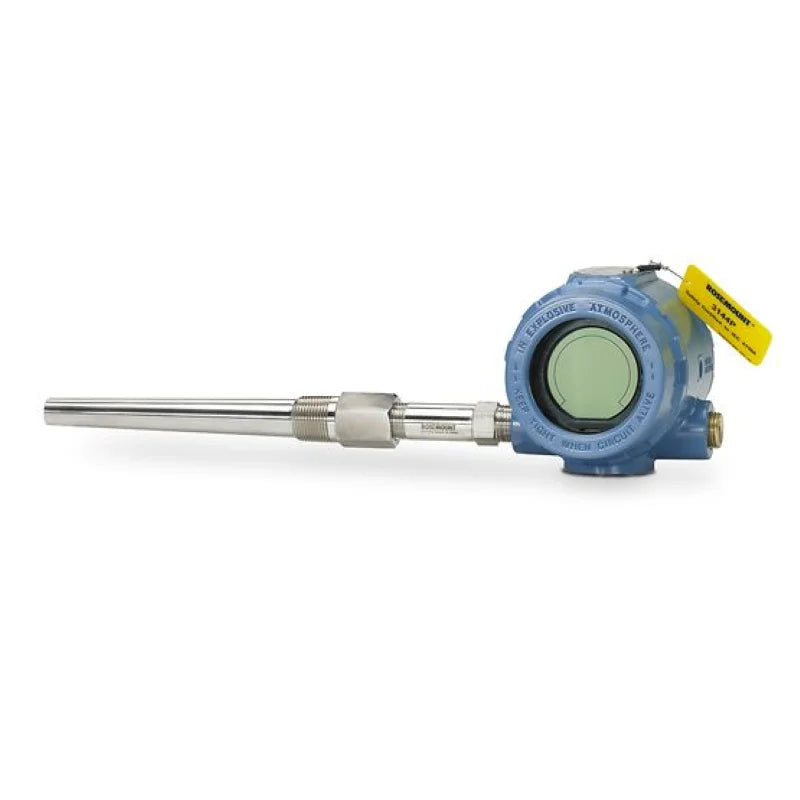

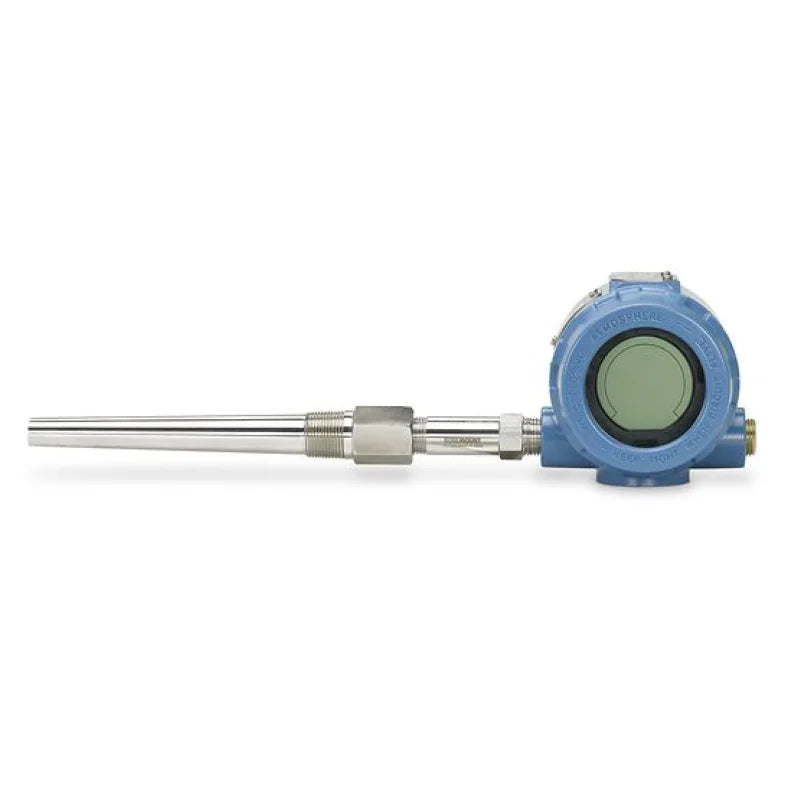

Rosemount™ 3144P Temperature Transmitter
The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can
provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.
provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.
Features
* Industry-leading accuracy and reliability for best performance in critical control and safety applications
* Transmitter-sensor matching improves measurement accuracy up to 75%
* 5-year long-term stability extends calibration intervals to reduce trips to the field

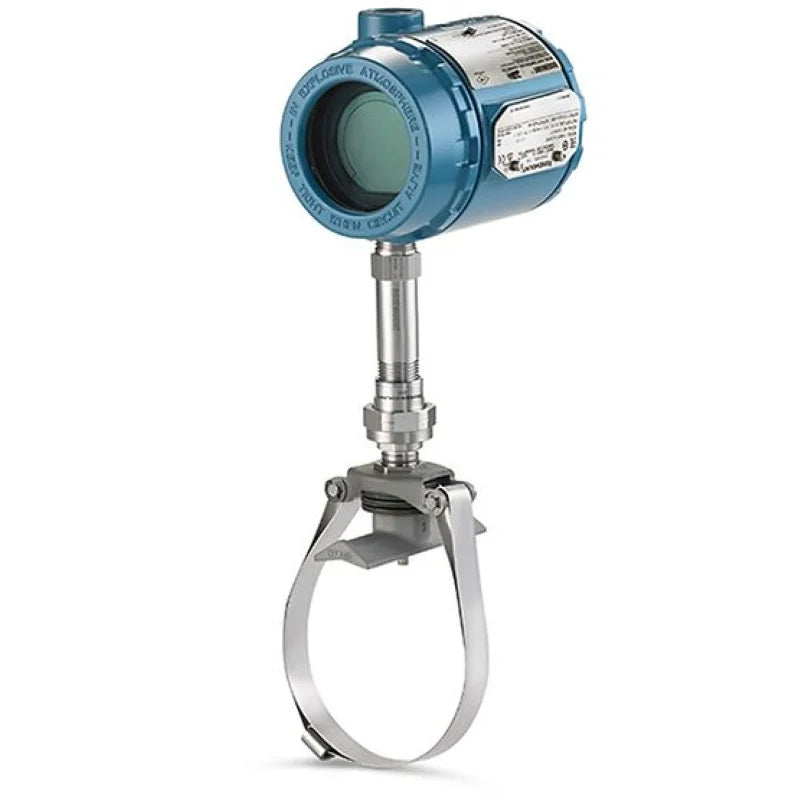

* Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs
* Dual compartment housing provides superior protection in harsh environments
* Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity
* Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure
* Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting
* Transmitter supports multiple protocols for integration in many host environments across many industries
* Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
* Transmitter-sensor matching improves measurement accuracy up to 75%
* 5-year long-term stability extends calibration intervals to reduce trips to the field
* Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs
* Dual compartment housing provides superior protection in harsh environments
* Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity
* Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure
* Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting
* Transmitter supports multiple protocols for integration in many host environments across many industries
* Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
![]()
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
3144P
|
|
Theory
|
Temperature Sensor, Temperature Transmitter, Temperature Recorder
|
|
Material
|
Aluminum/Stainless steel
|
|
Type
|
Temperature Transmitter
|
|
Display
|
LCD display
|
|
Output
|
Two-wire device with either 4-20 mA/HART, linear
|
|
Input/Output Isolation
|
Specified To 500 Vdc At 50/60 Hz.
|
|
Humidity limits
|
0-99 Percent Relative Humidity, Non-Condensing
|
|
Update Time
|
Approximately 0.5 Seconds For A Single Sensor
|
|
Conduit Connections
|
1/2-14-In. Npt/ PG13.5 (PG11),M20 3 1.5 (CM20) JIS G 1/2
|
|
Enclosure Material
|
Low-copper aluminum or CF-8M (cast version of 316 stainless steel)
|
|
Paint Material
|
Polyurethane
|
|
O-rings Material
|
Buna N
|
|
Enclosure ratings
|
Type 4X IP66 and IP68
|
