Overview

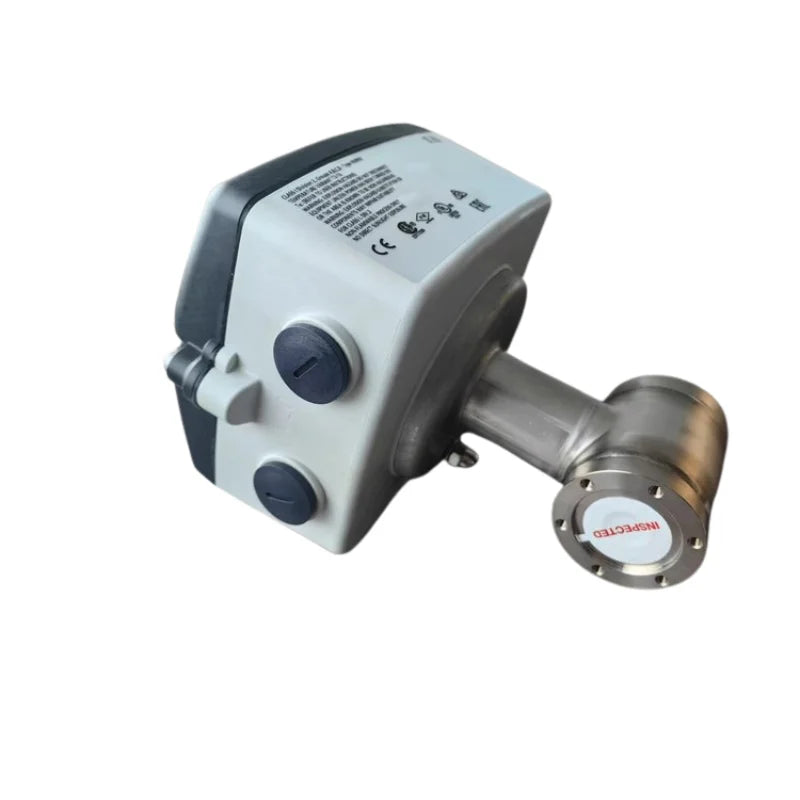

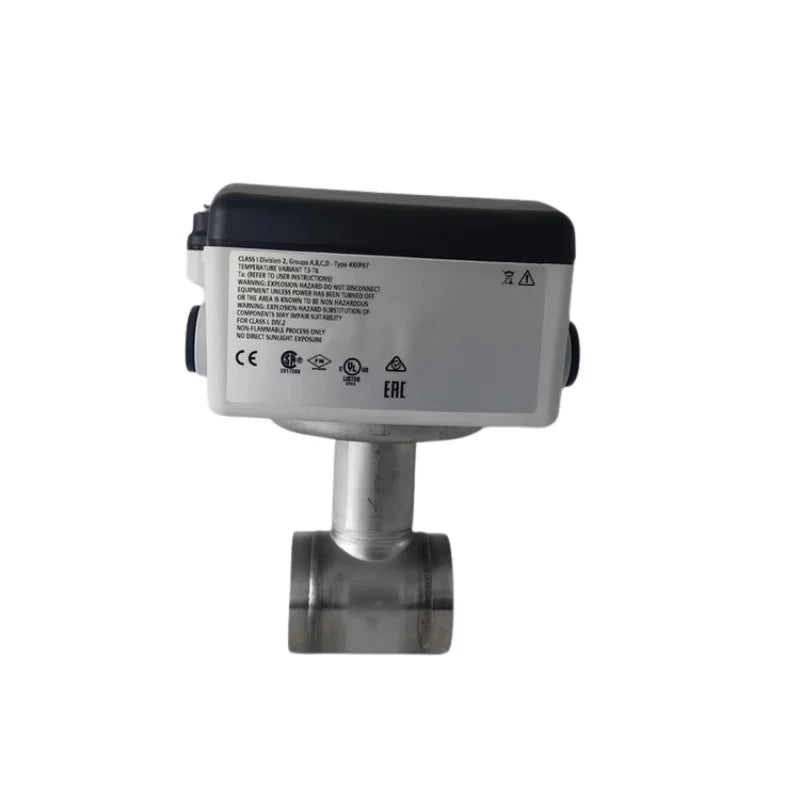

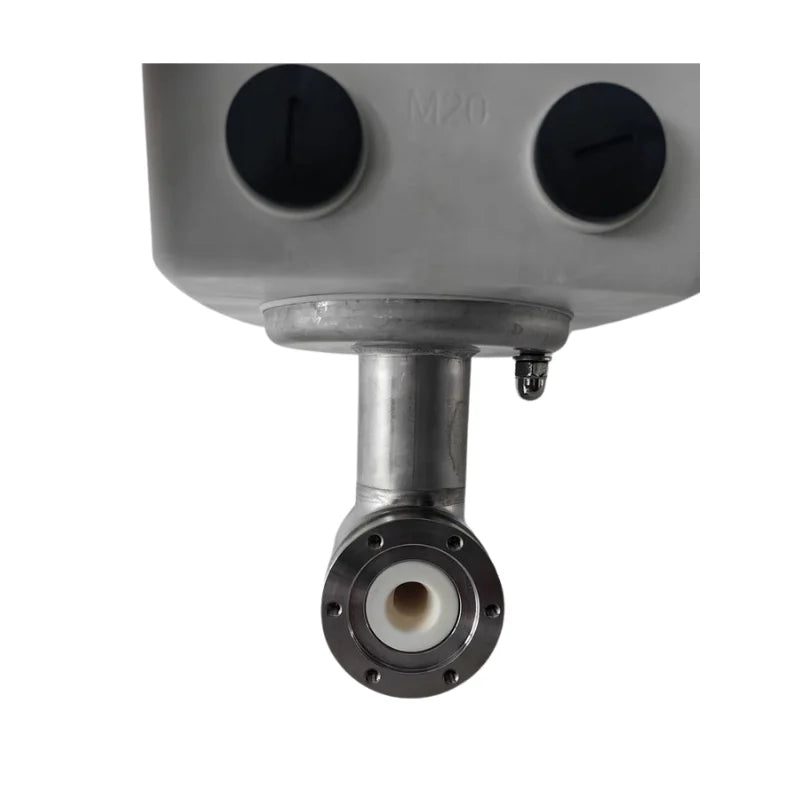

SITRANS FM MAG 1100 is a sensor in stainless steel with highly resistant liners and electrodes which fit even the most extreme process media.
Benefits
* Compact wafer design meets EN 1092, DIN and ANSI flange standards
* Versatile - Highly resistant lining and electrode materials for use with the most extreme process media
* High temperature version available up to 390 °F
* SITRANS FM portfolio - our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG5100 /3100/1100):
• Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple,flexible commissioning of the sensor.
• Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
• "Hot swapable" - exchangeable during operation
• Mounting flexibility - compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
* Versatile - Highly resistant lining and electrode materials for use with the most extreme process media
* High temperature version available up to 390 °F
* SITRANS FM portfolio - our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG5100 /3100/1100):
• Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple,flexible commissioning of the sensor.
• Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
• "Hot swapable" - exchangeable during operation
• Mounting flexibility - compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
Specification
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
SIEMENS
|
|
Model Number
|
SITRANS FM MAG 1100
|
|
Type
|
Electromagnetic Flow Meter
|
|
Meassuring range
|
0 to 10 m/s
|
|
Nominal sizes
|
From DN 2 to DN 100 (1/12" to 4")
|
|
Accuracy
|
0.2 % ±1 mm/s
0.4 % ±1 mm/s (PFA) |
|
Operating pressure
|
Max. 40 bar (Max. 580 psi)
|
|
Ambient temperature
|
From -40 to 100 °C (-40 to 212 °F)
|
|
Medium temperature
|
From -30 to 200 °C (-22 to 390 °F)
|
|
Liners
|
Ceramics
PFA |
|
Electrodes
|
Platinum
Hastelloy |
|
Material
|
Stainless steel AISI 316L (1.4404)
|
|
Approvals
|
ATEX - 2 GD Zone 1, FM Class 1 div 2
|
