Overview

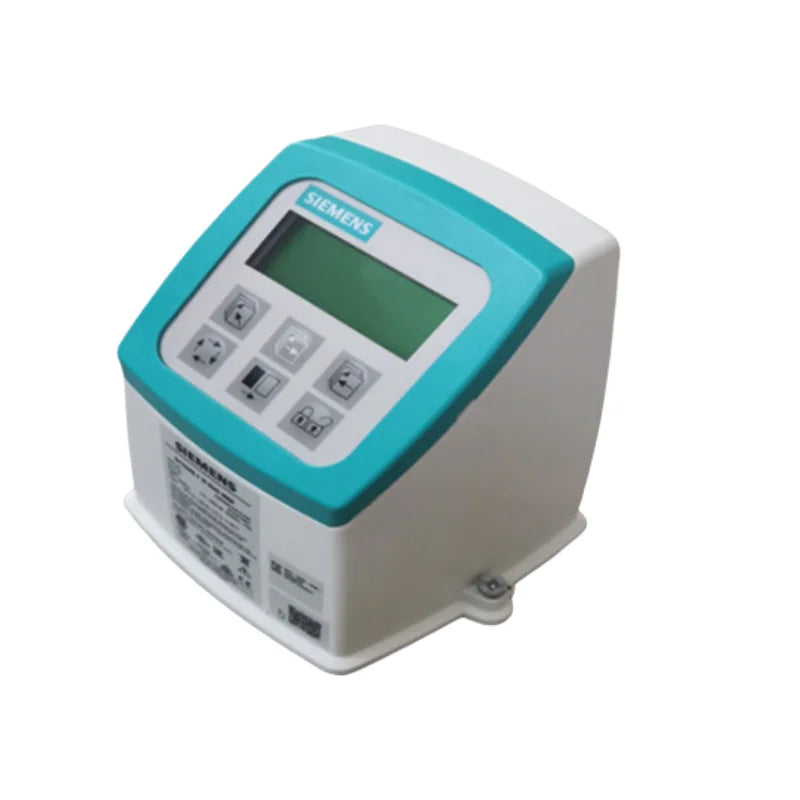

The SITRANS FM MAG 5000 is a microprocessor-based transmitter, which is a truly robust all-around solution for a wide variety of applications.
The MAG 5000 and 6000 are transmitters engineered for high performance, easy installation, commissioning and maintenance. The transmitters evaluate the signals from the SITRANS FM sensors type MAG 1100, MAG 1100 F, MAG 3100, MAG 3100 P and MAG 5100 W.
Transmitter types:
* MAG 5000: Max. measuring error ± 0.4 % ± 1 mm/s (incl. sensor)
* MAG 6000: Max. measuring error ± 0.2 % ± 1 mm/s (incl. sensor, see also sensor specifications) and with additional features
such as: “plug & play” add-on bus modules; integrated batch functions.
* MAG 5000: Max. measuring error ± 0.4 % ± 1 mm/s (incl. sensor)
* MAG 6000: Max. measuring error ± 0.2 % ± 1 mm/s (incl. sensor, see also sensor specifications) and with additional features
such as: “plug & play” add-on bus modules; integrated batch functions.
Benefits
* Cost-effective transmitter with high performance
* The transmitter is rugged, suitable for universal applications and has high measurement accuracy
* Multiple function outputs for process control
* Display and keypad available in several languages
* SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 500/ 6000 transmitter for all products (MAG5100/ 3100/ 1100):
• Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple,flexible commissioning of the sensor.
• Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
• "Hot swapable" - exchangeable during operation
• Mounting flexibility - compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are
individually accredited to ISO / IEC 17025.
• Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the
SITRANS FM Verificator ensures accuracy in the field.
* The transmitter is rugged, suitable for universal applications and has high measurement accuracy
* Multiple function outputs for process control
* Display and keypad available in several languages
* SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 500/ 6000 transmitter for all products (MAG5100/ 3100/ 1100):
• Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple,flexible commissioning of the sensor.
• Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
• "Hot swapable" - exchangeable during operation
• Mounting flexibility - compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are
individually accredited to ISO / IEC 17025.
• Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the
SITRANS FM Verificator ensures accuracy in the field.
* Superior signal resolution for optimum turn down ratio
* Digital signal processing with many possibilities
* Automatic reading of SENSORPROM data for easy commissioning
* User configurable operation menu with password protection
* 3 lines, 20 characters display in 11 languages
* Flow rate in various units
* Totalizer for forward, reverse and net flow as well as additional information available
* Multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status,
flow direction, limits)
* Comprehensive self-diagnostic for error indication and error logging (see SITRANS FM diagnostics)
* Batch control (MAG 6000 only)
* Custody transfer approval: MI-001 for cold water, PTB K 7.2 and OE12/C 040 for chilled water
* MAG 6000 with add-on bus modules for HART, FOUNDATION Fieldbus H1, DeviceNet, Modbus RTU/RS 485, PROFIBUS PA and DP
* Digital signal processing with many possibilities
* Automatic reading of SENSORPROM data for easy commissioning
* User configurable operation menu with password protection
* 3 lines, 20 characters display in 11 languages
* Flow rate in various units
* Totalizer for forward, reverse and net flow as well as additional information available
* Multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status,
flow direction, limits)
* Comprehensive self-diagnostic for error indication and error logging (see SITRANS FM diagnostics)
* Batch control (MAG 6000 only)
* Custody transfer approval: MI-001 for cold water, PTB K 7.2 and OE12/C 040 for chilled water
* MAG 6000 with add-on bus modules for HART, FOUNDATION Fieldbus H1, DeviceNet, Modbus RTU/RS 485, PROFIBUS PA and DP
Application
The SITRANS FM flowmeters are suitable for measuring the flow of almost all electrically conductive liquids, pastes and slurries.The main applications can be found in:
* Water and waste water
* Chemical and pharmaceutical industries
* Food and beverage industries
* Power generation and utility
* Water and waste water
* Chemical and pharmaceutical industries
* Food and beverage industries
* Power generation and utility
Specification
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
SIEMENS
|
|
Model Number
|
SITRANS FM MAG 5000
|
|
Type
|
Electromagnetic Flow Meter
|
|
Accuracy
|
0.4 % ±1 mm/s
|
|
Input / output
|
1 current output
1 digital output 1 relay output |
|
Communication
|
HART
|
|
Display
|
Background illumination with alphanumeric text, 3 x 20 characters
|
|
Enclosure
|
IP67 (NEMA 4x/6)
IP20 (NEMA 2) |
|
Power supply
|
12-24 V a.c./d.c.
115-230 V a.c. |
|
Ambient temperature
|
From -20 to 50 °C (-4 to 122 °F)
|
|
Approvals
|
MI-001
Danak PTB OIML R49 |
|
Ex-approvals
|
FM/CSA Class 1, Div 2
|
