Overview

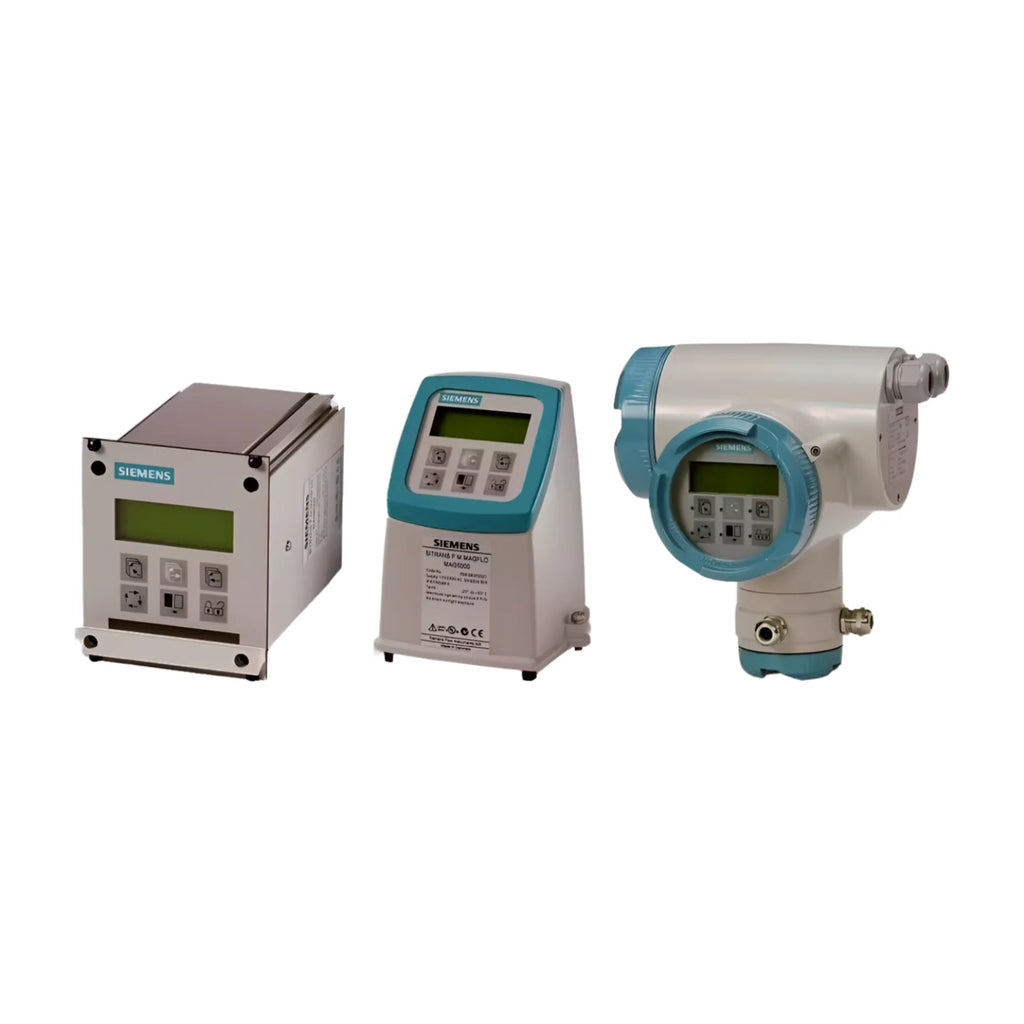

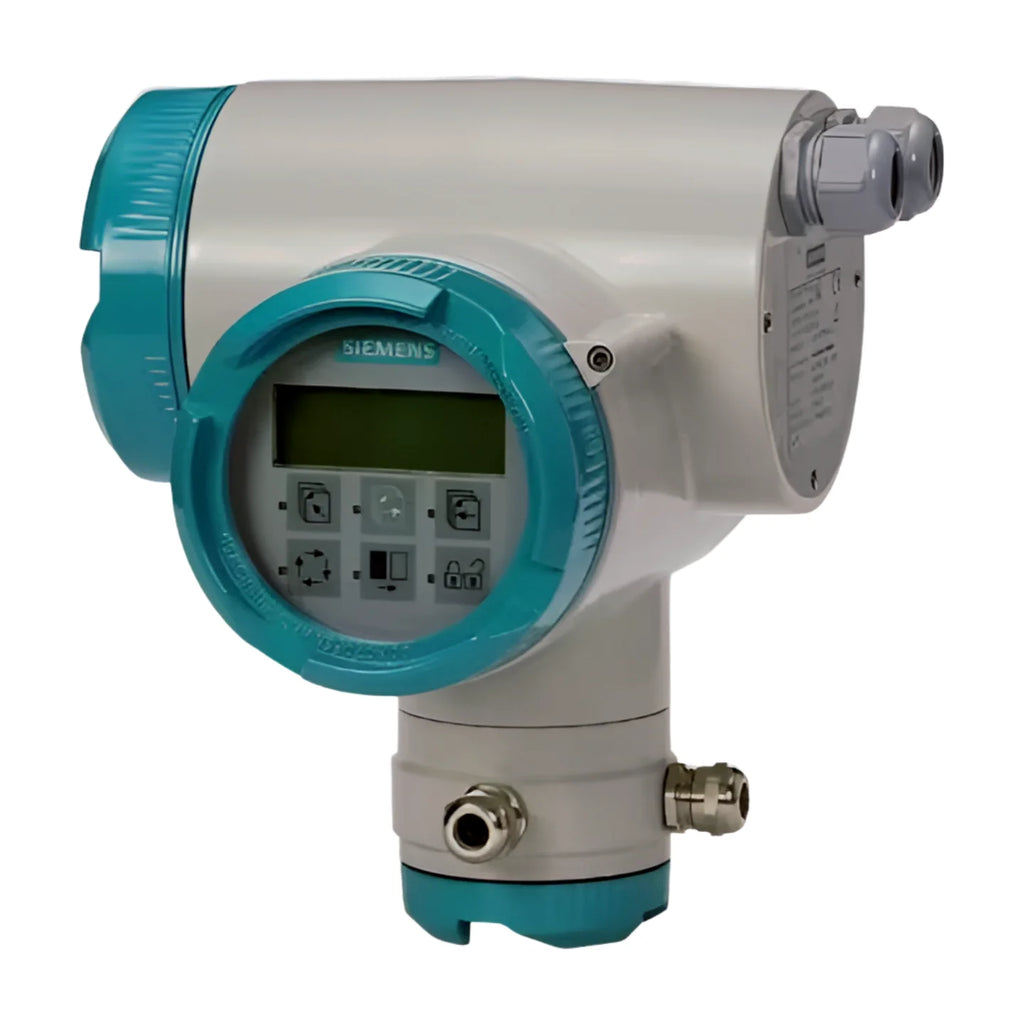

The SITRANS FM MAG 6000 I and the SITRANS FM MAG 6000 I Ex de are microprocessor-based transmitters which can be used in the harshest industrial environments.

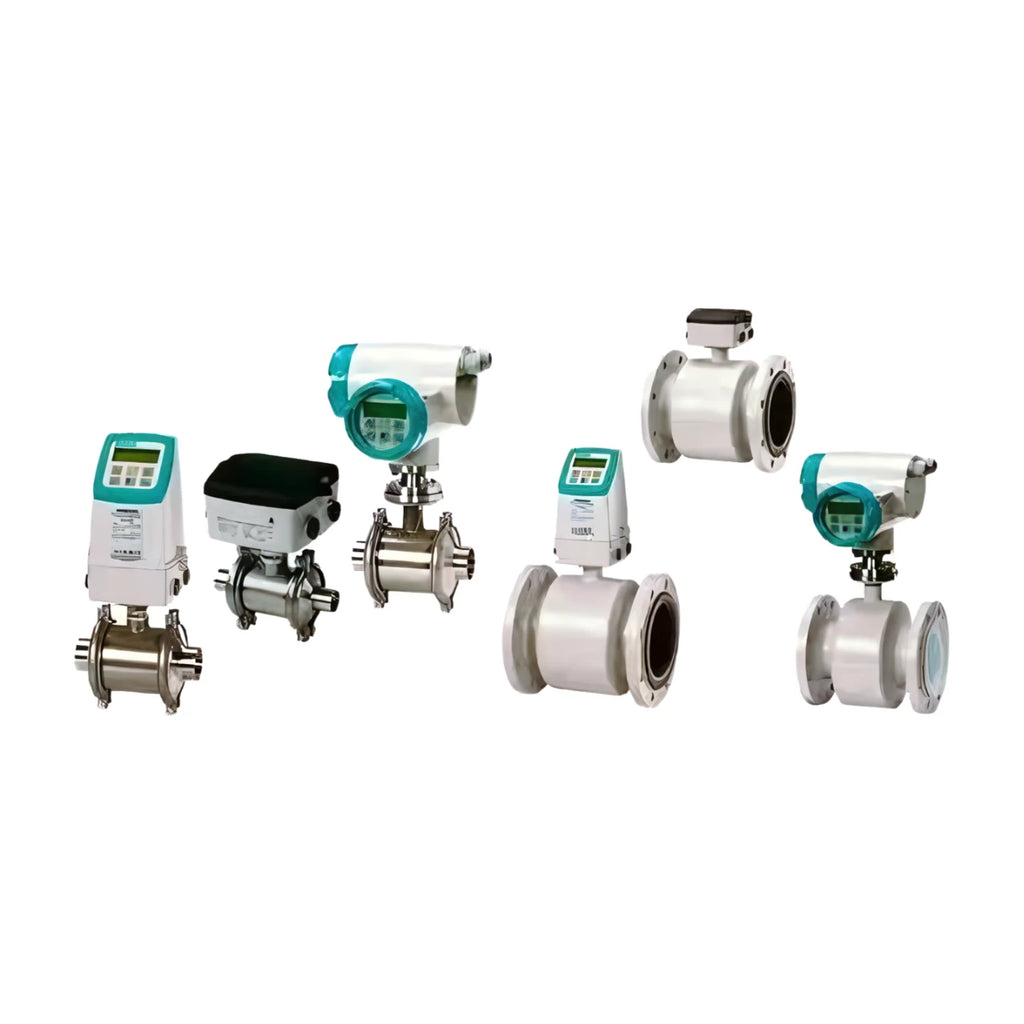

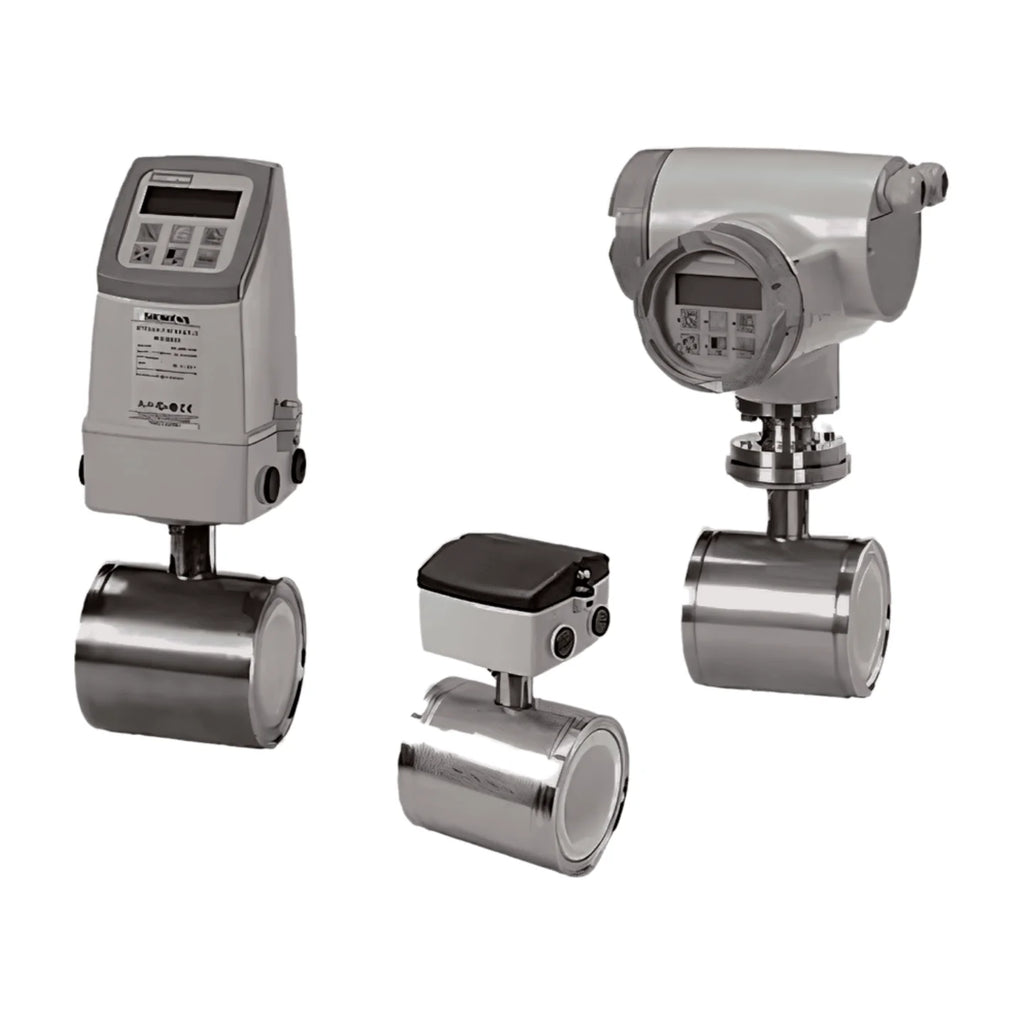

SITRANS FM MAG 6000i Electromagnetic flow transmitter, works with sensors of type MAG 1100, MAG 3100 and MAG 5100W. Suitable for volume flow measurement of liquids (conductive), die-cast aluminium enclosure.
SITRANS FM MAG 6000i Electromagnetic flow transmitter, works with sensors of type MAG 1100, MAG 3100 and MAG 5100W. Suitable for volume flow measurement of liquids (conductive), die-cast aluminium enclosure.
Benefits
* Built-in advanced batch control
* Robust aluminum two-chamber die-cast housing suitable for potentially explosive applications
* Built-in dosing function
* Added communication module for easy integration with your application, providing a fully integrated solution throughout the
plant
* EMC requirements as well as high functional safety and system availability due to uniform operating concept according to NAMUR guidelines are fulfilled
* Error behavior according to NE43 for 4 ... 20mA output selectable
* Improved troubleshooting and testing of the instrument through comprehensive diagnostics and service menu
* SENSORPROM technology allows transmitter replacement and automatic reprogramming of a new transmitter without loss of data or accuracy
* Keypad and alphanumeric display are intrinsically safe and programmable directly in the hazardous area – ATEX and FM certified
* Full range of Ex-rated flowmeters with intrinsically safe rated input and outputs
* For compact or remote installation
* HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS PA and DP, Modbus RTU/RS 485 add-on communication modules available
* Superior signal resolution for optimum turn down ratio
* Digital signal processing with many possibilities
* Automatic reading of SENSORPROM data for easy commissioning
* User configurable operation menu with password protection
* 3 lines, 20 characters display in 11 languages
* Flow rate in various units
* Totalizer for forward, reverse and net flow as well as much more information available
* Multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status, flow direction, limits)
* Comprehensive self-diagnostic for error indication and error logging
* Batch control
* Conforming to NAMUR recommendations NE 21, NE 32, NE 43, NE 53 and NE 70
* Self verification
* Robust aluminum two-chamber die-cast housing suitable for potentially explosive applications
* Built-in dosing function
* Added communication module for easy integration with your application, providing a fully integrated solution throughout the
plant
* EMC requirements as well as high functional safety and system availability due to uniform operating concept according to NAMUR guidelines are fulfilled
* Error behavior according to NE43 for 4 ... 20mA output selectable
* Improved troubleshooting and testing of the instrument through comprehensive diagnostics and service menu
* SENSORPROM technology allows transmitter replacement and automatic reprogramming of a new transmitter without loss of data or accuracy
* Keypad and alphanumeric display are intrinsically safe and programmable directly in the hazardous area – ATEX and FM certified
* Full range of Ex-rated flowmeters with intrinsically safe rated input and outputs
* For compact or remote installation
* HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS PA and DP, Modbus RTU/RS 485 add-on communication modules available
* Superior signal resolution for optimum turn down ratio
* Digital signal processing with many possibilities
* Automatic reading of SENSORPROM data for easy commissioning
* User configurable operation menu with password protection
* 3 lines, 20 characters display in 11 languages
* Flow rate in various units
* Totalizer for forward, reverse and net flow as well as much more information available
* Multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status, flow direction, limits)
* Comprehensive self-diagnostic for error indication and error logging
* Batch control
* Conforming to NAMUR recommendations NE 21, NE 32, NE 43, NE 53 and NE 70
* Self verification
Specification
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
SIEMENS
|
|
Model Number
|
SITRANS FM MAG 6000 I / 6000 I Ex de
|
|
Type
|
Electromagnetic Flow Meter
|
|
Accuracy
|
0.2 % ±1 mm/s
|
|
Input / output
|
1 current
1 pulse/frequency 1 relay |
|
Communication
|
HART
MODBUS RTU Profibus PA/DP DeviceNet Foundation Fieldbus |
|
Display
|
Background illumination with alphanumeric text, 3 x 20 characters
|
|
Enclosure
|
IP67 (NEMA 4x)
|
|
Power supply
|
24 V d.c.
115-230 V a.c. 18-30 V d.c. |
|
Ambient temperature
|
From -20 to 60°C (-4 to 140 °F)
|
|
Approvals
|
CE
C-tick FM class 1, div 2 FM class 1, zone 2 CSA class 1, div 2 CSA class 1, zone 2 |
|
Ex-approvals
|
IEC Ex de [ia] [ib] ia IIC T6 Gb Ex tDa 21 IP67
ATEX II 2(1)(2) GD EEx de [ia] ia [ib] IIC T6 |
|
NAMUR
|
NE21, NE32, NE43, NE53, NE70, NE131
|
