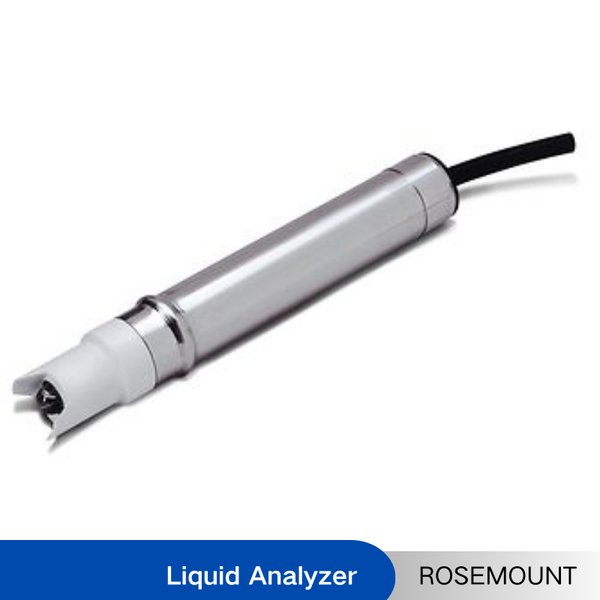

Rosemount™ 396 Submersion/Insertion pH SensorThe Rosemount 396 pH Sensor, with integral cable, is ideal for pH measurement in harsh, dirty, and abrasive applications with
large quantities of suspended solids. A robust sensor design and robust reference technology allow for reliable pH measurements in
a wide range of the toughest applications.
large quantities of suspended solids. A robust sensor design and robust reference technology allow for reliable pH measurements in
a wide range of the toughest applications.
Benefits
* SMART enabled to eliminate field calibration
* Minimum sensor maintenance due to robust reference technology helps ensure steady pH signal when sensor is coated
* Maximum pH sensor life due to helical reference pathway which hinders reference poisoning
* Field proven ACCUGLASS® pH glass formulations minimize glass cracking, resulting in enhanced performance and increased pH sensor life
* Provides advanced sensor diagnostics for pH and reference signals when used with Rosemount transmitters
* Maximum Pressure Specifications of 150 psig (1135 kPa [abs]) at 100 ° C (212 ° F)
* Minimum sensor maintenance due to robust reference technology helps ensure steady pH signal when sensor is coated
* Maximum pH sensor life due to helical reference pathway which hinders reference poisoning
* Field proven ACCUGLASS® pH glass formulations minimize glass cracking, resulting in enhanced performance and increased pH sensor life
* Provides advanced sensor diagnostics for pH and reference signals when used with Rosemount transmitters
* Maximum Pressure Specifications of 150 psig (1135 kPa [abs]) at 100 ° C (212 ° F)
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
ROSEMOUNT/EMERSON
|
|
Model Number
|
396
|
|
Type
|
Submersion/Insertion pH Sensor
|
|
Battery
|
No
|
|
Usage
|
Industrial, Pen-Type pH Meter
|
|
Weight
|
1 lb (0.5 kg)/2 lb (0.9 kg)
|
|
Dimensions
|
15 ft coaxial with BNC
|
|
Measurements and ranges
|
pH: 0 to 14
|
|
Available pH ACCUGLASS types
|
GPHT hemi bulb or GPHT flat bulb
|
|
Wetted Materials
|
316 stainless steel, polypropylene, EPDM, glass
|
|
Process Connection
|
None, use 1 in (25 mm) NPT, PN 23166-00 or 23166-01 (sold separately)
|
|
Pressure range-hemi bulb
|
0 psig (0.00 barg) to 150 psig (10.34 barg)
|
|
Temperature range
|
32.0 °F (0 °C) to 212.0 °F (100 °C)
|
|
Pressure range-flat bulb
|
0 psig (0.00 barg) to 100 psig (6.89 barg)
|
|
Minimum conductivity
|
100 μS/cm
|
