Overview

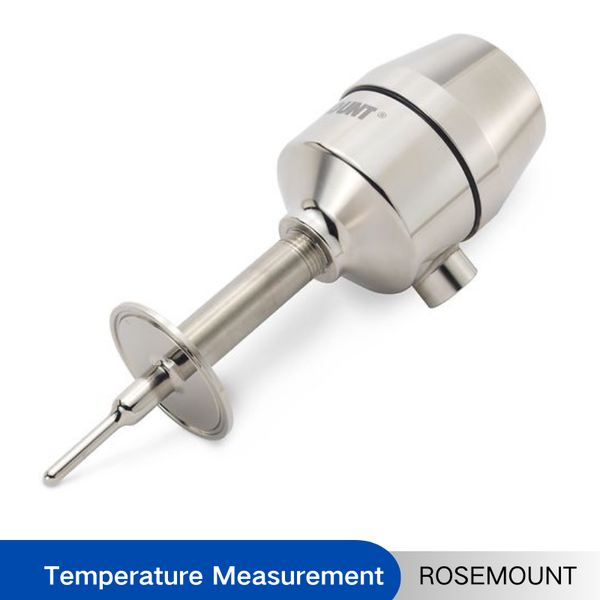

Rosemount™ 68Q Sanitary Temperature Sensor
The Rosemount 68Q Sanitary Temperature Sensor is an industry-standard, resistance temperature detector (RTD). This sensor is engineered to provide flexible and reliable temperature measurements in hygienic process environments for the food and beverage,pharmaceutical and life-science industries. This RTD is designed with a Tri Clamp® sanitary endcap configuration for easy installation and its aseptic process connection is suitable for clean-in-place (CIP), dead-pocket free, measurement applications.
Benefits
* Designed for hygienic process environments to meet food and beverage, pharmaceutical and life-science industry demands
* Tri Clamp endcap provides immersion lengths from 1.0 to 9.5 inches (25.4 to 241.3 mm) for easy installation
* Withstands -58 to 392 °F (–50 to 200 °C) temperature range for application durability
* Aseptic process connections are suitable for clean-in-place, (CIP) dead-pocket free, measurement applications
* Surface finishes on sensors and SST connection heads meet 3-A® Standards to ensure reliable performance
* Variety of enclosure and connection head options offer application flexibility
* Sensor capsule is welded into the 316 SST sanitary endcap/stem assembly for performance stability
* Calibration schedules with Callendar-Van Dusen constants improve overall sensor performance and accuracy
* Provides option for electropolishing wetted parts to meet specific surface finish requirements
* Tri Clamp endcap provides immersion lengths from 1.0 to 9.5 inches (25.4 to 241.3 mm) for easy installation
* Withstands -58 to 392 °F (–50 to 200 °C) temperature range for application durability
* Aseptic process connections are suitable for clean-in-place, (CIP) dead-pocket free, measurement applications
* Surface finishes on sensors and SST connection heads meet 3-A® Standards to ensure reliable performance
* Variety of enclosure and connection head options offer application flexibility
* Sensor capsule is welded into the 316 SST sanitary endcap/stem assembly for performance stability
* Calibration schedules with Callendar-Van Dusen constants improve overall sensor performance and accuracy
* Provides option for electropolishing wetted parts to meet specific surface finish requirements
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
68Q Sanitary Temperature Sensor
|
|
Immersion Lengths
|
1.0 to 9.5 inches (25.4 to 241.3 mm)
|
|
Temperature Range
|
-58 to 392 °F (-50 to 200 °C)
|
|
Sanitary Endcap/Stem Material
|
316 SST
|
|
Time Constant / Response
|
Tri Clamp O.D. tube size 1-in. and greater: Less than 3.5 seconds required to reach 63.2% sensor response; Tri Clamp O.D. tube
size 1/2- to 3/4-in.: Less than 1.5 seconds required to reach 63.2% sensor response; see full specs for complete specifications |
|
Stability
|
Tri Clamp O.D. tube size 1/2- to 3/4-in.: ±0.08% maximum ice-point resistance shift following 1,000 hours at maximum specified
temperature 392 °F (200 °C) |
|
Lead Wires
|
Tri Clamp O.D. tube size 1-in. and greater: ±0.04% maximum ice-point resistance shift following 1,000 hours at maximum specified
temperature 392 °F (200 °C) |
|
Insulation Resistance
|
500 x 10^6 ohms minimum insulation resistance when measured at 100 Vdc at room temperature
|
|
Calibration Options
|
Customer-specified calibration point or schedule; calibration schedule with Callendar-Van Dusen constants
|
