Overview
* Accuracy Standard: 0.05% Platinum: up to 0.025%
*Process temperature ：-40°C...150°C (-40°F...302°F)
* Pressure measuring range：100mbar...40bar (1.5psi...600psi)
* Process pressure / max. overpressure limit 60bar (900psi)
* Main wetted parts Ceraphire ceramic Alloy C 316L Monel PVDF
* Max. measurement distance 400m (1312ft) H2O
* Material process membrane Ceramic
* Measuring cell 100 mbar...40 bar (1.5 psi...600 psi) relative/ absolute approvals, marine approvals
Benefits
* Best fit for vacuum applications and applications with corrosive and abrasive media
* Process safety through membrane breakage detection
* Overload-resistant high purity ceramic sensor (99.9% Al2O3)
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
* Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
* Available with mounted manifolds: always fit, always tested for leaks
Application

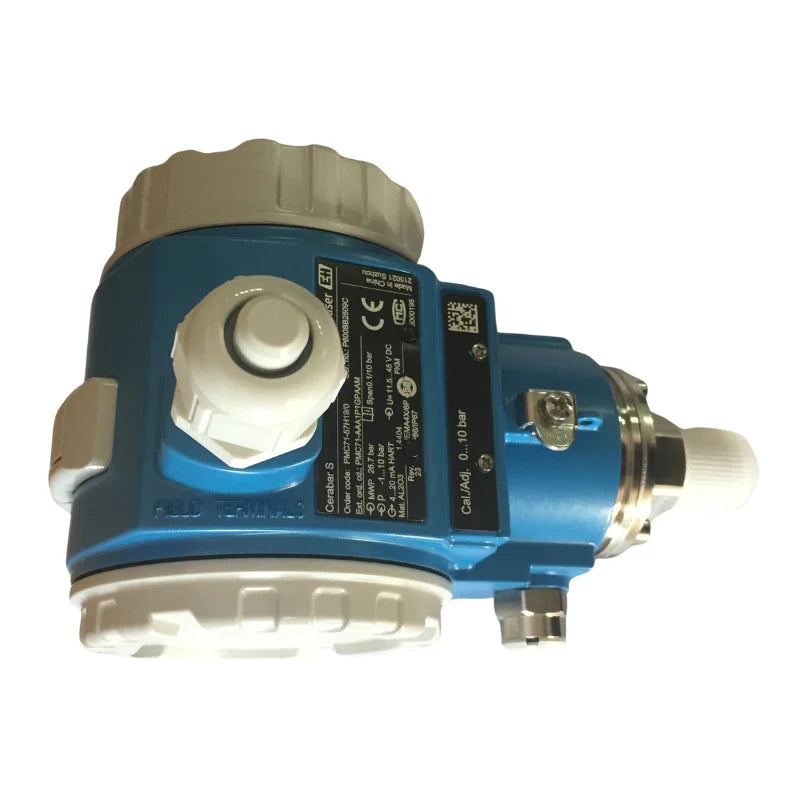

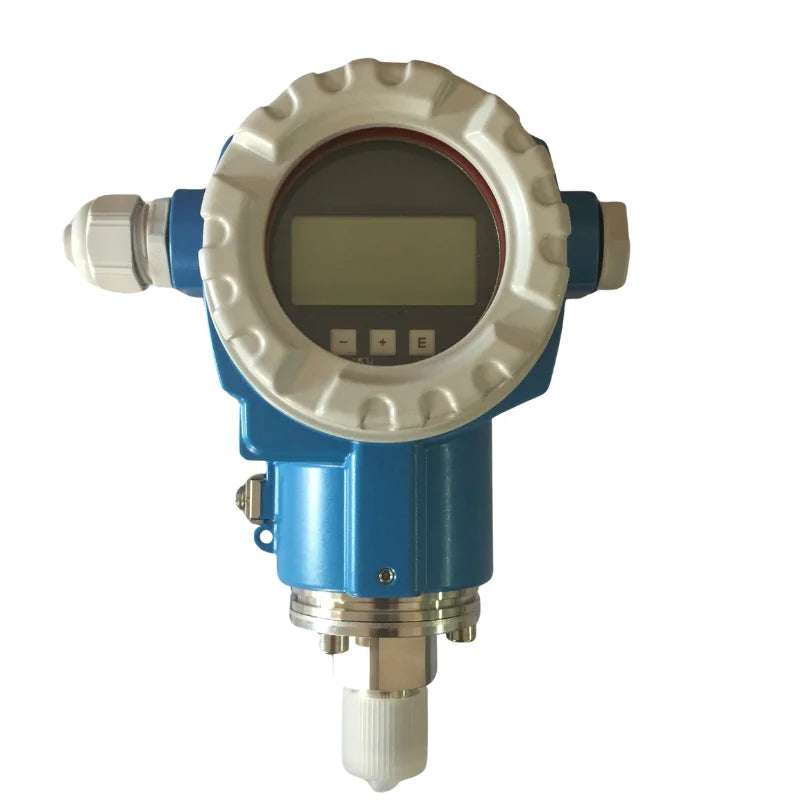

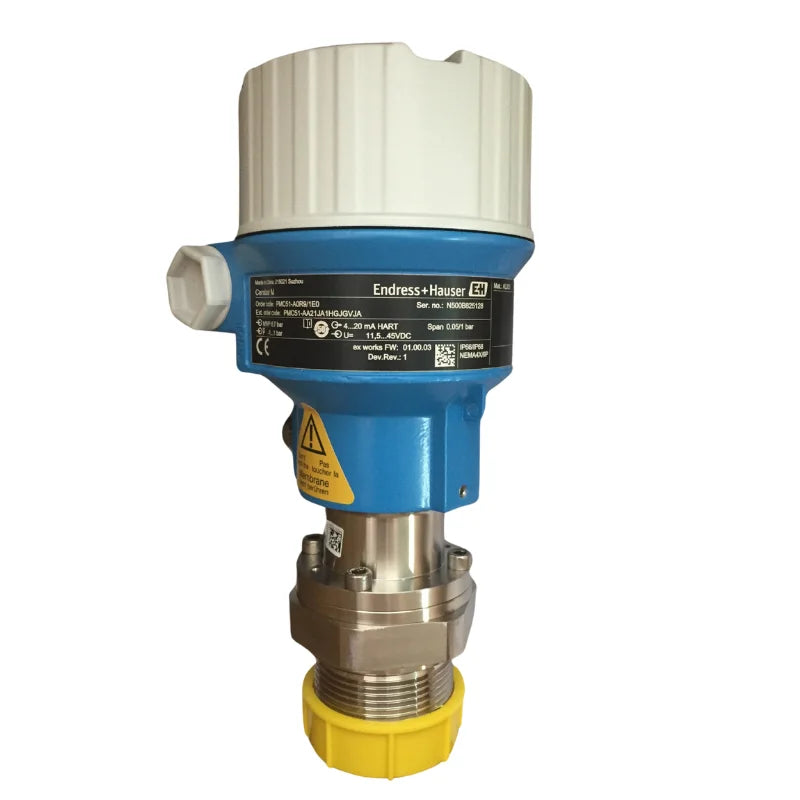

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
Two chamber aluminum or stainless steel (316L) housing.
* Process connections: Threads, flanges or hygienic connections
* Process temperature: -40 to +150°C (-40 to +302°F)
* Measuring ranges: -1/0 up to to +40bar (+1.5 to +600psi)
* Accuracy: ±0.05%, "Platinum" ±0.025%
* International explosion protection certificates, overfill prevention WHG, SIL, hygienic
Specification
| Measuring principle | Absolute and gauge pressure |
| Characteristic | Digital transmitter with capacitive sensor and ceramic membrane Modular transmitter Long term stability Enhanced safety via self diagnostic functions Secondary process barrier |
| Supply voltage | 4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
| Reference Accuracy | Standard: 0.05% Platinum: up to 0.025% |
| Long term stability | 0.05 % of URL/ year 0.08 % of URL/ 5 years 0.1 % of URL/ 10 years |
| Process temperature | -20°C...150°C (-4°F...257°F) |
| Ambient temperature | -40°C...85°C (-40°F...185°F) |
| Measuring cell | 100 mbar...40 bar (1.5 psi...600 psi) relative/ absolute |
| Smallest calibratable span | 5 mbar (0.075 psi) |
| Vacuum resistance | 0 mbar abs. |
| Max. Turn down | 100:1 |
| Max. overpressure limit | 60 bar (900 psi) |

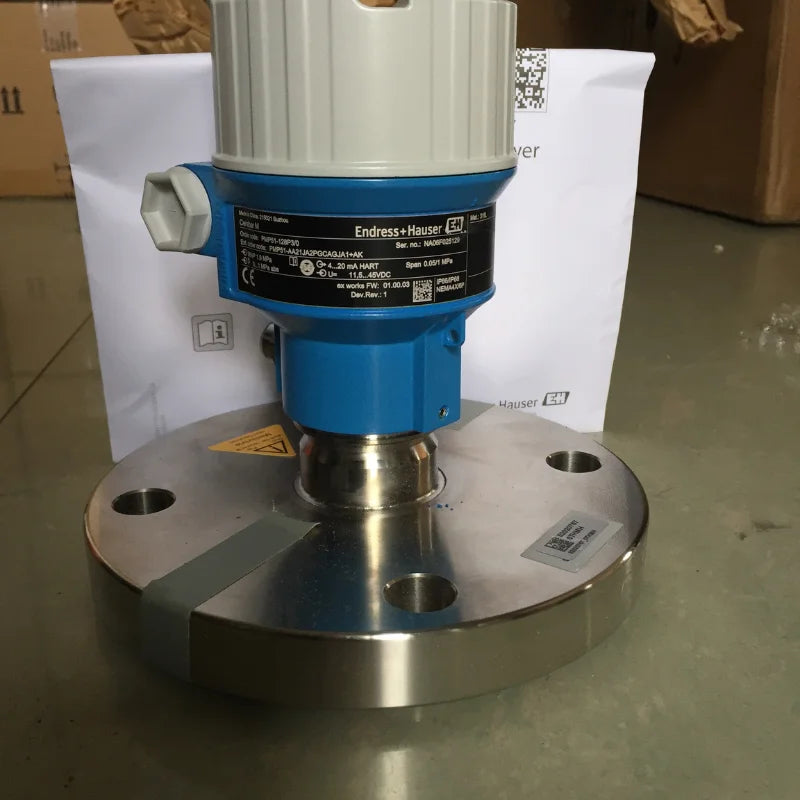

| Process connection | Thread: G1/2...G2, R1/2, MNPT1/2...MNPT2 Flange: DN25...DN80, ASME 1"...4", JIS 10K |
| Process connection hygienic | Tri-Clamp DIN11851 Varivent N SMS DRD |
| Material process membrane | Ceramic |
| Material gasket | Viton, EPDM, Chemraz, Kalrez, NBR |
| Fill fluid | none, dry measuring cell |
| Material housing | Die-cast aluminum, AISI 316L |
| Communication | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC, UK Ex |
| Design approvals | EN10204-3.1 |
| Hygienic approvals | 3A, EHEDG |
| Marine approvals | GL/ ABS |
| Drinking water approvals | NSF |
| Specialities | Diagnostic functions |
| Successor | PMC71B |
