Overview

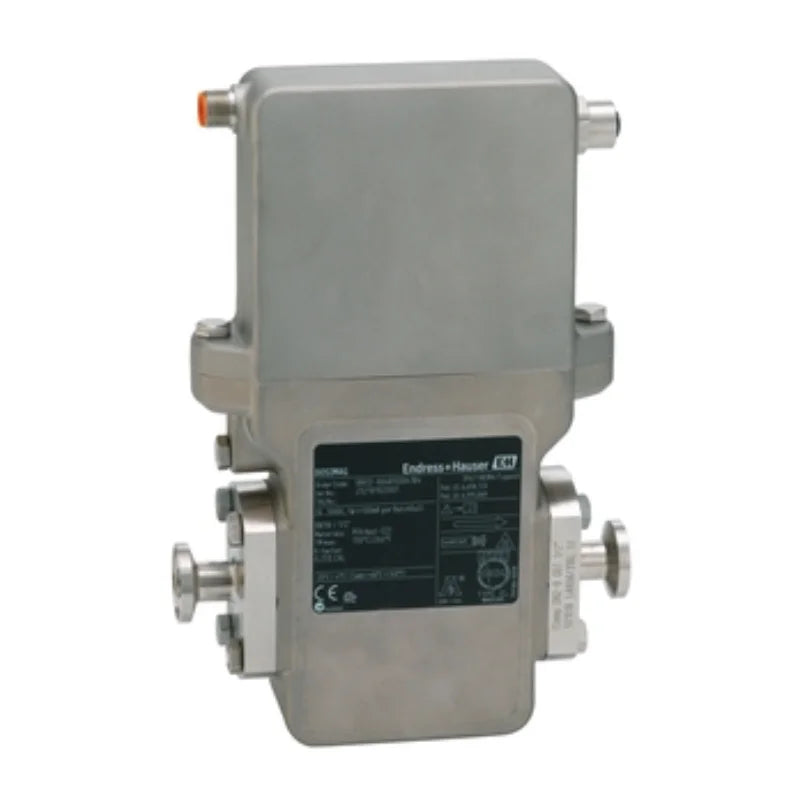

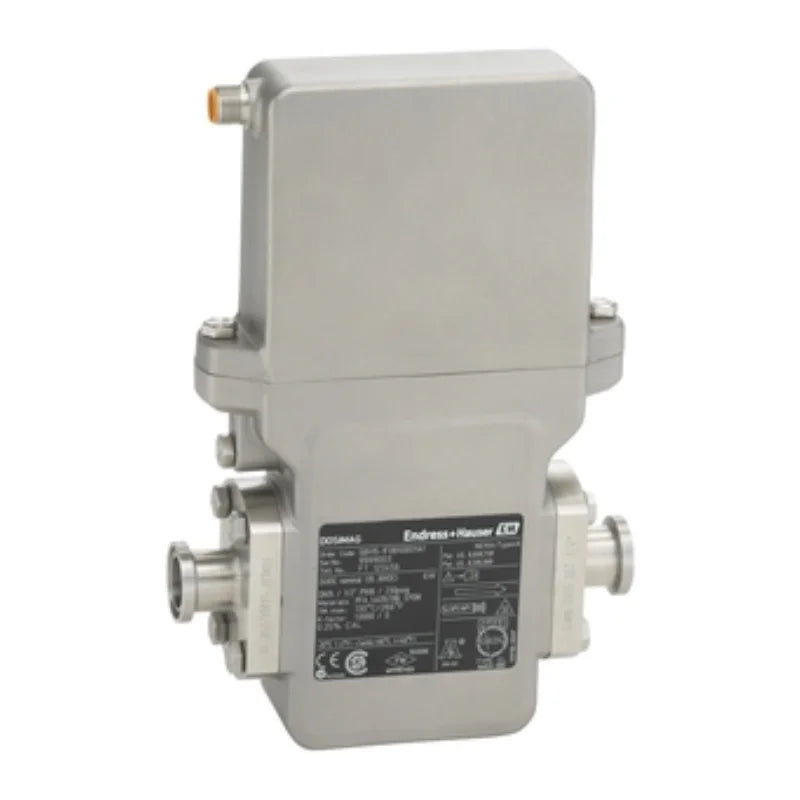

Flowmeter with hygienic design, highest repeatability and an ultra-compact sensor
Specs at a glance
Max. measurement error ±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
±0.5 % o.r. ± 1 mm/s (0.04 in/s)
±5 % o.r. Measuring range 0.14 to 1.66 l/s (0.035 to 0.44 gal/s) Medium temperature range Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
Seal material Viton: 0 to +150 °C (+32 to +302 °F) Max. process pressure PN 16 Wetted materials Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
Platinum
±0.5 % o.r. ± 1 mm/s (0.04 in/s)
±5 % o.r. Measuring range 0.14 to 1.66 l/s (0.035 to 0.44 gal/s) Medium temperature range Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
Seal material Viton: 0 to +150 °C (+32 to +302 °F) Max. process pressure PN 16 Wetted materials Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
Platinum
Application
Dosimag is specially designed for filling and bottling applications of conductive liquids. It measures volume directly. Designed for applications where space is a premium, Dosimag will be the preferred choice for system integrators, skid builders and equipment manufacturers.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
* For demanding dosing and filling applications.
Device properties
* Wetted materials CIP, SIP cleanable
* Nominal diameter: DN 4 to 25 (1/8 to 1")
* Measuring device conform to FDA
* Pulse/frequency/switch output, Modbus RS485
* Custody transfer approvals (MID, NTEP)
* Excellent and easy cleanable transmitter
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
* For demanding dosing and filling applications.
Device properties
* Wetted materials CIP, SIP cleanable
* Nominal diameter: DN 4 to 25 (1/8 to 1")
* Measuring device conform to FDA
* Pulse/frequency/switch output, Modbus RS485
* Custody transfer approvals (MID, NTEP)
* Excellent and easy cleanable transmitter
Benefits
* High process safety – high measuring accuracy and repeatability in shortest filling time
* Energy-saving flow measurement – no pressure loss due to cross-section constriction
* Maintenance-free – no moving parts
* Versatile and time-saving wiring – plug connector
* Industry-optimized – ultra-compact design
* For hygiene requirements – stainless steel housing
* Energy-saving flow measurement – no pressure loss due to cross-section constriction
* Maintenance-free – no moving parts
* Versatile and time-saving wiring – plug connector
* Industry-optimized – ultra-compact design
* For hygiene requirements – stainless steel housing
Specification
|
Model Number
|
Proline Promag W 300
|
|
Measuring principle
|
Electromagnetic
|
|
Product headline
|
Flowmeter with hygienic design, highest repeatability and an ultra-compact sensor.
For demanding dosing and filling applications. |
|
Sensor features
|
High process safety – high measuring accuracy and repeatability in shortest filling time. Energy‐saving flow measurement – no
pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Wetted materials CIP, SIP cleanable. Nominal diameter: DN 4 to 25 (¹⁄₈ to 1"). Measuring device conform to FDA. |
|
Transmitter features
|
Versatile and time-saving wiring – plug connector. Industry-optimized – ultra-compact design. For hygienic requirements –
stainless steel housing. Pulse/frequency/switch output, Modbus RS485. Custody transfer approvals (MID, NTEP). Excellent, easily cleanable transmitter. |
|
Nominal diameter range
|
DN 4 (⁵⁄₃₂"), 8 (⁵⁄₁₆"), 15 (½"), 25 (1")
|
|
Wetted materials
|
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum, Platinum |
|
Measured variables
|
Volume flow
|
|
Max. measurement error
|
±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
±0.5 % o.r. ± 1 mm/s (0.04 in/s) ±5 % o.r. |
|
Measuring range
|
0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
|
|
Max. process pressure
|
PN 16
|
|
Medium temperature range
|
Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
Seal material Silicone: –20 to +130 °C (–4 to +266 °F) Seal material Viton: 0 to +150 °C (+32 to +302 °F) |
|
Ambient temperature range
|
–40 to +60 °C (–40 to +140 °F)
|
|
Sensor housing material
|
1.4308 (304)
|
|
Transmitter housing material
|
1.4308 (304)
|
|
Degree of protection
|
IP66/67, type 4X enclosure
|
|
Display/Operation
|
No local Operation
Configuration via operating tools possible |
|
Outputs
|
Pulse/frequency/switch output (passive)
|
|
Inputs
|
None
|
|
Digital communication
|
Modbus RS485
|
|
Power supply
|
DC 20 to 30 V
|
|
Hazardous area approvals
|
ATEX, IECEx, cCSAus
|
|
Product safety
|
CE
|
|
Metrological approvals and certificates
|
Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025)
NTEP |
|
Material certificates
|
3.1 material |
|
Hygienic approvals and certificates
|
Sanitary approval: 3-A, EHEDG, seals acc. to FDA
|
