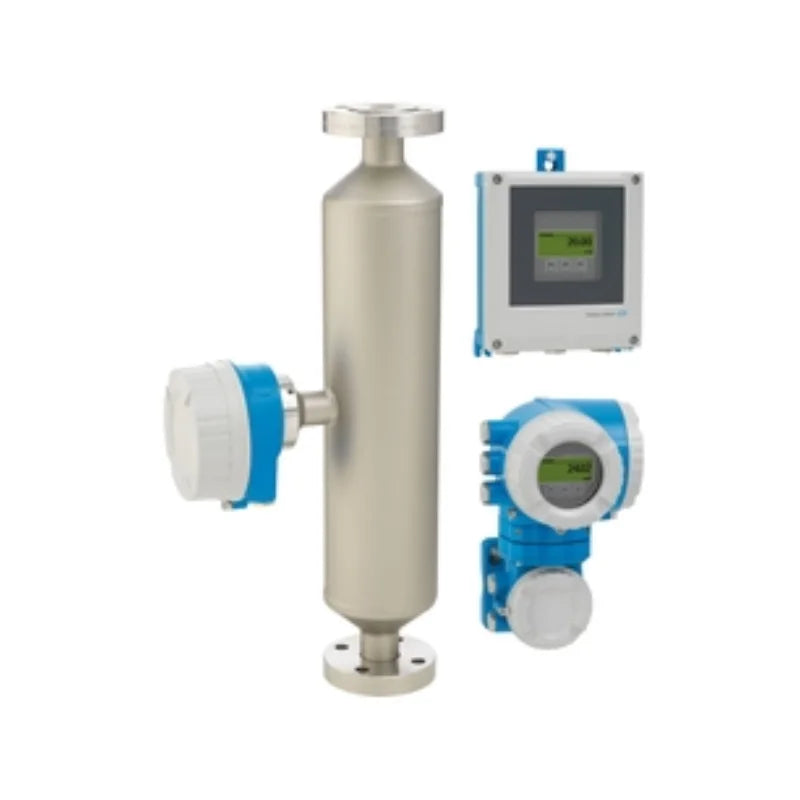

Endress+Hauser Proline Promass I500 8I5B Coriolis Flowmeter

Availability: In stock

Product type: Flow Measurement

Precio habitual ~~$1,990.00~~ $1,990.00 Oferta

Overview Combines in-line viscosity and flow measurement with a transmitter remote version with up to 4 I/Os. Specs at a glance * Max. measurement errorMass flow (liquid): ±0.1...

Precio habitual ~~$1,990.00~~ $1,990.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

Combines in-line viscosity and flow measurement with a transmitter remote version with up to 4 I/Os.

Specs at a glance

* Max. measurement error
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 180 000 kg/h (0 to 6600 lb/min)
* Medium temperature range
–50 to +150 °C (–58 to +302 °F)
* Max. process pressure
PN 100, Class 600, 63K
* Wetted materials
Measuring tube: Titanium grade 9
Connection: Titanium grade 2

Application

The straight single-tube design of Promass I provides in-line viscosity measurement in addition to mass flow, density and temperature measurement. With its innovative remote transmitter Promass I 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables measurement reliability and compliant verification.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
Device properties
* * Straight, easy-to-clean single-tube system
* TMB technology
* Measuring tube made of Titanium
* Remote version with up to 4 I/Os
* Backlit display with touch control and WLAN access
* Standard cable between sensor and transmitter

Benefits

* Energy-saving – full bore design enables minimal pressure loss
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in-/outlet run needs
* Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
* Reduced complexity and variety – freely configurable I/O functionality
* Integrated verification – Heartbeat Technology

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	Switzerland
Brand Name	Endress+Hauser
Model Number	Promass I500
Type	Coriolis meters, Coriolis flowmeter
Measuring Principle	Coriolis
Product Headline	Combines in-line viscosity and flow measurement with a transmitter remote version with up to 4 I/Os. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.
Sensor Features	Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.
Transmitter Features	Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.
Nominal Diameter Range	DN 8 to 80 (⅜ to 3")
Wetted Materials	Measuring tube: Titanium grade 9 Connection: Titanium grade 2
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity
Max. Measurement Error	Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 180 000 kg/h (0 to 6600 lb/min)
Max. Process Pressure	PN 100, Class 600, 63K
Medium Temperature Range	–50 to +150 °C (–58 to +302 °F)
Ambient Temperature Range	Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F)
Sensor Housing Material	1.4301 (304), corrosion resistant Sensor connection housing (standard): AlSi10Mg, coated Sensor connection housing (option): 1.4301 (304); 1.4404 (316L); 1.4409 (CF3M) similar to 316L
Transmitter Housing Material	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat
Degree Of Protection	Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible
Outputs	4 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs	Status input 4-20 mA input
Digital Communication	HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power Supply	DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals	ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety	Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine Approvals And Certificates	PED, CRN
Material Certificates	3.1 material
Hygienic approvals and certificates	3-A, EHEDG, cGMP
