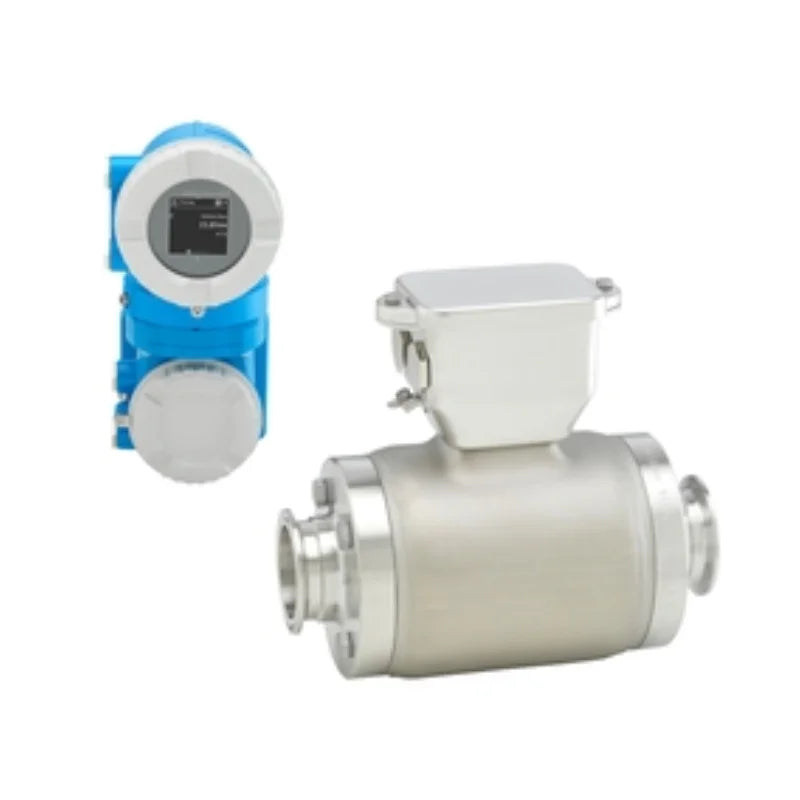

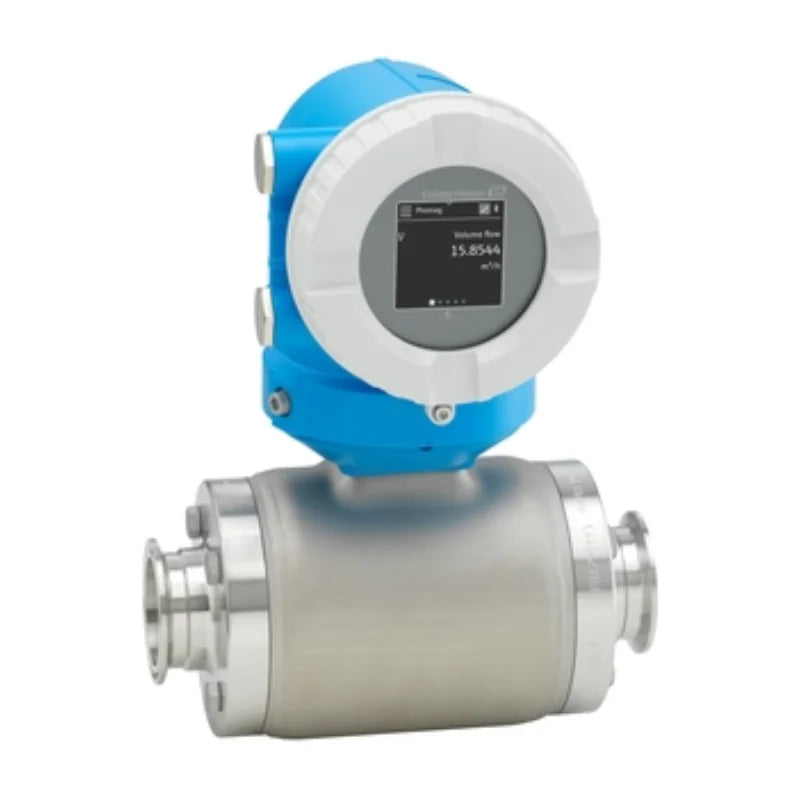

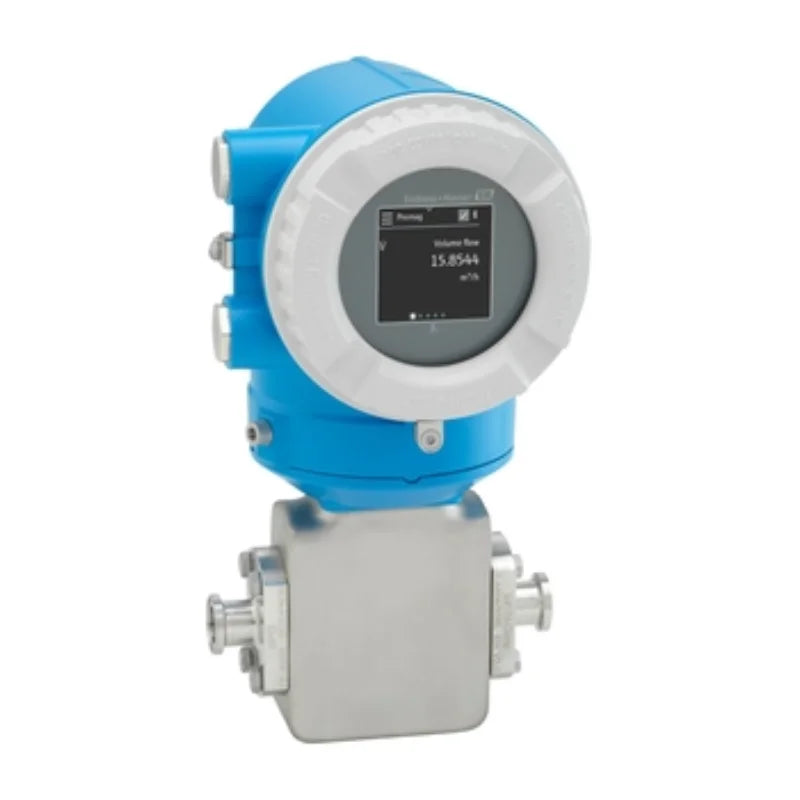

Endress+Hauser Proline Promag H10 Electromagnetic Flowmeter is a flowmeter for basic hygienic applications with easy-to-use operation concept.
Specs at a glance
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Measuring range 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) Medium temperature range –20 to +150 °C (–4 to +302 °F) Max. process pressure PN 40, Class 150, 20K Wetted materials Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: aseptic molded seal (EPDM, FKM, silicone)
Application
Promag H is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hard- and software design, Promag H 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
* For applications with sanitary requirements.
Device properties
* Liner made of PFA
* Sensor housing made of stainless steel (3-A, EHEDG)
* Wetted materials CIP-/SIP-cleanable
* System integration with HART, Modbus RS485
* Flexible operation with app and optional display
Benefits
* Flexible installation concept – numerous hygienic process connections
* Energy-saving flow measurement – no pressure loss due to cross section constriction
* Maintenance-free – no moving parts
* Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
* Simple, time-saving commissioning – guided parameterization in advance and in the field
* Integrated verification – Heartbeat Technology
Specification
| Model Number | Proline Promag H 10 |
| Measuring principle | Electromagnetic |
| Product headline | Flowmeter for basic hygienic applications with easy-to-use operation concept. For applications with sanitary requirements. |
| Sensor features | Flexible installation concept – numerous hygienic process connections. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts. Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP-/SIP-cleanable. |
| Transmitter features | Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display. |
| Nominal diameter range | DN 2 to 150 (¹⁄₁₂ to 6") |
| Wetted materials | Liner: PFA Electrodes: 1.4435 (316L); Alloy C22 Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve Seals: aseptic molded seal (EPDM, FKM, silicone) |
| Measured variables | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter housing material | AlSi10Mg, coated |
| Degree of protection | Standard: IP66/67, type 4X enclosure |
| Display/Operation | 2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA |
| Digital communication | HART, MODBUS RS485 |
| Power supply | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Hazardous area approvals | CSA, GP, KC |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
