SIEMENS Ultrasonic Clamp-on Flow Measurement SITRANS FS220 7ME3950

Availability: In stock

Product type: Flow Measurement

Vendor: SIEMENS

Precio habitual ~~$860.00~~ $860.00 Oferta

Overview The SITRANS FS220 is a clamp-on ultrasonic flow system consisting of an FST020 transmitter and FSS200 clamp-on sensors.The transmitter classification FST020 describes a basic clamp-on ultrasonic flowmeter...

Precio habitual ~~$860.00~~ $860.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

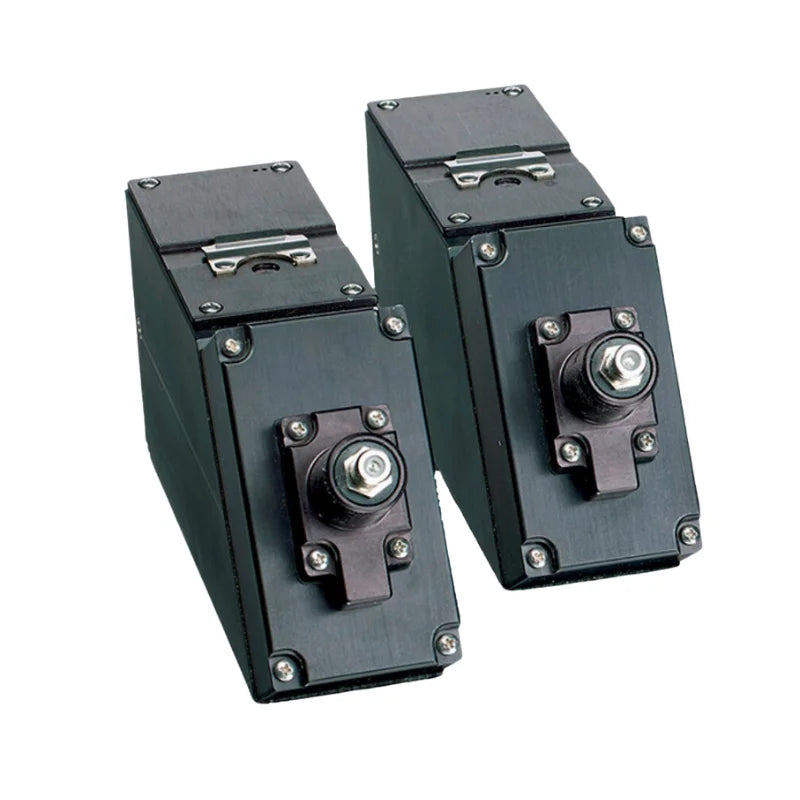

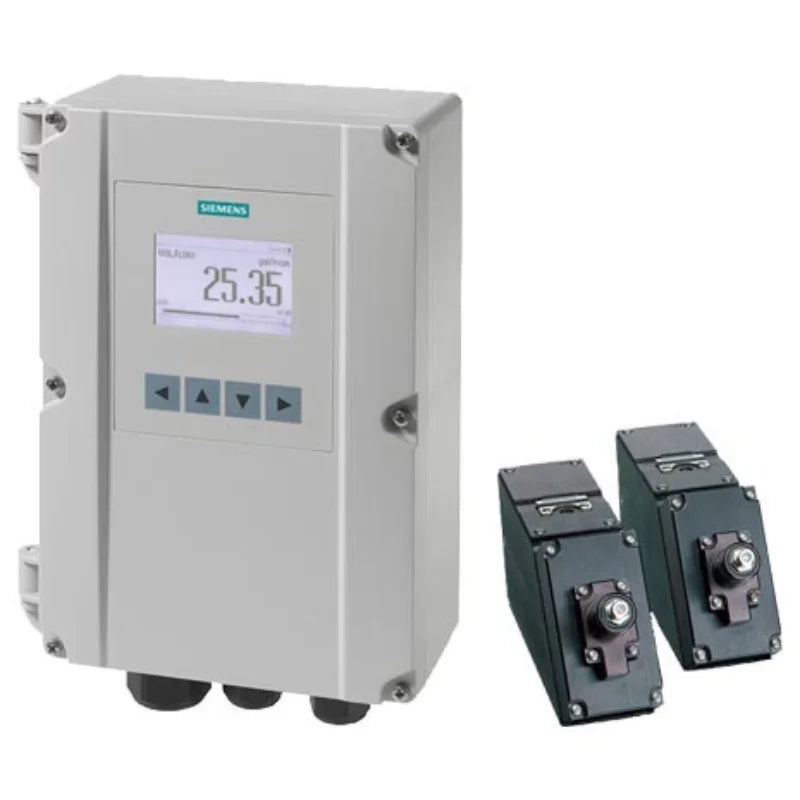

The SITRANS FS220 is a clamp-on ultrasonic flow system consisting of an FST020 transmitter and FSS200 clamp-on sensors.

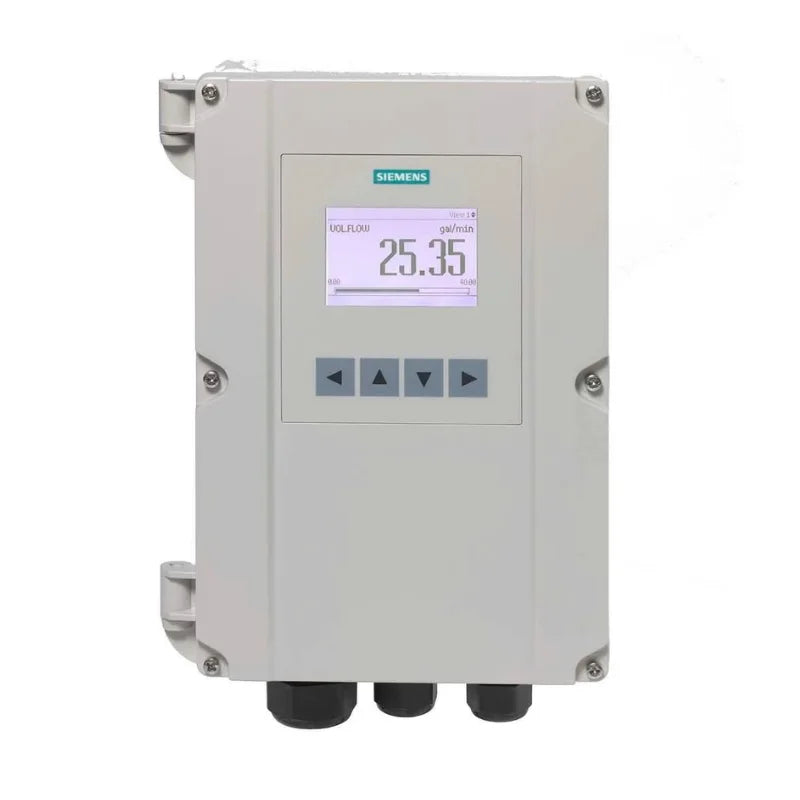

The transmitter classification FST020 describes a basic clamp-on ultrasonic flowmeter for basic application requirements. Based on the same digitalized platform as the FST030 this system provides the same accuracy and similar functions on a lower cost level.This system is ideal for water measurement and any application not requiring temperature or viscosity compensation.

Benefits

* Easy installation at any time; no production stop, no need to cut pipe or stop flow
* Minimal maintenance; external sensors do not require periodic cleaning
* No moving parts to foul or wear. No contact with media
* No pressure drop or energy loss
* Wide turn-down ratio, bidirectional and high stability at zero flow conditions
* Anomaly compensation tool for correction of non-ideal straight pipe runs. Automatic compensation during backflow
* Optional WideBeam technology ensures highest performance and accuracy
* Compatible with all previously installed transit time sensors

Application

The SITRANS FS220 can be used for the following application conditions:
* Pipe sizes from 10 mm to 10 m
* Pipe materials: ideal for all metals, glass, FRP and most PVC variants; NOT for concrete pipes and special compound pipes
* Pipe wall thickness from 1 to 35 mm; specials on request up to 65 mm
* Media temperatures from -40 to 121 °C; universal high temperature sensors for up to 230 °C max.
* Underground/submerged locations, non-ideal environments, strong pipe vibrations

SITRANS FS220 flowmeters are suitable for most clean liquid applications, including the following:
* Water and wastewater industry

* Potable water
* Water and aqueous solutions
* Wastewater, influent & effluent
* Processed sewage, sludge
* Chemical feed industry

* Sodium hypochlorite
* Sodium hydroxide
* HVAC and power industries * Coolant flow
* Fuel flow
* Utility district heating, cooling
* Refrigeration liquids
* Process control * Chemicals
* Pharmaceuticals
* Food products
* Very low flow sensitiity (< 0.1 m/s)
* High temperature liquids > 120 °C (248 °F)

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	SIEMENS
Model Number	FS220
Type	Ultrasonic flow meters
Channels	Single channel
Communication	Modbus RTU, compatible with SIMATIC PDM
Enclosure Rating	IP65 (NEMA 4X)
Display	240 x 160, fully graphical
Power Supply	100-240 V AC 15 VA max., 11.5-28.5 V DC 7.5W max.
Inputs	2x digital inputs for totalizer start/stop and reset
Outputs	1x 4 -20 mA, 1x relay, 1x pulse/frequency
Accuracy	1% for velocities ≥ 0.3 m/s (1 ft/s)
Flow Range	±12 m/s (±40 ft/s), bidirectional
Pipe Size Range	12.7 mm to 10 m (0.5" to 394")
