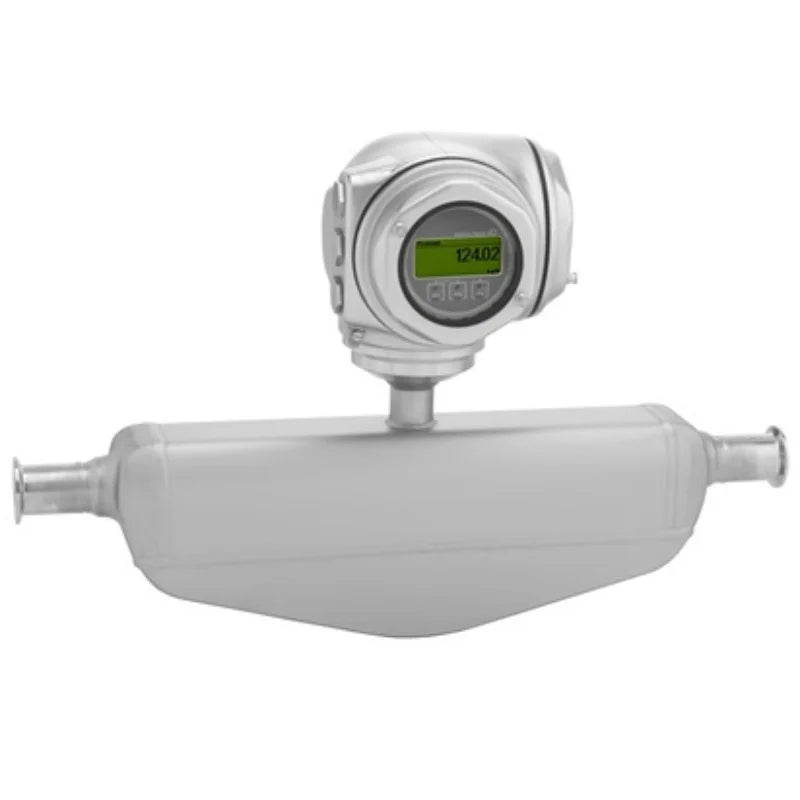

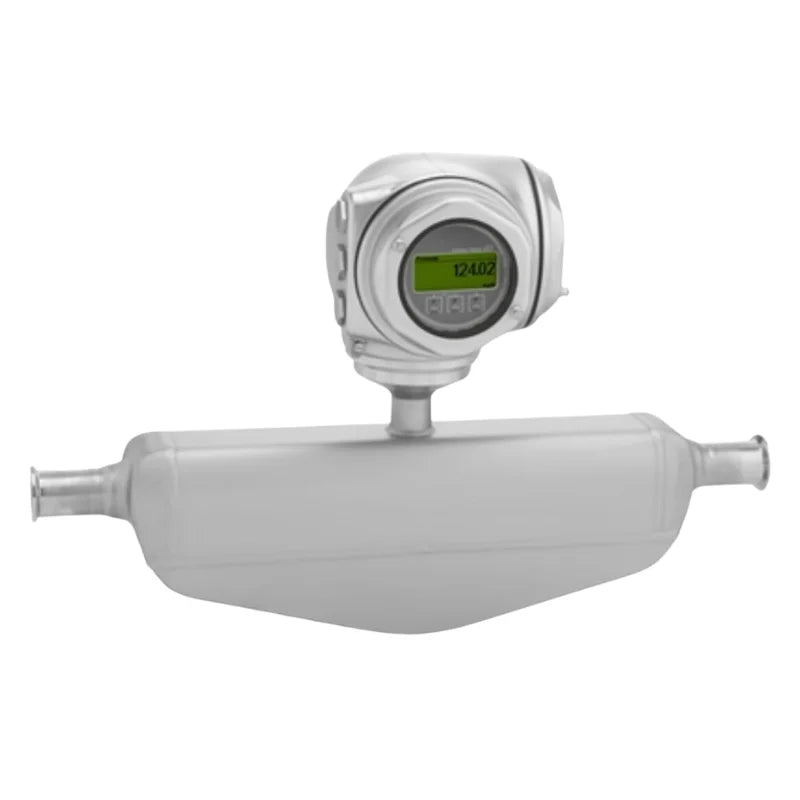

Endress+Hauser Proline Promass S300 8S3B Coriolis Flowmeter

Availability: In stock

Product type: Flow Measurement

Vendor: Endress+Hauser

Precio habitual ~~$2,680.00~~ $2,680.00 Oferta

Overview Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter Specs at a glance * Max. measurement errorMass flow (liquid): ±0.10 %Volume flow (liquid): ±0.10 %Density (liquid):...

Precio habitual ~~$2,680.00~~ $2,680.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter

Specs at a glance

* Max. measurement error
Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 70 000 kg/h (0 to 2570 lb/min)
* Medium temperature range
–50 to +150 °C (–58 to +302 °F)
* Max. process pressure
PN 40, Class 150, 20K
* Wetted materials
Measuring tube: 1.4435 (316L)

Application

Promass S is at the forefront in hygienic design and dedicated to applications in the food and beverage industry requiring optimal cleanability. The self‐drainable single-tube system ensures careful treatment of fluids. With its compact transmitter Promass S300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables process safety at all times.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Dedicated to applications requiring optimal cleanability under hygienic conditions.
Device properties
* Large range of hygienic process connections
* 3-A and EHEDG conform
* Fast recovery from CIP/SIP
* Compact dual-compartment housing with up to 3 I/Os
* Backlit display with touch control and WLAN access
* Remote display available

Benefits

* Increased process safety – easily cleanable and fully self-drainable tube design
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in-/outlet run needs
* Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
* Reduced complexity and variety – freely configurable I/O functionality
* Integrated verification – Heartbeat Technology

Specification

item	value
Warranty	1 Year
Customized support	OEM
Brand Name	Endress+Hauser
Model Number	Promass 3100
Type	Coriolis meters, Coriolis flowmeter
Material	316/316L
Product Headline	Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter. Dedicated to applications requiring optimal cleanability under hygienic conditions.
Sensor Features	Increased process safety – easily cleanable and fully self-drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Large range of hygienic process connections. 3-A and EHEDG conform. Fast recovery from CIP/SIP.
Transmitter features	Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
Nominal diameter range	DN 8 to 50 (⅜ to 2")
Wetted Materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. Measurement Error	Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 70 000 kg/h (0 to 2570 lb/min)
Max. Process Pressure	PN 40, Class 150, 20K
Medium Temperature Range	–50 to +150 °C (–58 to +302 °F)
Ambient Temperature Range	Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F)
Sensor Housing Material	1.4301 (304), corrosion resistant
Transmitter Housing Material	AlSi10Mg, coated; stainless steel for hygenic transmitter design
Degree Of Protection	IP66/67, type 4X enclosure IP69
Display/Operation	4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available
Outputs	3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs	Status input 4-20 mA input
Digital Communication	HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power Supply	DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals	ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety	CE, C-tick, EAC marking
Functional Safety	Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine Approvals And Certificates	LR approval, DNV approval, ABS approval, BV approval, CCS approval
Pressure Approvals And Certificates	PED, CRN
Material Certificates	3.1 material
Hygienic Approvals And Certificates	3‐A, EHEDG, cGMP
