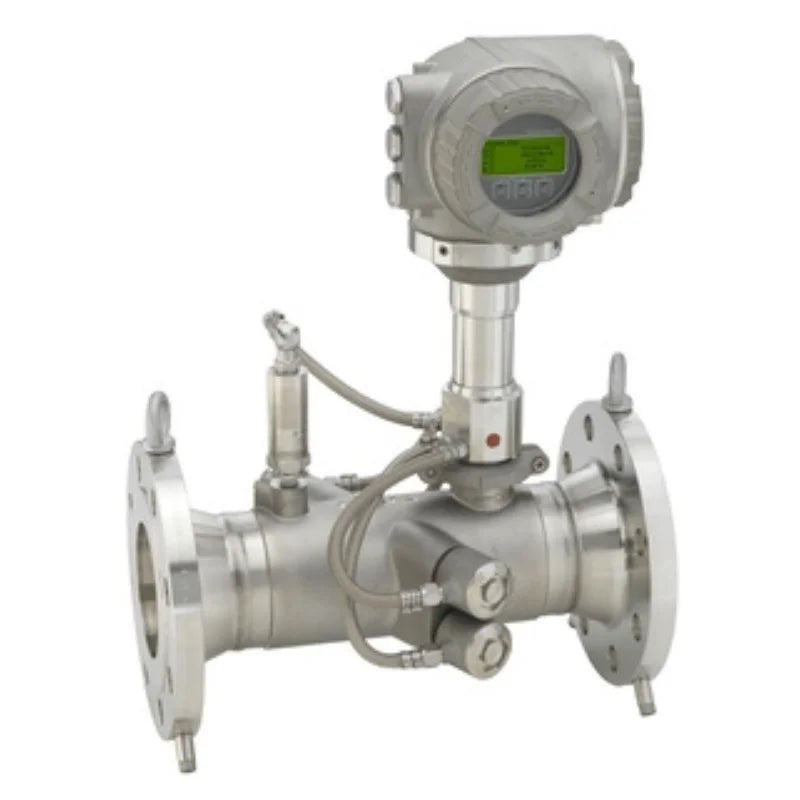

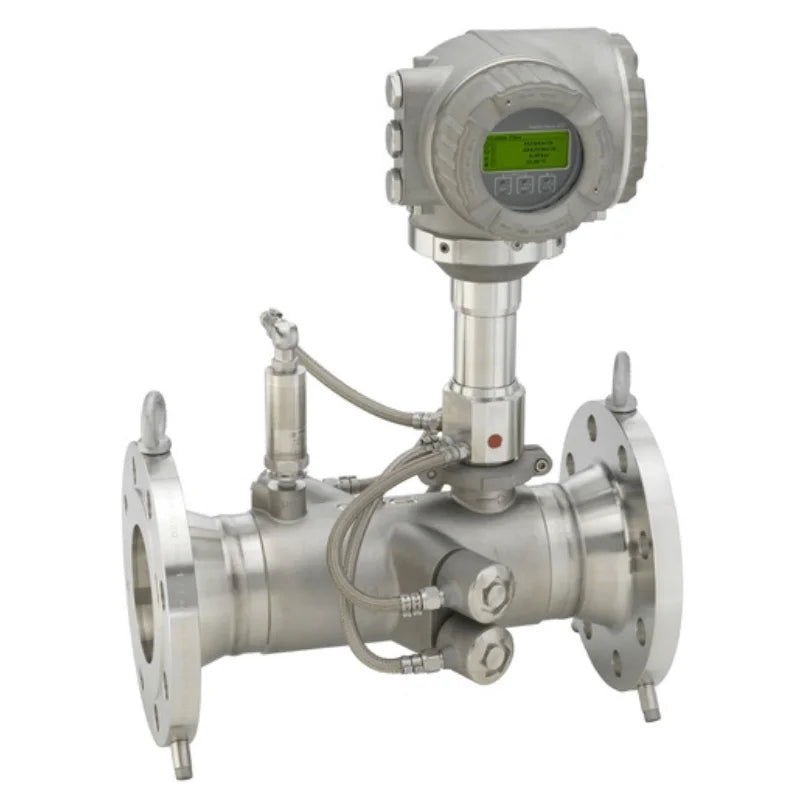

Endress+Hauser Proline Prosonic Flow G500 9G5B Ultrasonic Flowmeter

Availability: In stock

Product type: Flow Measurement

Vendor: Endress+Hauser

Precio habitual ~~$2,850.00~~ $2,850.00 Oferta

Overview Highly robust gas specialist for fluctuating process conditions as remote version with up to 4 I/Os. Specs at a glance Max. measurement errorVolume flow (standard):‐ ±1.0 %...

Precio habitual ~~$2,850.00~~ $2,850.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

Highly robust gas specialist for fluctuating process conditions as remote version with up to 4 I/Os.

Specs at a glance

Max. measurement error
Volume flow (standard):
‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s)
‐ ±2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s)
Volume flow (optional calibration):
‐ ±0.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s)
‐ ±1.0 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s)
Corrected volume flow (standard):
‐ ±1.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s)
‐ ±2.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s)
Corrected volume flow (optional calibration):
‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s)
‐ ±1.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s)
Sound Velocity: ±0.2 % o.r.
Measuring range
Gas: 0.3 m/s to 40 m/s
Medium temperature range
-50 to 150 °C (-58 to +302°F)
-50 to 100 °C (-58 to +212°F) with integrated pressure cell
Max. process pressure
0.7 to 101 bar a (10.15 to 1464.88 psi a)
Wetted materials
Measuring tube: 1.4408/1.4409 (CF3M)
Transducer: 1.4404 (316, 316L, Titan Grade 2

Application

For a wide range of gas applications Prosonic Flow G provides reliable flow measurement, even with wet gas and changing gas properties and compositions. A pressure-rated sensor housing with rupture disc limits safety risks. The innovative remote transmitter maximizes installation flexibility and operational safety in demanding nvironments. Heartbeat Technology ensures compliance and process safety at all times.
* The measuring principle is unaffected by gas composition
* Accurate measurement of natural and process gas in the chemical as well as oil and gas industries. Device properties:
* Direct measurement: flow, pressure & temperature
* Wetted parts: titanium / 316L
* Maximum measuring accuracy: 0.5 %
* Remote version with up to 4 I/Os
* Backlit display with touch control and WLAN access
* Standard cable between sensor and transmitter

Benefits

* Flexible device with user-definable gas mixtures for demanding measuring tasks
* Maximum reliability even with humid or wet gas – sensor design insensitive to condensate
* High-performance process control – real-time pressure- and temperature-compensated values
* Efficient solution – multivariable, no pressure loss
* Full access to process and diagnostic information – numerous, freely combinable I/Os
* Reduced complexity and variety – freely configurable I/O functionality
* Integrated verification – Heartbeat Technology

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	Prosonic Flow G300
Type	Ultrasonic flow meters
Product Headline	Highly robust gas specialist for fluctuating process conditions as remote version with up to 4 I/Os. Flexible device with user-definable gas mixtures for demanding measuring tasks. Accurate measurement of natural and process gas in the chemical as well as oil and gas industries.
Sensor Features	Maximum reliability even with humid or wet gas – sensor design insensitive to condensate. High-performance process control – real-time pressure- and temperature-compensated values. Efficient solution – multivariable, no pressure loss. Direct measurement: flow, pressure & temperature. Wetted parts: titanium / 316L. Maximum measuring accuracy: 0.5 %.
Transmitter Features	Full access to process and diagnostic information – numerous, freely combinable I/Os. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.
Nominal Diameter Range	DN 25 to 300 (1 to 12")
Wetted Materials	Measuring tube: 1.4408/1.4409 (CF3M) Transducer: 1.4404 (316, 316L, Titan Grade 2
Measured Variables	Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass
Max. Measurement Error	Volume flow (standard): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Volume flow (optional calibration): ‐ ±0.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.0 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (standard): ‐ ±1.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (optional calibration): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.5 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Sound Velocity: ±0.2 % o.r.
Measuring Range	Gas: 0.3 m/s to 40 m/s
Max. Process Pressure	0.7 to 101 bar a (10.15 to 1464.88 psi a)
Medium Temperature Range	-50 to 150 °C (-58 to +302°F) -50 to 100 °C (-58 to +212°F) with integrated pressure cell
Ambient Temperature Range	-40 to 60 °C(-40 to +140 °F) Optional: -50 to 60 °C(-58 to +140 °F)
Sensor Housing Material	Stainless Steel, 1.4404(316/316L), 1.4408/1.4409 (CF3M)
Transmitter Housing Material	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L Polycarbonate
Degree Of Protection	Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with Touch Control (operation from outside) Configuration via local display and operating tools possible
Outputs	4 outputs: 4-20 mA HART (active/passive) 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs	Status input 4-20 mA input
Digital Communication	HART, Modbus RS485
Power Supply	AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals	ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC
Product Safety	CE, C-tick
Functional Safety	Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a
Pressure Approvals And Certificates	PED, CRN
Material Certificates	3.1 material NACE MR0175/MR0103
