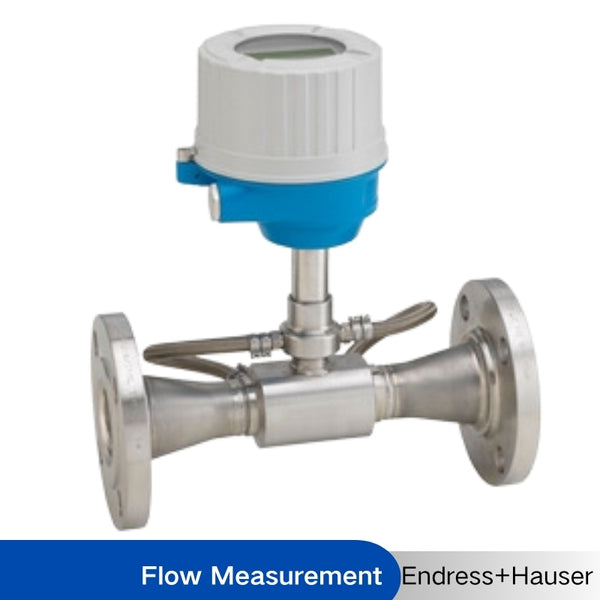

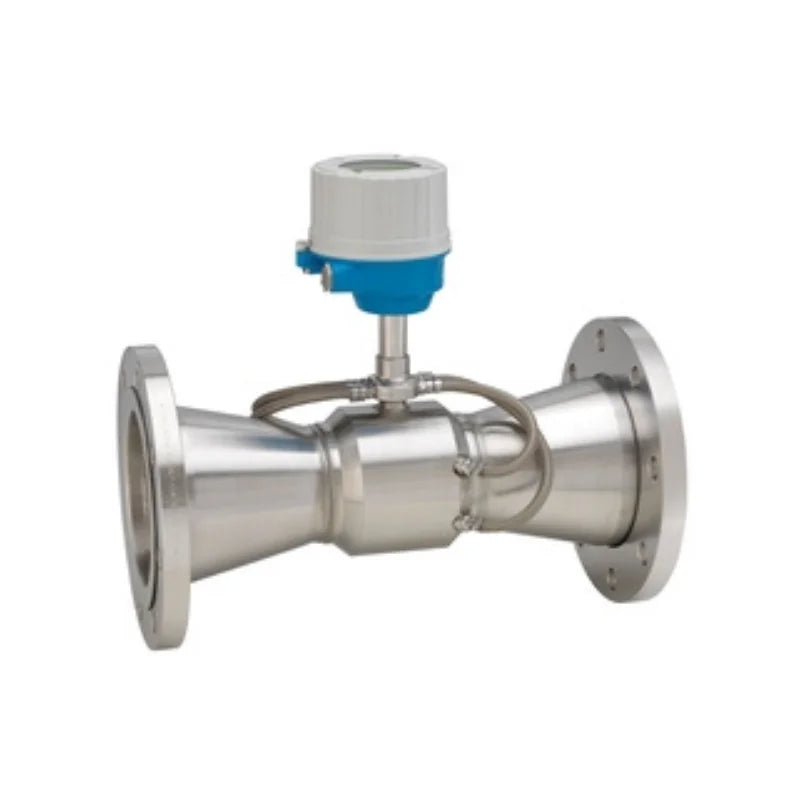

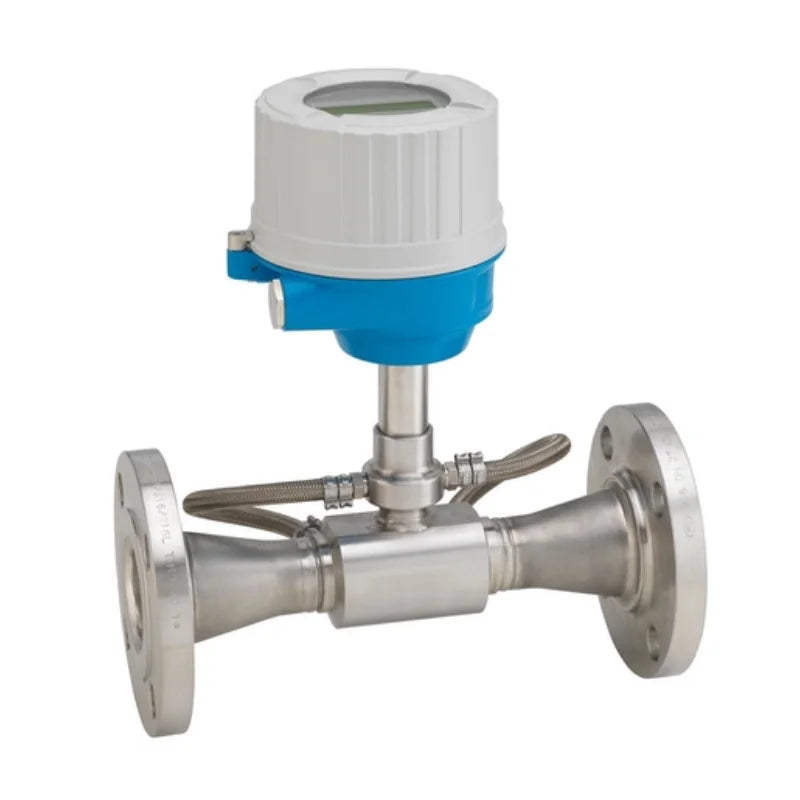

Endress+Hauser Proline Prosonic Flow E 100 9E1B Ultrasonic Flowmeter

Availability: In stock

Product type: Flow Measurement

Vendor: Endress+Hauser

Precio habitual ~~$2,600.00~~ $2,600.00 Oferta

Overview Economical Ultrasonic flowmeter with integrated temperature measurement. Specs at a glance * Max. measurement error Volume flow: - ± 0.5 % o.r. ± 0.02% o.f.s. for 0.5...

Precio habitual ~~$2,600.00~~ $2,600.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

Economical Ultrasonic flowmeter with integrated temperature measurement.

Specs at a glance

* Max. measurement error
Volume flow:
- ± 0.5 % o.r. ± 0.02% o.f.s. for 0.5 to 10 m/s (1.6 to 33 ft/s)
- ± 0.07 % o.f.s. for flow velocities < 0.5 m/s (1.64 ft/s)
* Measuring range
0.025 to 5 m/s (0.02 to 16.4 ft/s)
0 to 6360 dm3/min (0 to 1680 gal/min)
* Medium temperature range
0 to 150° (17.8 to 302 °F)
* Max. process pressure
PN 25 / ASME Cl. 150
* Wetted materials
Measuring tube: 1.4301 (F304)
Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1,4306 (F304L); 1.4307 (F304L); A105

Application

Measuring of demineralized water in utilities, for example in boiler condensate return lines, requires reliable devices. Prosonic Flow E 100 provides economical and accurate bidirectional flow measurement across all industries. With its integrated temperature measurement, Prosonic Flow E 100 proves to be a multivariable flowmeter for considerable additional value in your plant. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
* The measuring principle is independent of pressure, density, temperature and conductivity
* Bidirectional measuring of demineralized water applications for utilities, e.g. boiler condensate return lines. Device properties:
* Accuracy up to ±0.5 % (flow) or acc. to EN 1434 Cl. 2, ±2.0 °C (± 3.6 °F) (temp.)
* Process temperatures up to 150 °C (302 °F)
* Entire meter housing made of stainless steel
* 4-20 mA HART, pulse/frequency output
* Local display for reading and monitoring available
* Robust transmitter housing

Benefits

* Long-term stability – reliable, robust sensor
* Reducing further measuring point – multivariable device
* Dependable flow measurement – high turndown (200:1)
* Time-saving local operation without additional software and hardware – integrated web server
* Extended calibration intervals – integrated device verification due to Heartbeat Technology
* Easy commissioning – brief parameter explanations

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	Prosonic Flow E100
Type	Ultrasonic flow meters
Product Headline	Economical Ultrasonic flowmeter with integrated temperature measurement. Bidirectional measuring of demineralized water applications for Utilities, e.g. boiler condensate return lines.
Sensor Features	Long-term stability – reliable, robust sensor. Reducing further measuring point – multivariable device. Dependable flow measurement – high turndown (200:1). Measurement accuracy up to ±0.5 % (flow) or according to EN 1434 Cl. 2, ±2.0 °C (± 3.6 °F) (temperature). Process temperatures up to 150 °C (302 °F). Entire meter housing made of stainless steel.
Transmitter Features	Time-saving local operation without additional software and hardware – integrated web server. Extended calibration intervals – integrated device verification due to Heartbeat Technology. Easy commissioning – brief parameter explanations. 4-20 mA HART, pulse/frequency output. Local display for reading and monitoring available. Robust transmitter housing.
Nominal Diameter Range	DN 50 to 150 (2"to 6")
Wetted Materials	Measuring tube: 1.4301 (F304) Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1,4306 (F304L); 1.4307 (F304L); A105
Measured Variables	Volume flow, calculated mass flow, flow velocity, sound velocity, temperature
Max. Measurement Error	Volume flow: - ± 0.5 % o.r. ± 0.02% o.f.s. for 0.5 to 10 m/s (1.6 to 33 ft/s) - ± 0.07 % o.f.s. for flow velocities < 0.5 m/s (1.64 ft/s)
Measuring Range	0.025 to 5 m/s (0.02 to 16.4 ft/s) 0 to 6360 dm3/min (0 to 1680 gal/min)
Max. Process Pressure	PN 25 / ASME Cl. 150
Medium Temperature Range	0 to 150° (17.8 to 302 °F)
Ambient Temperature Range	-20 to 60 °C (-4 to 140 °F)
Sensor Housing Material	Stainless steel
Transmitter Housing Material	Compact: AlSi10Mg, coated Stainless steel, 1.4301
Degree Of Protection	Standard: IP66/67, Type 4X enclosure With opened housing: IP20, Type 1 enclosure
Display/Operation	4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible
Outputs	4‐20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Power Supply	DC 19.2 to 28.8 V
Hazardous Area Approvals	None
Product Safety	CE, C-Tick, EAC marking
Metrological Approvals And Certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) Calibration according to EN 1434 Class 2
Pressure Approvals And Certificates	PED
Material Certificates	3.1 material
