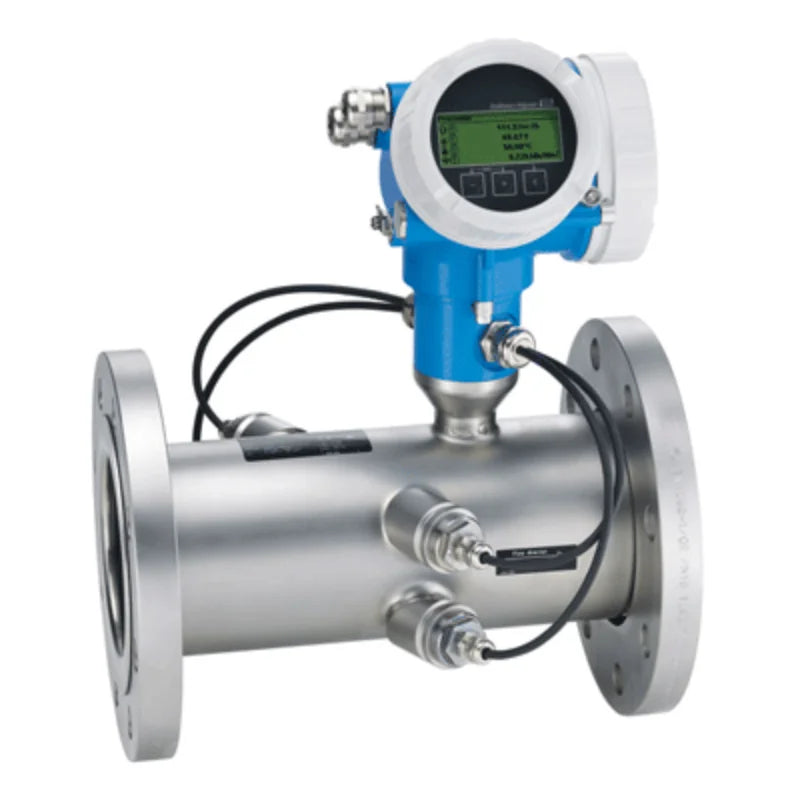

Endress+Hauser Proline Prosonic Flow B 200 9B2B Ultrasonic Flowmeter

Availability: In stock

Product type: Flow Measurement

Precio habitual ~~$2,580.00~~ $2,580.00 Oferta

Overview The device for accurate, reliable biogas measurement with loop-powered technology. Specs at a glance * Max. measurement errorVolume flow (standard):‐ ±1.5 % o.r. for 3 to 30...

Precio habitual ~~$2,580.00~~ $2,580.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

The device for accurate, reliable biogas measurement with loop-powered technology.

Specs at a glance

* Max. measurement error
Volume flow (standard):
‐ ±1.5 % o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s)
‐ ±3 % o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s)
Volume flow (option):
‐ ±0.1 % o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s)
‐ ±1.5 % o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s)
* Measuring range
Standard: 1 to 30 m/s (3.28 to 98.4 ft/s)
Option: 0.3 to 30 m/s (0.98 to 98.4 ft/s)
* Medium temperature range
0 to +80 °C (+32 to +176 °F)
* Max. process pressure
11 bar a (159 psi a)
* Wetted materials
Sensor: 1.4404/1.4435 (316L)
Transducer: HNBR
Temperature sensor (option): AFM 34

Application

Prosonic Flow B 200 is the specialist for accurate and reliable measurement of wet biogas and digester gas,even under fluctuating process conditions. With its unique integrated real-time methane fraction analysis, Prosonic Flow B 200 enables continuous measurement and monitoring of gas flow as well as gas quality. In addition to efficient process control and energy balancing, Heartbeat Technology enables compliance and process safety at all times.
* The measuring principle is unaffected by gas composition
* Inline flowmeter designed for wet biogas and digester gas under fluctuating process conditions. Device properties:
* Multivariable device: flow, temperature and methane
* Medium temperature: 0 to 80 °C (32 to 176 °F)
* Process pressure: 0.7 to 11 bar a (10.2 to 159 psi a)
* Loop-powered technology
* Robust dual-compartment housing
* Plant safety: worldwide approvals

Benefits

* Integrated real-time methane fraction measurement
* Optimized for low pressure gas – specialized sensor design
* No additional pressure loss – full bore design
* Process transparency – diagnostic capability
* Convenient device wiring – separate connection compartment
* Safe operation – no need to open the device due to display with touch control, background lighting
* Integrated verification – Heartbeat Technology

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	Prosonic Flow B200
Type	Ultrasonic flow meters
Product Headline	The device for accurate, reliable biogas measurement with loop-powered technology. Inline flowmeter designed for measurement of wet biogas and digester gas under fluctuating process conditions.
Sensor Features	Optimized for low pressure gas – specialized sensor design. No additional pressure loss – full-bore design. Process transparency – diagnostic capability. Multivariable device: flow, temperature and methane. Medium temperature: 0 to 80 °C (32 to 176 °F). Process pressure: 0.7 to 11 bar a (10.2 to 159 psi a).
Transmitter Features	Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals.
Nominal Diameter Range	Single‐path version: DN 50 (2"), DN 80 (3") Two‐path version: DN 100 to 200 (4 to 8")
Wetted Materials	Sensor: 1.4404/1.4435 (316L) Transducer: HNBR Temperature sensor (option): AFM 34
Measured Variables	Volume flow, corrected volume flow, corrected methane volume flow, energy flow, methane fraction, calorific value, temperature
Max. Measurement Error	Volume flow (standard): ‐ ±1.5 % o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s) ‐ ±3 % o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s) Volume flow (option): ‐ ±0.1 % o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s) ‐ ±1.5 % o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s)
Measuring Range	Standard: 1 to 30 m/s (3.28 to 98.4 ft/s) Option: 0.3 to 30 m/s (0.98 to 98.4 ft/s)
Max. Process Pressure	11 bar a (159 psi a)
Medium Temperature Range	0 to +80 °C (+32 to +176 °F)
Ambient Temperature Range	Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Transmitter Housing Material	AlSi10Mg, coated; 1.4404 (316L)
Degree Of Protection	IP66/67, type 4X enclosure
Display/Operation	4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible
Outputs	4‐20 mA HART (passive) 4‐20 mA (passive) Pulse/frequency/switch output (passive)
Inputs	Current input 4‐20 mA (passive)
Digital Communication	HART
Power Supply	DC 12 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) DC 12 to 30 V (4‐20 mA HART, 4‐20 mA) DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input) DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch Output)
Hazardous Area Approvals	ATEX, IECEx, cCSAus, NEPSI, INMETRO, JPN
Metrological Approvals And Certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Pressure Approvals And Certificates	PED
Material Certificates	3.1 material (wetted parts)
