Overview

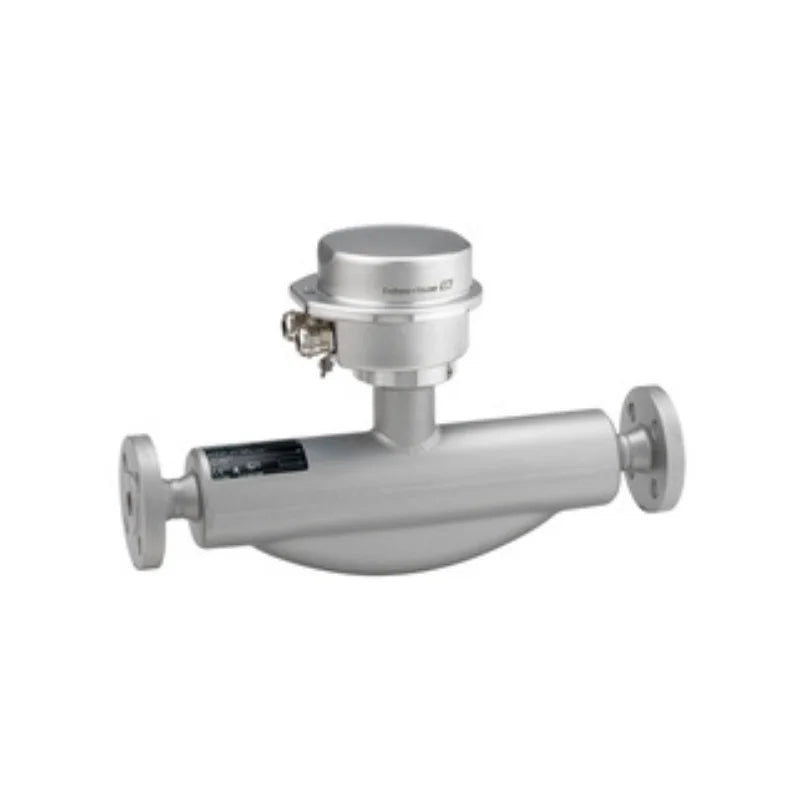

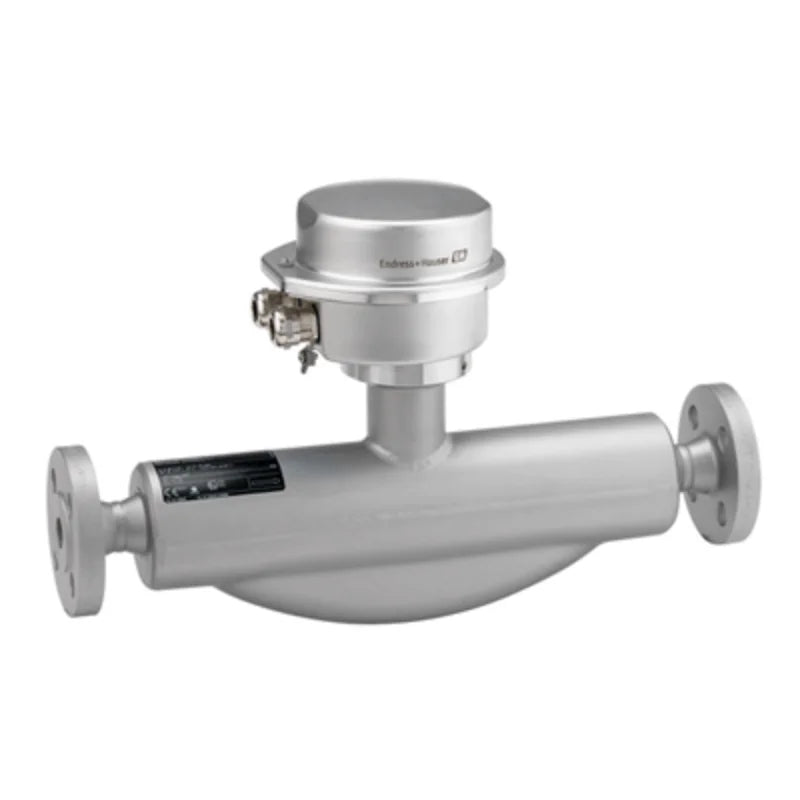

The flowmeter with premium accuracy, robustness and an ultra-compact transmitter.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
* Medium temperature range
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58…+464 °F)
* Max. process pressure
PN 100, Class 600, 63K
* Wetted materials
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
* Medium temperature range
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58…+464 °F)
* Max. process pressure
PN 100, Class 600, 63K
* Wetted materials
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Application
Promass F has a long standing reputation as a highly accurate device under varying process conditions. It is suited for broadest range of applications. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Promass F 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers. Available with an extra-compact stainless steel hygienic housing it can be placed even into the most compact rigs.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Highest measurement performance for liquids and gases under varying, demanding process conditions.
Device properties
* Mass flow: measured error ±0,05 % (PremiumCal)
* Rated secondary containment up to 40 bar (580 psi)
* Nominal diameter: DN 8 to 250 (3/8 to 10")
* Robust, ultra-compact transmitter housing
* High ingress protection: IP69K
* Local display available
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Highest measurement performance for liquids and gases under varying, demanding process conditions.
Device properties
* Mass flow: measured error ±0,05 % (PremiumCal)
* Rated secondary containment up to 40 bar (580 psi)
* Nominal diameter: DN 8 to 250 (3/8 to 10")
* Robust, ultra-compact transmitter housing
* High ingress protection: IP69K
* Local display available
Benefits
* Highest process safety – immune to fluctuating and harsh environments
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in/outlet run needs
* Space-saving transmitter – full functionality on smallest footprint
* Time-saving local operation without additional software and hardware – integrated web server
* Integrated verification – Heartbeat Technology
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in/outlet run needs
* Space-saving transmitter – full functionality on smallest footprint
* Time-saving local operation without additional software and hardware – integrated web server
* Integrated verification – Heartbeat Technology
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Switzerland
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Promass F100
|
|
Type
|
Coriolis meters, Coriolis flowmeter
|
|
Measuring Principle
|
Coriolis
|
|
Product Headline
|
Flowmeter with premium accuracy, robustness and an ultra-compact transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. |
|
Sensor Features
|
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement
(flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature up to +240 °C (+464 °F). Nominal diameter: DN 8 to 250 (³⁄₈ to 10"). |
|
Transmitter Features
|
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software
and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available. |
|
Nominal Diameter Range
|
DN 8 to 250 (⅜ to 10")
|
|
Wetted Materials
|
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) |
|
Measured Variables
|
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
|
|
Max. Measurement Error
|
Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³ |
|
Measuring Range
|
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
|
|
Max. Process Pressure
|
PN 100, Class 600, 63K
|
|
Medium Temperature Range
|
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58…+464 °F) |
|
Ambient Temperature Range
|
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F) |
|
Sensor Housing Material
|
1.4301/1.4307 (304L), corrosion resistant
|
|
Transmitter Housing Material
|
Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304), 1.4404 (316L) |
|
Degree Of Protection
|
Standard: IP66/67, type 4X enclosure
Option: IP69 |
|
Display/Operation
|
4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible |
|
Outputs
|
4‐20 mA HART (active)
Pulse/frequency/switch output (passive) |
|
Inputs
|
None
|
|
Digital Communication
|
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
|
|
Power Supply
|
DC 20 to 30 V
|
|
Hazardous Area Approvals
|
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC
|
|
Product Safety
|
CE, C-Tick, EAC marking
|
|
Metrological Approvals And Certificates
|
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
|
Marine Approvals And Certificates
|
ABS (American Bureau of Shipping)
BV (Bureau Veritas) LR (Lloyds Register) BV approval CCS approval |
|
Pressure Approvals And Certificates
|
PED, CRN, AD 2000
|
|
Material Certificates
|
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK |
|
Hygienic Approvals And Certificates
|
3-A, EHEDG, cGMP
|
