Overview

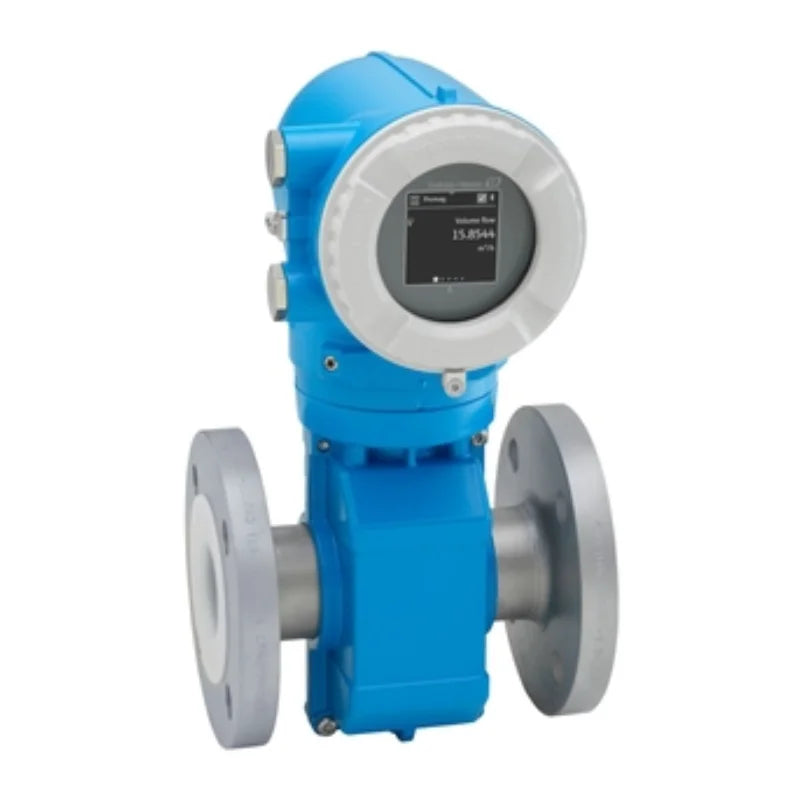

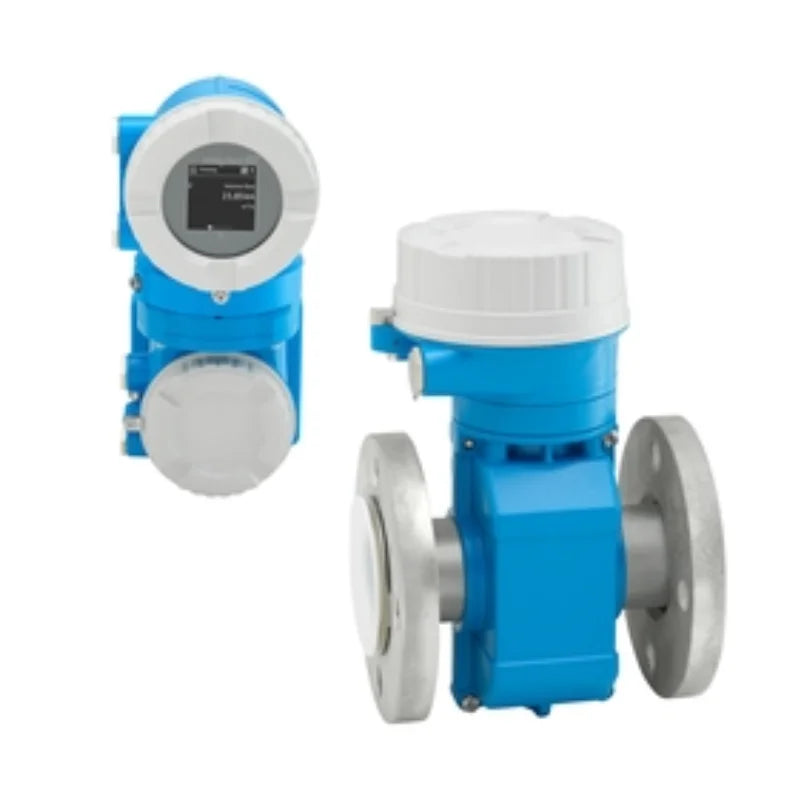

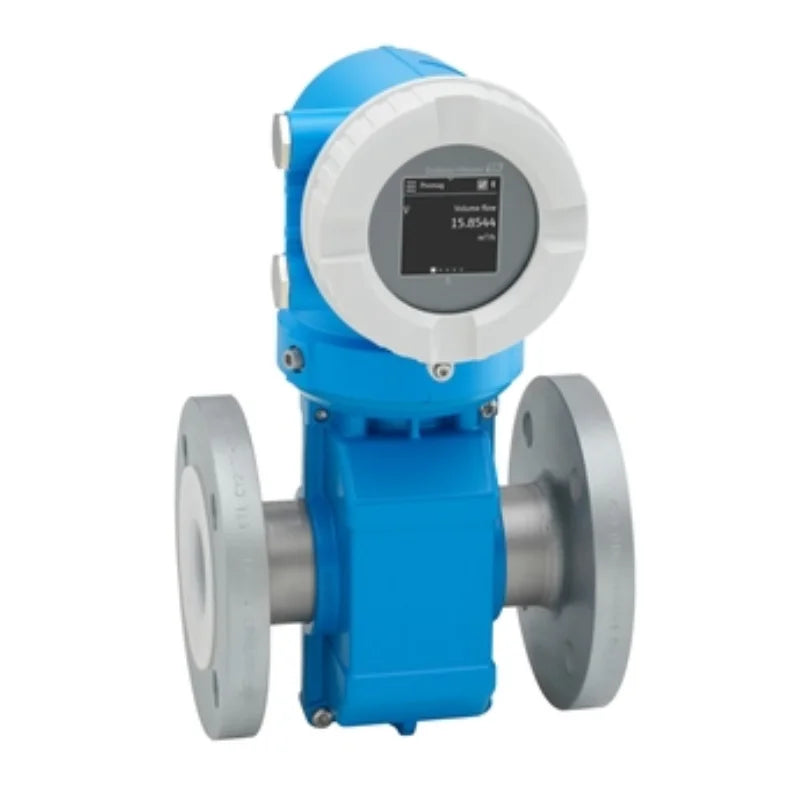

Endress+Hauser Proline Promag P10 Electromagnetic Flowmeter is a flowmeter for basic process applications with easy-to-use operation concept.
Specs at a glance
* Max. measurement error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
* Measuring range
4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
* Medium temperature range
Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
* Max. process pressure
PN 40, Class 300, 20K
*Wetted materials
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Field of application
Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With its straightforward hard- and software design, Promag P 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables safe processes.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
* Dedicated to chemical and process applications with corrosive liquids.
Device properties
* Nominal diameter: max. DN 600 (24")
* All common Ex approvals
* Liner made of PTFE or PFA
* System integration with HART, Modbus RS485
* Flexible operation with app and optional display
Benefits
* Diverse applications – wide variety of wetted materials
* Energy-saving flow measurement – no pressure loss due to cross section constriction
* Maintenance-free – no moving parts
* Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
* Simple, time-saving commissioning – guided parameterization in advance and in the field
* Integrated verification – Heartbeat Technology
Specification
| item | value |
| Warranty | 1 Year |
| Customized support | OEM |
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Model Number | Proline Promag P10 |
| Type | electromagnetic flowmeter |
| Product Headline | Flowmeter for basic process applications with easy-to-use operation concept. Dedicated to chemical and process applications with corrosive liquids. |
| Sensor Features | Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA. |
| Transmitter Features | Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485. Flexible operation with app and optional display. |
| Nominal Diameter Range | DN 15 to 600 (½ to 24") |
| Wetted materials | Liner: PFA; PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium |
| Measured Variables | Volume flow, conductivity, mass flow |
| Max. Measurement Error | Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s) |
| Measuring Range | 4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min) |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Medium Temperature Range | Liner material PFA: –20 to +150 °C (–4 to +302 °F) Liner material PTFE: –40 to +130 °C (–40 to +266 °F) |
| Ambient Temperature Range | * Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) |
| Sensor Housing Material | DN 15 to 300 (½ to 12""): AlSi10Mg, coated DN 350 to 600 (14 to 24""): Carbon steel with protective varnish |
| Transmitter Housing Material | AlSi10Mg, coated |
| Degree Of Protection | Standard: IP66/67, Type 4X enclosure |
| Display/Operation | 2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA |
| Digital Communication | HART, MODBUS RS485 |
| Power Supply | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Hazardous Area Approvals | ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, KC, JPN, UK Ex |
| Metrological Approvals And Certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Driking water approvals: ACS; NSF61, WRAS |
