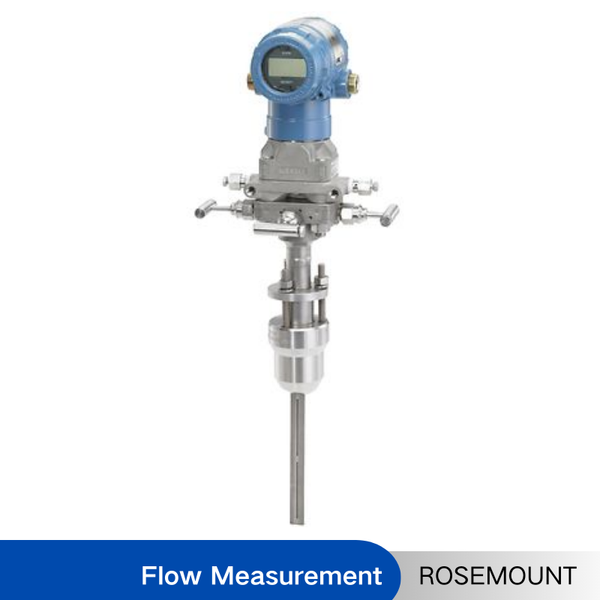

Rosemount™ 2051CFA Annubar™ Flow Meter
Featuring industry-standard performance, the Rosemount 2051CFA Annubar Flow Meter provides dependable flow measurements via mulitple communication protocols including WirelessHART® technology. The patented Annubar sensor design is able to deliver accuracy over a wide flow range, maintain a small profile in the pipe, and provide flow and pressure measurements via a signal pipe penetration. This safety-certified flow meter is engineered with a local operator interface (LOI) for field commissioning.
Benefits
* Patented T-shape Annubar creates a fixed separation point for DP signal improvement over a wider flow rate
* Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
* T-shape design of averaging pitot tube ensures very low permanent pressure loss
* Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
* Sensor stagnation zone positioned to reduce noise, measurement inaccuracies and keeps particulates from clogging
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Specification
|
Item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
ROSEMOUNT
|
|
Model Number
|
2051CFA
|
|
Rangedown
|
Up to 1000 inH2O (2,48 bar) differential
|
|
Line Size
|
2 to 12 in. (50 to 300 mm)
|
|
Output
|
Differential pressure, scaled variable
|
|
Communication Protocol
|
4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
|
|
Measurement Range
|
Up to 10000 psig (689,47 bar) Gage, Up to 10000 psia (689,47bar) Absolute
|
|
Process Wetted Material
|
316 SST
|
|
Diagnostics
|
Basic Diagnostics
|
|
Certifications/Approvals
|
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of
certifications |
|
Wireless Update Rate
|
5 sec. to 60 min., user selectable
|
|
Power Module Life
|
Up to 10-year life, field replaceable (order separately)
|
|
Wireless Range
|
Internal antenna (225 m)
|
