Overview

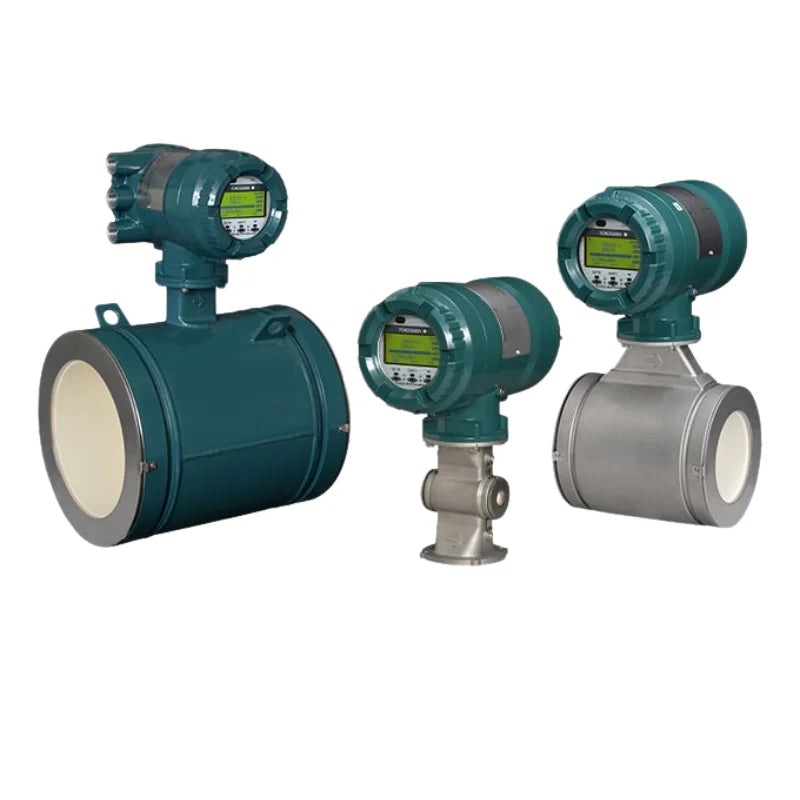

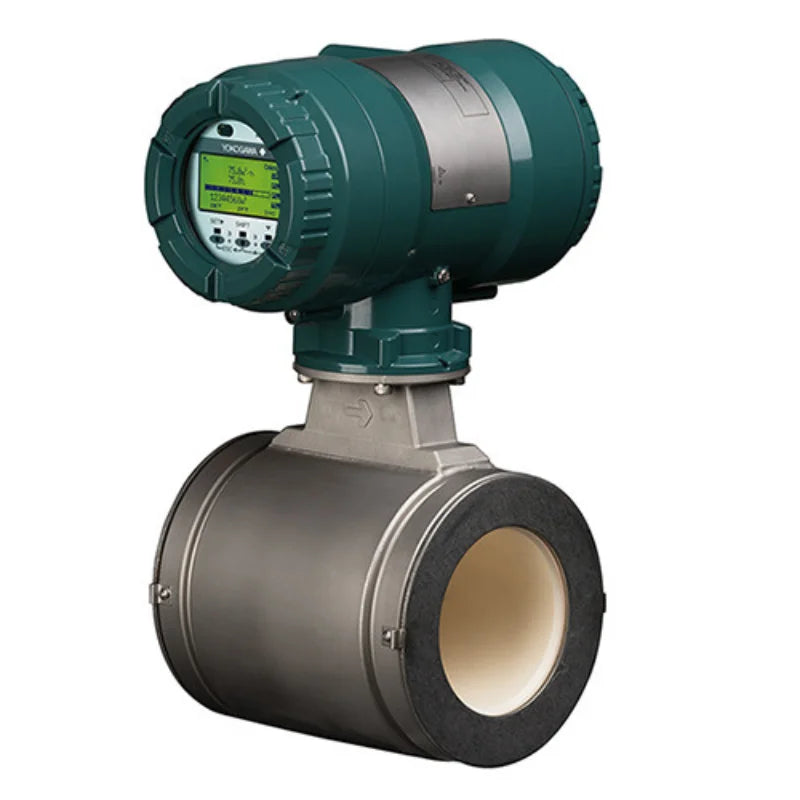

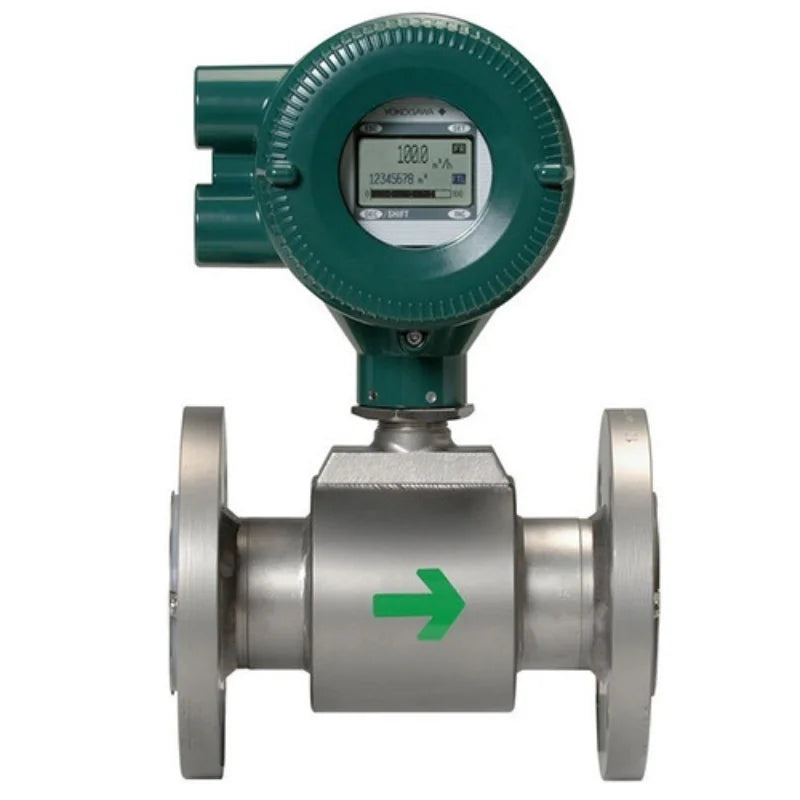

Magnetic Flowmeter CA Series
The magnetic flowmeters CA Series can measure fluids that are difficult to measure with other magnetic flowmeters. For example,high-concentration slurry fluids, insulator-adhesive fluids, and ultra-low-conductivity fluids.
In addition, the CA Series is designed with the Total Insight concept. The display has excellent visibility due to its dot matrix and backlight. Also, if you use the verification function, you can diagnose the equipment and easily check the status of the
equipment.
In addition, the CA Series is designed with the Total Insight concept. The display has excellent visibility due to its dot matrix and backlight. Also, if you use the verification function, you can diagnose the equipment and easily check the status of the
equipment.
Magnetic Flowmeter CA Series Debut
The CA Series promises stable measurement even for fluids that are considered difficult to measure, such as slurry fluids and adhesive fluids.
The design based on the Total Insight concept improves operability and maintainability for customers.
The design based on the Total Insight concept improves operability and maintainability for customers.
About Magnetic Flowmeters CA Series

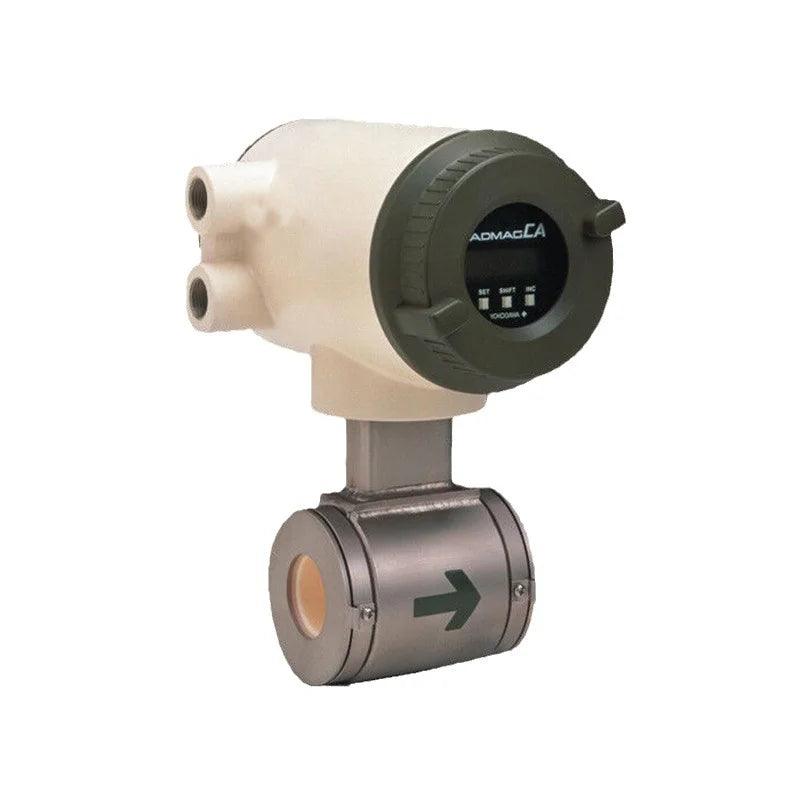

The CA Series is the successor to the ADMAG CA series.The sensor structure inherits the structure of ADMAG CA.The transmitter has evolved with the design of the Total Insight concept.
Sensor Structure
Structure That Can Be Measured Even in Highly Concentrated Slurry or Insulator-Adhering Fluids
* Electrodes not in contact with fluid
* High-purity alumina ceramics measuring tube
* Electrodes not in contact with fluid
* High-purity alumina ceramics measuring tube
Slurry Fluids
Stable Measurement Is Possible Even in Fluids Containing Slurry Such as Latex and Calcium Carbonate
The CA Series electrode is structured so that it does not come into contact with the fluid. The highly concentrated slurry fluid does not come into contact with the electrodes. Therefore, electrical noise generated by contact between the slurry and the
electrode is not physically generated.
electrode is not physically generated.
Adhesive Fluids
Stable Measurement Is Possible Even for Fluids Containing Insulators Such as Waste Fluids and Red Mud The surface of the ceramic measuring tube is smoother (Ra 1.6) and has a structure that prevents insulation from sticking to it.
Even if an insulator adheres, the CA Series has no effect on measurement because of the measurement principle of the capacitive
equation.
Even if an insulator adheres, the CA Series has no effect on measurement because of the measurement principle of the capacitive
equation.
Ultra-Low Conductivity Fluids
Ultra-Low Conductivity Fluids Such as Pure Water Can Be Measured
Capacitive electrodes and high impedance circuits make it possible to measure ultra-low conductivity fluids.
Since the electrode is installed as a face electrode on the outside of the ceramic pipe, which is a measuring tube, the signal electromotive force is detected through the capacitance of the tube wall. In addition, the adoption of high-frequency excitation
and the realization of a high-impedance circuit at the signal input make it possible to reliably detect fluid electromotive force with minimal effect of fluid noise.
Since the electrode is installed as a face electrode on the outside of the ceramic pipe, which is a measuring tube, the signal electromotive force is detected through the capacitance of the tube wall. In addition, the adoption of high-frequency excitation
and the realization of a high-impedance circuit at the signal input make it possible to reliably detect fluid electromotive force with minimal effect of fluid noise.
* If the diameter is 100 mm or less, span error may occur when measuring fluids with conductivity of 0.1 µS/cm or less. Please consult us for fluid measurements with a conductivity of less than 0.1 µS/cm.
Easy Replacement
Customer Piping Can Be Replaced Without Modification
The lay length between the CA Series and ADMAG CA are the same. Therefore, there is no additional cost for customer plumbing.
The lay length between the CA Series and ADMAG CA are the same. Therefore, there is no additional cost for customer plumbing.
Total Insight
From Sensing to Sensemaking
* A common product concept for flowmeters that assist customers throughout the product lifecycle.
* Helps customers reduce operating costs throughout their entire product lifecycle.
* Solve your problems with outstanding technology and field domain knowledge.
* Helps customers reduce operating costs throughout their entire product lifecycle.
* Solve your problems with outstanding technology and field domain knowledge.
* The CA Series is a flowmeter designed by Total Insight's design concept.
Total Insight - Simplified Selection -
HART Communication
Improved connectivity with host devices
By supporting the world standard HART communication, it is easy to achieve uniform communication protocols for the entire plant.Uniform protocols also improve maintainability.
Improved connectivity with host devices
By supporting the world standard HART communication, it is easy to achieve uniform communication protocols for the entire plant.Uniform protocols also improve maintainability.
Total Insight - Smart Assist -
Wizard Function
Simple and easy setup by following the Wizard function on the display
Frequently used parameters can be set via a wizard function. Even first-time users can follow the flow and set it up with intuitive peace of mind. Setting time is also reduced because the set parameters are downloaded together to the device.
Frequently used parameters can be set via a wizard function. Even first-time users can follow the flow and set it up with intuitive peace of mind. Setting time is also reduced because the set parameters are downloaded together to the device.
Multiple Languages
Information can be checked in the language most suitable for the user
The language of the display unit can be selected from 9 languages. By displaying the optimal language for the user, it is possible to check the display information accurately in a short time.
* Available Languages: Japanese / English / Chinese / French / German / Italian / Spanish / Portuguese / Russian
The language of the display unit can be selected from 9 languages. By displaying the optimal language for the user, it is possible to check the display information accurately in a short time.
* Available Languages: Japanese / English / Chinese / French / German / Italian / Spanish / Portuguese / Russian
Transmitter Wiring Terminal
Choice of the Clamp type or M4 Screw type
Both clamp and screw types boast high reliability. The clamp type takes about half the wiring time as the screw drive.
Both clamp and screw types boast high reliability. The clamp type takes about half the wiring time as the screw drive.
Total Insight - Process Guard -
Dot Matrix Display / Backlight
A lot of information can be checked at a glance, visibility has also improved
The display is a dot matrix 4-line display. Even if the device is installed in a dark place, the information can be confirmed by the backlight, and the visibility is excellent.
* 64 x 128 dot LCD
The display is a dot matrix 4-line display. Even if the device is installed in a dark place, the information can be confirmed by the backlight, and the visibility is excellent.
* 64 x 128 dot LCD
Data Logging Function
Device itself acquires process data
Data is acquired on the built-in microSD card, so no other devices need to be prepared. You can understand the situation before and after a malfunction occurs, which enables quick troubleshooting. Up to three data points can be logged simultaneously.
Data is acquired on the built-in microSD card, so no other devices need to be prepared. You can understand the situation before and after a malfunction occurs, which enables quick troubleshooting. Up to three data points can be logged simultaneously.
Total Insight - Expert Solution -
Verification Function
Anyone Can Use a Unified Tool to Check Equipment Health
With the verification function, there is no need to remove the flowmeter from the piping during maintenance. Diagnostic results are generated as reports.The verification function is broadly divided into standard verification and extended verification.
Anyone Can Use a Unified Tool to Check Equipment Health
With the verification function, there is no need to remove the flowmeter from the piping during maintenance. Diagnostic results are generated as reports.The verification function is broadly divided into standard verification and extended verification.
Available microSD Card
Data copy time from microSD card to device is only 1 minute
Parameters set for the device can be saved on a microSD card. Parameters saved in microSD can be copied to another device and set.
It takes about 30 minutes to set the parameters manually. On the other hand, if you copy the parameters from the microSD, the
setting will be completed in about 1 minute, leading to a 97 % reduction.
Parameters set for the device can be saved on a microSD card. Parameters saved in microSD can be copied to another device and set.
It takes about 30 minutes to set the parameters manually. On the other hand, if you copy the parameters from the microSD, the
setting will be completed in about 1 minute, leading to a 97 % reduction.
Multiple Inputs and Outputs
Flexible Input and Output According to Application
Up to four input and output signals can be selected.
Up to four input and output signals can be selected.
![]()
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
Japan
|
|
Brand Name
|
YOKOGAWA
|
|
Model Number
|
Magnetic Flowmeter CA Series
|
|
Type
|
Variable Area Water Flowmeters, Electromagnetic meters, Other
|
|
Material
|
Ceramics PFA
|
|
Medium
|
Liquid adhesive fluids slurry fluids
|
|
Communication Protocol
|
HART
|
|
Inputs and Outputs
|
four inputs/outputs of current, pulse, and status signals
|
|
Construction
|
Integral type. Integrated structure of a sensor and a transmitter
|
|
Process Connection
|
Wafer is available. For the size range, read "MODEL AND SUFFIX CODE".
|
|
Electrode Construction
|
Non-wetted capacitance electrodes.
|
|
Grounding Ring Plate
|
Ring flat plate with mounting bracket
|
|
Transmitter Housing Material
|
Low copper aluminum alloy EN AC-43400
|
|
Output Signal
|
Current Output (Active) (Type A, E) 4 to 20 mA DC signal
|
|
Contact Capacity
|
30 V DC (OFF), 200 mA (ON)
|
