Overview
The ADMAG Total Insight (TI) seriesADMAG AXW magnetic flowmeter is a high-quality and highly reliable product developed based on years of experience and achievement, such as enhancement of application by our proprietary dual frequency excitation method.
ADMAG AXW is ideal for general industrial process lines and water supply/sewage applications.
ADMAG AXW is ideal for general industrial process lines and water supply/sewage applications.
With outstanding reliability and ease of operation and maintenance, developed on decades of field-proven experience, ADMAG AXW will increase your benefits while reducing total cost of ownership.
Main application example
It is an ideal product for general industrial processes and water and sewage applications.
A lining material with excellent wear resistance and corrosion resistance is available to provide highly accurate and stable flow measurement.
A lining material with excellent wear resistance and corrosion resistance is available to provide highly accurate and stable flow measurement.
|
Industries
|
Typical Line and Process
|
Typical Fluid
|
|
General Industry
|
- Water supply line
|
- Water - Fluid mainly composed of water |
|
Water supply and Sewage
|
- Pharmaceutical process- Drainage line |
- Clean water - Sewage - Drainage including oil |
Natural soft rubber
Polyurethane rubber
* Anti corrosive material
* For chemical industry
* Temp range: -10 to 130°C
* For chemical industry
* Temp range: -10 to 130°C
* Anti-abrasive material
* For general use (water application)
* Temp range: -10 to 40°C
* For general use (water application)
* Temp range: -10 to 40°C
Natural hard rubber (Ebonite)
Natural soft rubber
* Anti corrosive material
* For oily waste water
* Temp range: -5 to 80℃
* For oily waste water
* Temp range: -5 to 80℃
* Anti abrasive material
* For mining industry and so on
* Temp range: -10 to 70°C
* For mining industry and so on
* Temp range: -10 to 70°C
Cable Connection Checking Function
When installing multiple transmitters and detectors at one time, have you ever made a mistake in connecting cables?
ADMAG AXW diagnoses whether the transmitter and detector are connected in the correct combination.
This helps reduce start-up wasted time caused by incorrect cable connections.
This helps reduce start-up wasted time caused by incorrect cable connections.
Built-in Verification Function (Our proprietary patented technology)
Built-in verification diagnoses the integrity of the transmitter and detector.
As the soundness of the converter, it diagnoses three items: “Calculation circuit”, “Device status (error history)” and “Connection status”.
As the soundness of the converter, it diagnoses three items: “Calculation circuit”, “Device status (error history)” and “Connection status”.
We diagnose two of "magnetic circuit" and "excitation circuit" as soundness of the detector.Then, based on the results of these five soundness diagnoses, the soundness of the entire device is diagnosed.
Standard Verification
In addition to the diagnostic content of the built-in verification function, the standard verification function can inspect the appearance of the chassis and display board, and diagnose the dot missing of the LCD.
In addition, since the diagnosis results can be output as A4 size PDF, they can be used as supplementary data for reporting and management of inspection history. To use the standard verification function, separately purchase the "FSA130 ADMAG TI VerificationTool".
In addition, since the diagnosis results can be output as A4 size PDF, they can be used as supplementary data for reporting and management of inspection history. To use the standard verification function, separately purchase the "FSA130 ADMAG TI VerificationTool".
Enhanced Verification
The extended verification function can diagnose the soundness of current input / output, pulse output, transducer accuracy, and electrode insulation resistance by using external devices in addition to the standard verification diagnostic contents.
In addition, manual input of the diagnosis results not only increase the number of diagnosis items but also improve the diagnosis accuracy of the soundness. This also can output the diagnosis result as A4 size PDF.
To use the extended verification function, separately purchase the "FSA130 ADMAG TI Verification Tool".
To use the extended verification function, separately purchase the "FSA130 ADMAG TI Verification Tool".
Available microSD Card
Have you ever taken the time to backup device parameters, copy parameters to replacement devices, etc.?
Also, have you ever wanted to simply record process information without using an external device?
Also, have you ever wanted to simply record process information without using an external device?
With ADMAG AXW, you can install microSD card to the converter by selecting option.
Using the microSD card enables easy recording of process information in addition to backup / restore / duplication of parameters,
which is useful for improving maintenance work efficiency and analyzing process status.
Using the microSD card enables easy recording of process information in addition to backup / restore / duplication of parameters,
which is useful for improving maintenance work efficiency and analyzing process status.
Parameter Backup / Restore / Duplication Function
ADMAG AXW can be equipped with a microSD card (optional) and can backup / restore / duplicate parameter information using the microSD card or a memory with a built-in LCD.
|
Function
|
Description
|
|
Backup
|
Save parameter information to microSD card or memory with built-in LCD
|
|
Restore
|
Download parameter information to the same device (Device A to A)
|
|
Duplication
|
Download parameter information to other devices with the same model name and the same specification code (Device A to B)
|
Data Logging Function
Have you ever wanted to simply record process information without using an external device?
ADMAG AXW can be equipped with a microSD card (optional) and can store process information. This makes it possible to record process information simply if there is a device itself. Also, data is stored in text format. Therefore, analysis using spreadsheet software is also possible by importing data into a PC via a microSD card.
This function can record up to four process information simultaneously. Ten types of recordable process information are available. It is available to set the sampling cycle from 7 types and the continuous recording time from 8 types.
This function can record up to four process information simultaneously. Ten types of recordable process information are available. It is available to set the sampling cycle from 7 types and the continuous recording time from 8 types.
|
|

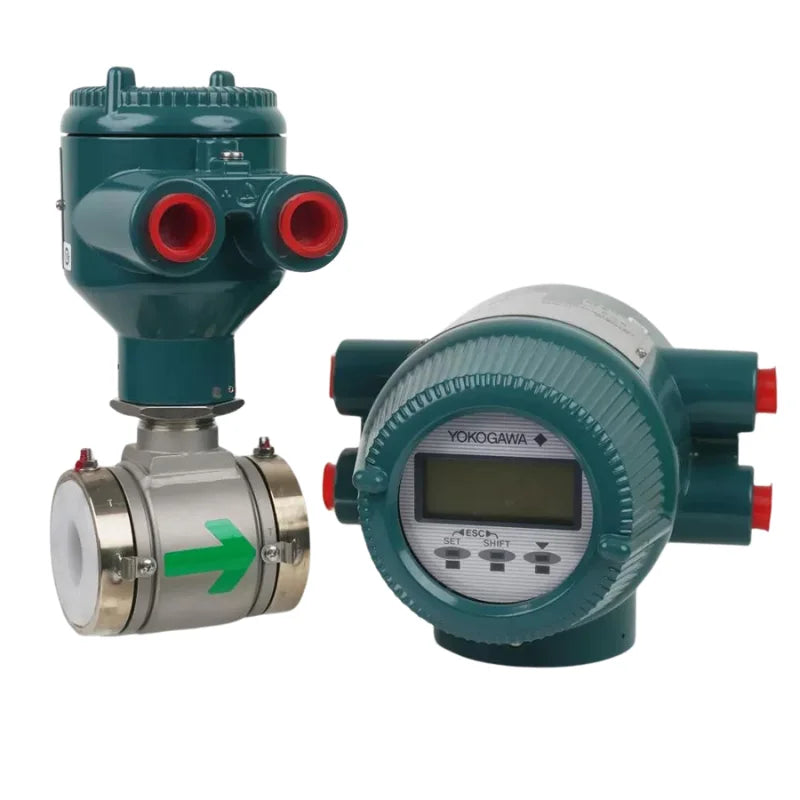

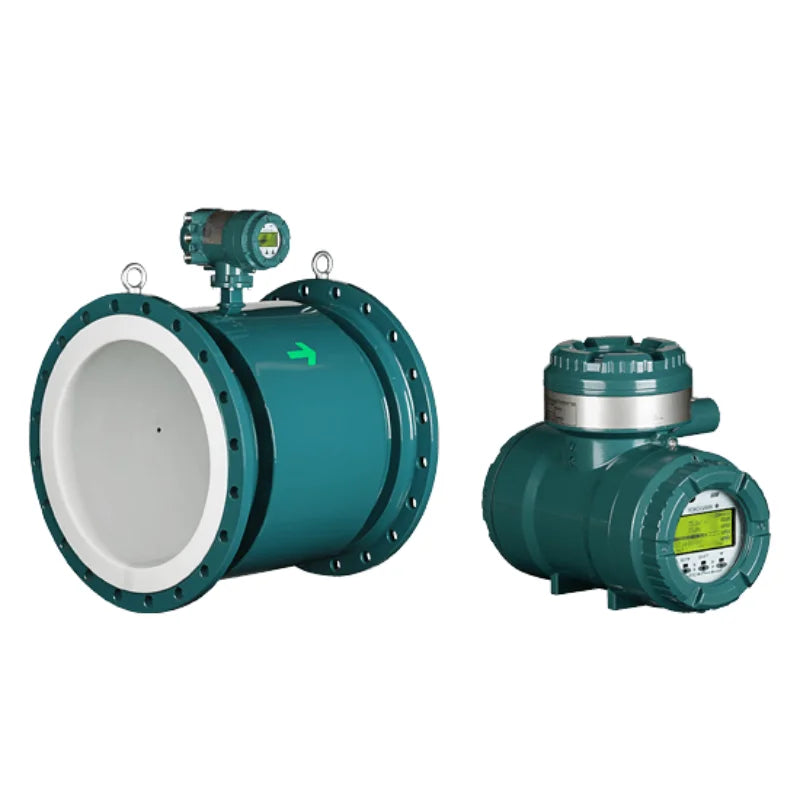

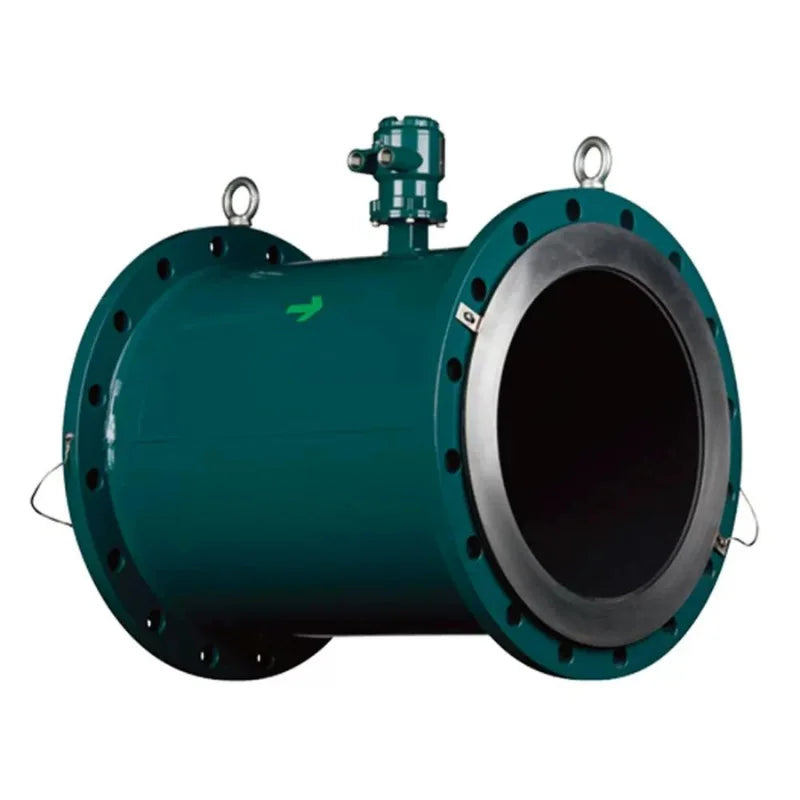

Remote Type
|
|

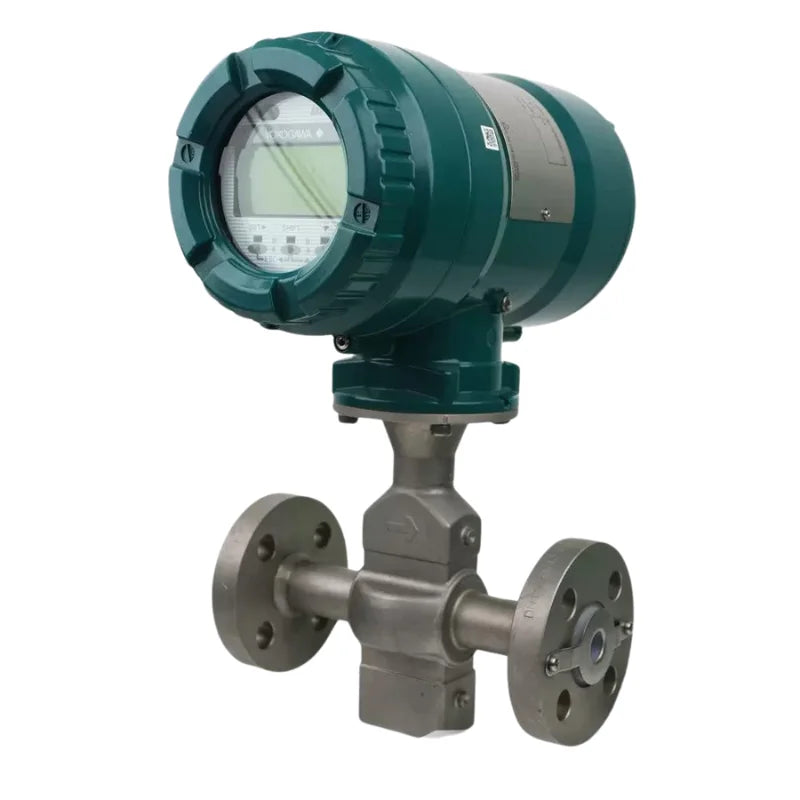

Integral Type
|
||
|
|
AXG1A High Grade Transmitter
|
AXW4A Transmitter
|

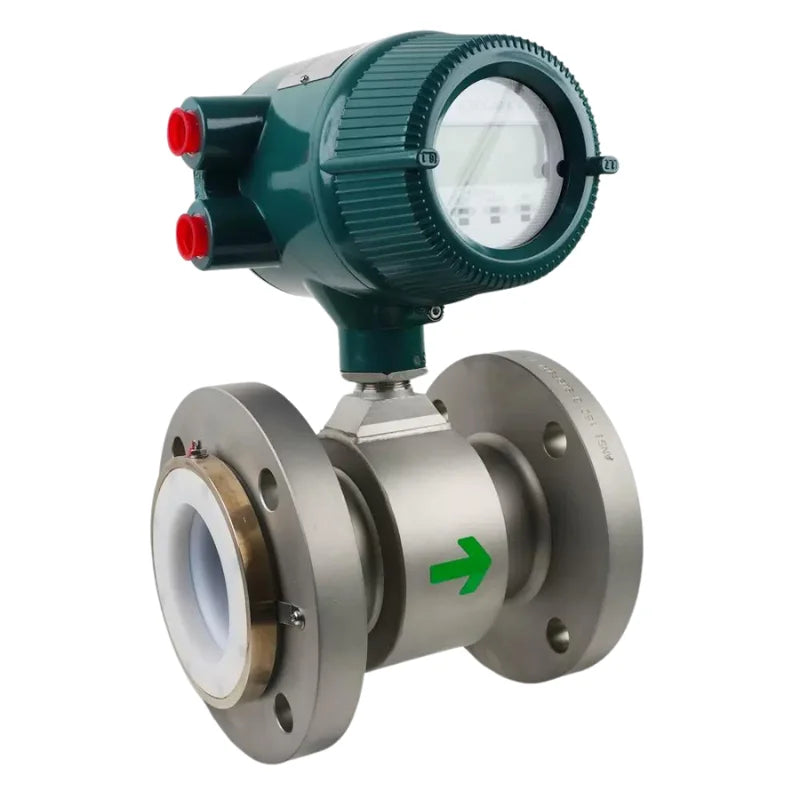

AXW Integral Type
|
||
|
Accuracy
(Reading Value) |
[Sensor Combination]
- AXW: ± 0.35 % |
[Sensor Combination]
- AXW: ± 0.35 % |
± 0.35 %
|
||
|
Size
|
[Sensor Combination]
- AXW: 25 to 1800 mm |
[Sensor Combination]
- AXW: 25 to 1000 mm |
25 to 1000 mm
|
||
|
Use
|
[Tansmitter] - General Purpose [Sensor Combination] - General Purpose - Explosion Protection - Submersible |
[Tansmitter]
- General Purpose - Explosion Protection [Sensor Combination] - General Purpose - Explosion Protection - Submersible |
General Purpose
Explosion Protection |
||
|
Explosion Protection Use
|
IECEx, ATEX, Korea, Brazil (INMETRO), EAC
* Transmitter is usable only in the safety area. |
IECEx, ATEX, Korea, Brazil (INMETRO), EAC
|
|
||
|
Liner Material
|
PTFE, Polyurethane, Natural Soft Rubber, Natural Hard Rubber |
|
|
||
|
Communication Protocols
|
HART 7, BRAIN
|
HART 7, BRAIN, Modbus
FOUNDATION Fieldbus PROFIBUS PA EtherNet / IP |
|
||
|
Signal Cable Length
|
200 m
|
100 m
|
-
|
||
|
Main Function
|
- Easy Setup Wizard
- Trend Graph Display Function - Data Logging Function (with microSD card) - Parameter Backup / Restore / Duplication Function (with microSD card) - Zero Adjustment - Display Test Function - Input/Output Test Function |
|
|
||
|
Diagnostic Function
|
[Application Diagnostics]
- Electrode Adhesion Detection - Sensor Empty Check - Wiring Connection Diagnosis - Flow Noise Diagnosis - Low Conductivity Diagnosis - Electrode Insulation - Deterioration Diagnosis |
[Application Diagnostics]
- Electrode Adhesion Detection - Sensor Empty Check - Wiring Connection Diagnosis |
|
||
|
|
[Verification Function]
- Built-in Verification - Standard Verification (with FSA130 ADMAG TI Verification Tool) - Enhanced Verification (with FSA130 ADMAG TI Verification Tool) |
|
|
||
|
Current Signal
|
Input: 1 ch (Active)
Output: 2 ch (Active) |
Output: 1 ch (Active)
|
|
||
|
Pulse/Status Signal
|
Output: 2 ch (Active [With / Without Internal Resister] / Passive) |
Output: 2 ch (Active [Without Internal Resister] / Passive)
|
|
||
|
Status Signal
|
Input: 2 ch (Dry Contact)
Output: 2 ch (Passive) |
Input: 1 ch (Dry Contact)
|
|
||
|
Alarm Signal
|
Output: 1 ch (Passive)
|
-
|
|
||
|
Multiple Languages
|
English, French, German, Italian, Spanish, Portuguese, Russian and Japanese.
|
|
|
||
|
Safety Integrity Level
|
-
|
SIL2 |
|
||
|
Others
|
[AXG1A/AXW4A Transmitter, AXW Integral Type]
- LCD with improved environmental resistance [AXG1A Transmitter] - Equipped with temperature input terminal for Density correction and Calolie calculation |
|
|
||
