Overview

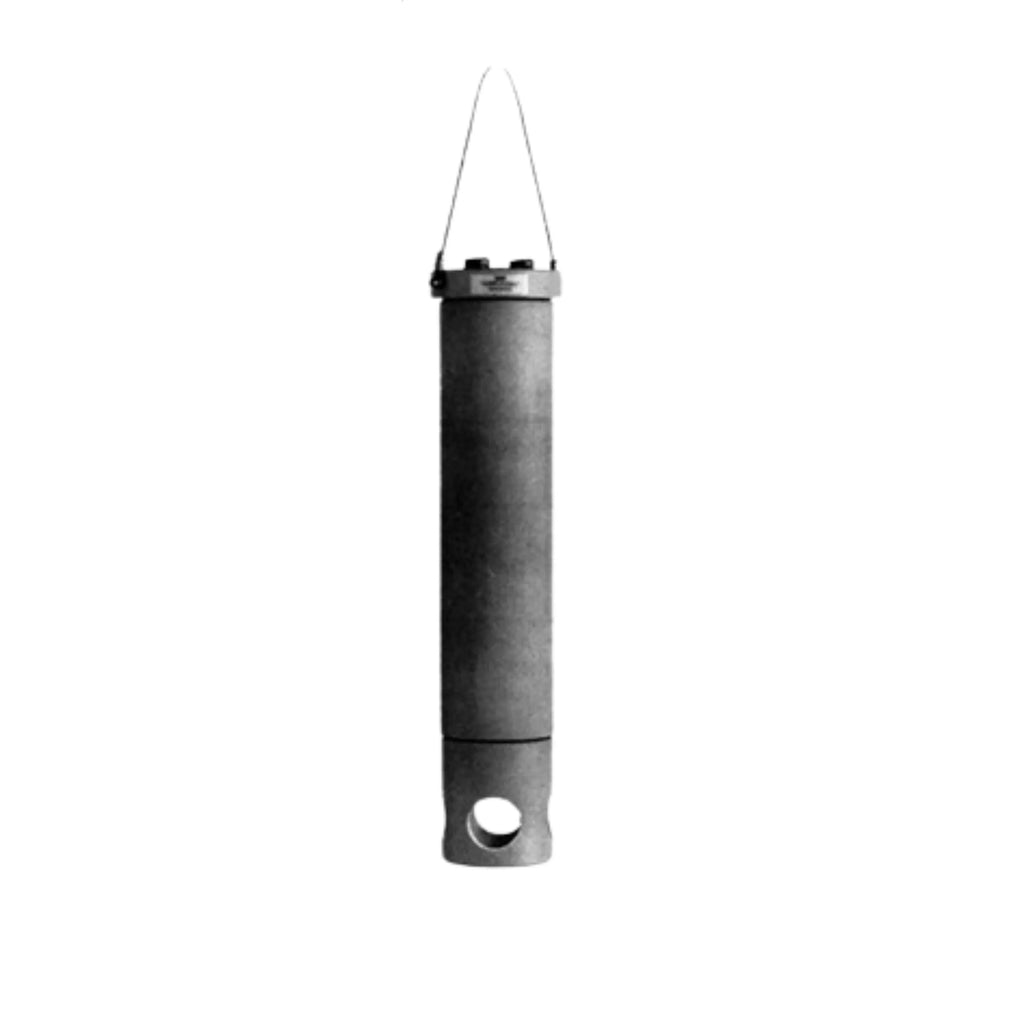

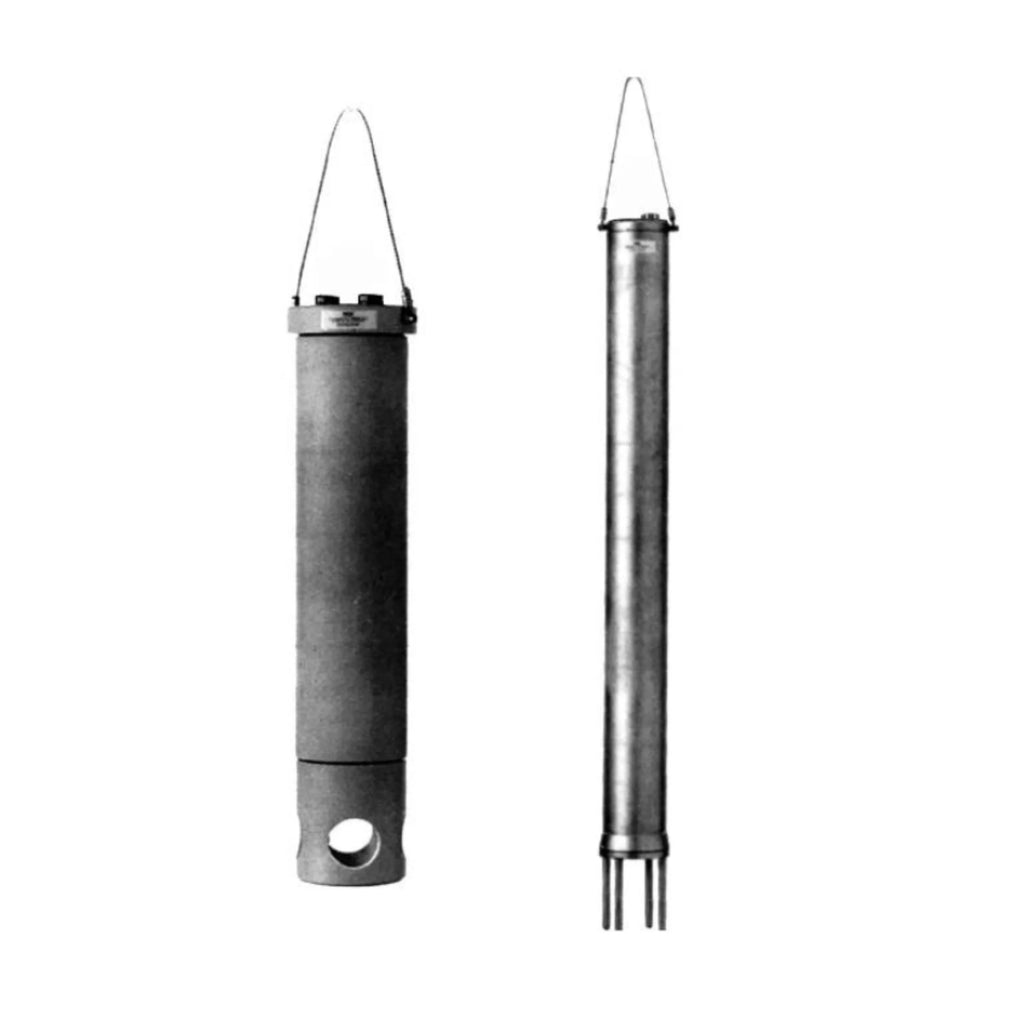

FD20 Immersion FittingThe immersion fittings are designed for either pH or ORP (Redox) measurements in tanks, open vessels and drains. They have a "hoisting cable" for easy maintenance. The program includes fittings for mounting of 1 electrode, 3 electrodes, 4 electrodes or
alternatively 3 electrodes and a cleaning system.
alternatively 3 electrodes and a cleaning system.
Benefits
As standard, the immersion length can be between 0.5 and 2 m. A flange for
fixing in tanks, etc. is available on request.
fixing in tanks, etc. is available on request.
* Designed for either pH or ORP measurements in tanks open vessels and drains.
* Hoisting cable" for easy maintenance.
* Pre-selected immersion length.
* Wide choice of construction materials.
* Flange mounting.
* High degree of standardization reduces spare holding requirements.
* Liquid earth pin for stable measurements.
* Chemical cleaning system as an option.
* Hoisting cable" for easy maintenance.
* Pre-selected immersion length.
* Wide choice of construction materials.
* Flange mounting.
* High degree of standardization reduces spare holding requirements.
* Liquid earth pin for stable measurements.
* Chemical cleaning system as an option.
Specification
|
Item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
Japan
|
|
Model Number
|
FD20
|
|
Material
|
Polypropylene (PP) Stainless steel AISI 316 (SS)
|
|
Product name
|
FD20 Immersion Fitting
|
|
Temperature
|
min.: -10°C
max.: depending on material and application
|
|
Immersion length (in dm)
|
between 0.5 and 2.0 m
|
|
Weight
|
1-hole fitting : PVC : 0.4kg
2-hole fitting : PP : 2kg; SS: 5.3kg; PVDF: 2.5kg
3-hole fitting : PP : 4.5kg; SS: 6.4kg; PVDF: 5.5kg
|
