ROSEMOUNT Micro Motion T-Series Straight Tube Coriolis Flow and Density Meters

Availability: In stock

Product type: Flow Measurement

Vendor: ROSEMOUNT

Precio habitual ~~$1,000.00~~ $1,000.00 Oferta

Overview Micro Motion T-Series Straight Tube Coriolis Flow and Density Meters. With superior flow measurement in a single straight-tube design, the T-Series Coriolis Flow and Density meter features all titanium-wetted...

Precio habitual ~~$1,000.00~~ $1,000.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

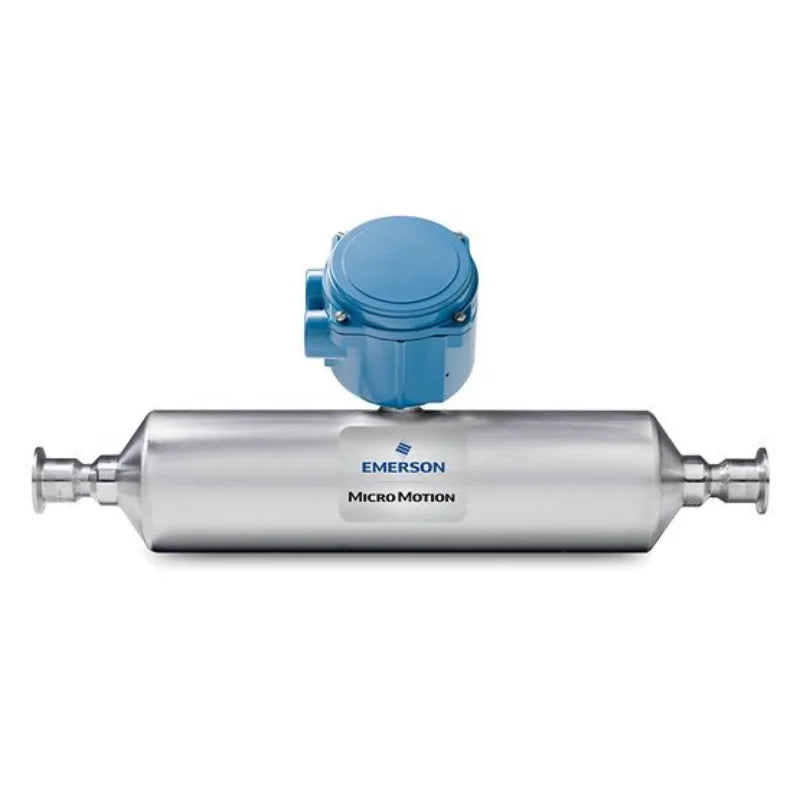

Micro Motion T-Series Straight Tube Coriolis Flow and Density Meters. With superior flow measurement in a single straight-tube design, the T-Series Coriolis Flow and Density meter features all titanium-wetted parts for excellent corrosion resistance, and is self-draining with a plug-resistant flow path.

Benefits

* Achieve direct, in-line measurement of mass flow, density, concentration and volume flow and temperature from one device
* Choose available titanium construction for compatibility with most fluids
* Meet virtually any connectivity needs with a wide range of transmitter offerings
* Use with hygienic applications with an improved 15 and 32 rA surface and EHEDG, certified, 3-A authorized and ASME BPE
* Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, Cand D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
* Save time with a design that is easy to clean in place (CIP) and steam in place (SIP)
* Simplify installation with a highly robust design that doesn't need straight runs or flow conditioning

Specification

Warranty	1 Year
Customized support	OEM, ODM, OBM
Place of Origin	American
Brand Name	EMERSON/ROSEMOUNT
Model Number	Straight Tube Coriolis Flow and Density Meters
Liquid Accuracy / Repeatability	up to ±0.15% of rate (up to ±0.05% of rate)
Gas Accuracy / Repeatability	±0.50% of rate
Ingress Protection	66/67
Density Accuracy / Repeatability	±0.002 g/cm3 (±0.0005 g/cm3)
Line Size	1/4" (DN8) - 2" (DN50)
Pressure Range	up to 1450 psig (100 barg)
Temperature Range	-60 to 300 F (-51 to 149 C)
Electronics	Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
Turndown	0.417361111
Medium	Liquid Gas
