Overview
Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications
* Measuring cell
+400 mbar....+40 bar
(+6 psi....+600 psi)
+400 mbar....+40 bar
(+6 psi....+600 psi)
Application

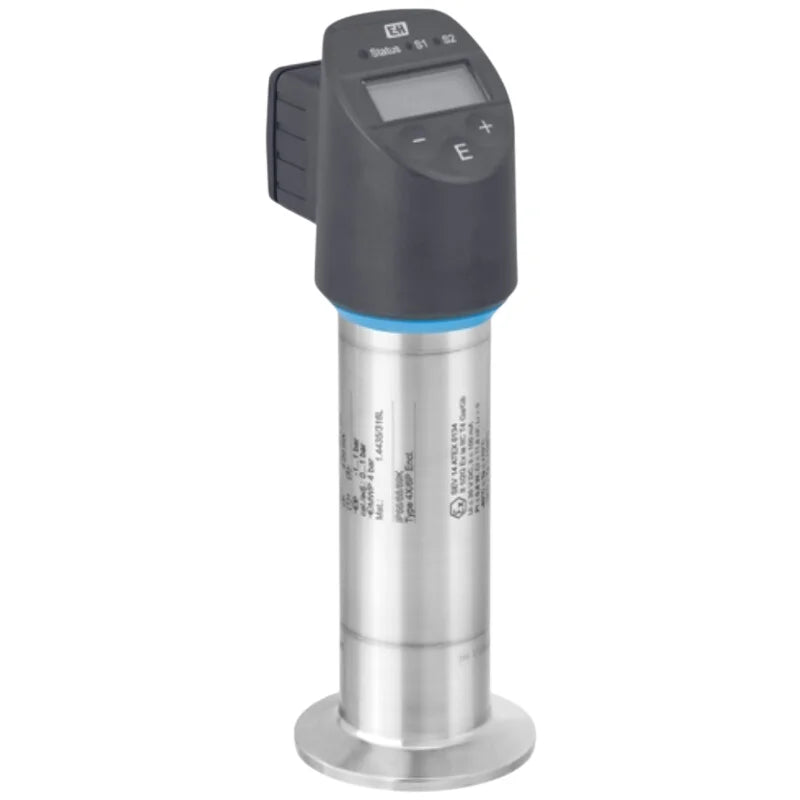

The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.
Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
* Process connections: Hygienic connections, threads
* Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h
* Process pressure: 400mbar to +40bar (6 to +600psi)
* Accuracy: up to ±0.3%
Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
* Process connections: Hygienic connections, threads
* Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h
* Process pressure: 400mbar to +40bar (6 to +600psi)
* Accuracy: up to ±0.3%
Benefits
* Integrated switching electronics for decentral and economic process monitoring and control
* Function check and information on site thanks to LEDs and digital display
* Compact pressure transducer for hygienic applications
* Suitable for CIP/SIP cleaning

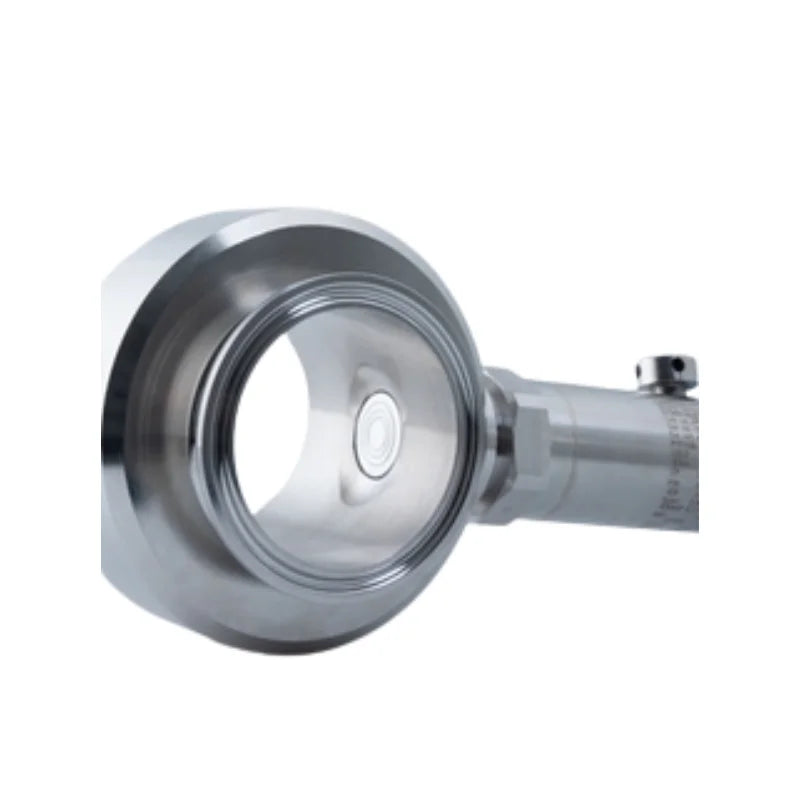

* Small flush mounted hygienic process connections with 3-A and EHEDG certification
* IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.
* Function check and information on site thanks to LEDs and digital display
* Compact pressure transducer for hygienic applications
* Suitable for CIP/SIP cleaning
* Small flush mounted hygienic process connections with 3-A and EHEDG certification
* IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Ceraphant PTP33B
|
|
Material
|
/
|
|
Measuring Principle
|
Pressure switch
|
|
Characteristic
|
Intelligent pressure switch with metal diaphragm for hygienic applications,
longterm stable |
|
Supply Voltage
|
10...30 VDC
|
|
Reference Accuracy
|
0.5 %, Platinum: 0.3 %
|
|
Long Term Stability
|
0.2 % of URL/year
|
|
Process Temperature
|
-40 °C...+100 °C
(-40 °C...+212 °F) |
|
Ambient Temperature
|
-20 °C...+70 °C (-4 °C...+158 °F)
|
|
Measuring Cell
|
+400 mbar....+40 bar
(+6 psi....+600 psi) |
|
Max. Overpressure Limit
|
160 bar (2320 psi)
|
|
Process Connection
|
Thread: M24
|
|
Process Connection Hygienic
|
DIN11851, Tri Clamp, SMS, Varivent
|
|
Communication
|
1x PNP switch
2x PNP switch 1x PNP switch + 4...20 mA analogue |
|
Design Approvals
|
EN 10204-3.1 final inspection report,
Cleaned from oil and grease, Set min alarm |
|
Hygienic Approvals
|
FDA concurring
3A, EHEDG, EG1935/2004 |
|
Specialities
|
Digital display,
Fully welded process connections |
