Overview

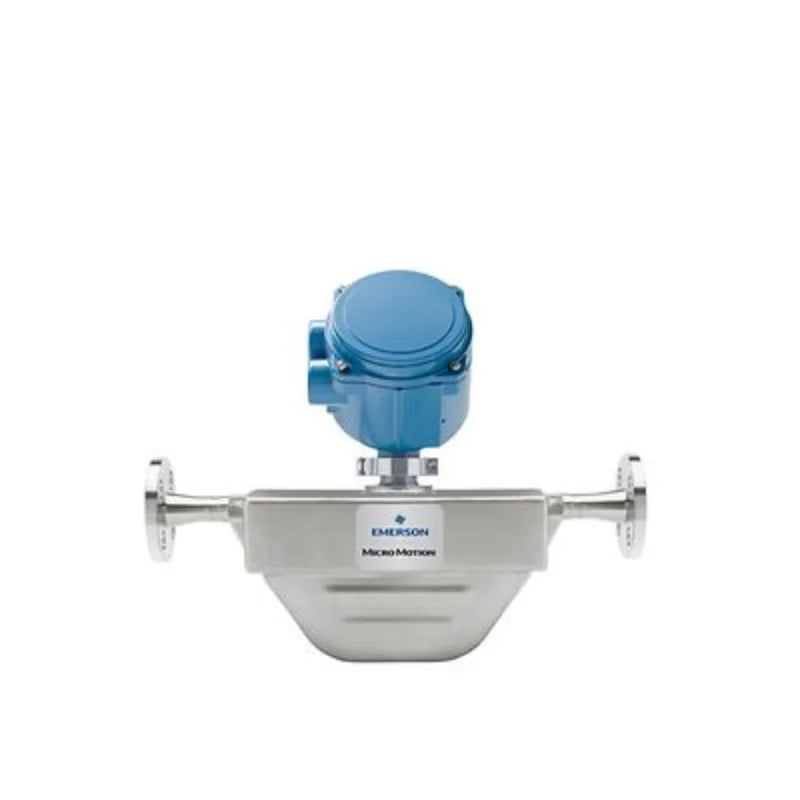

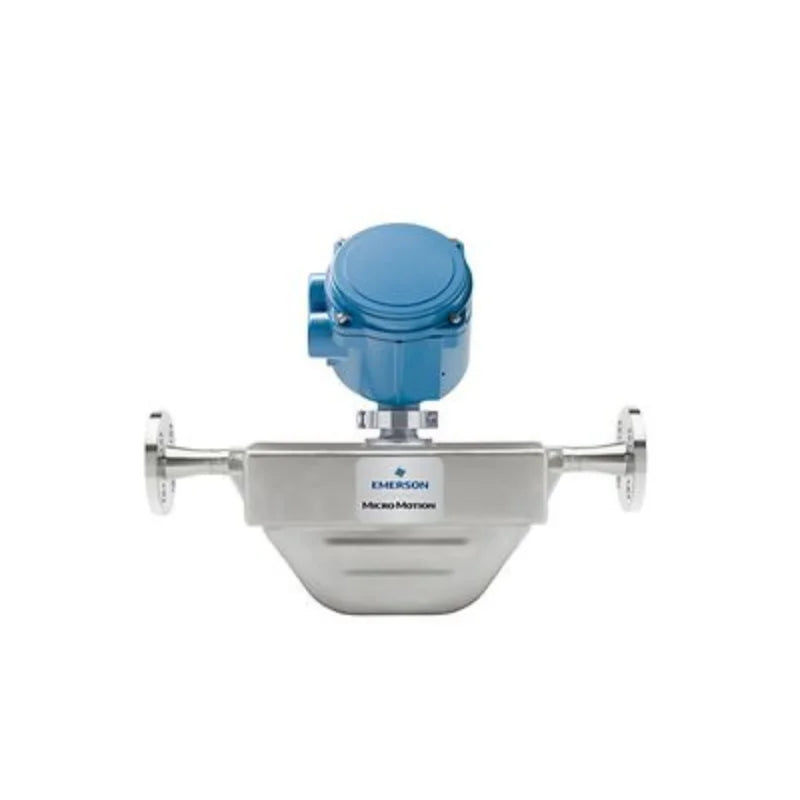

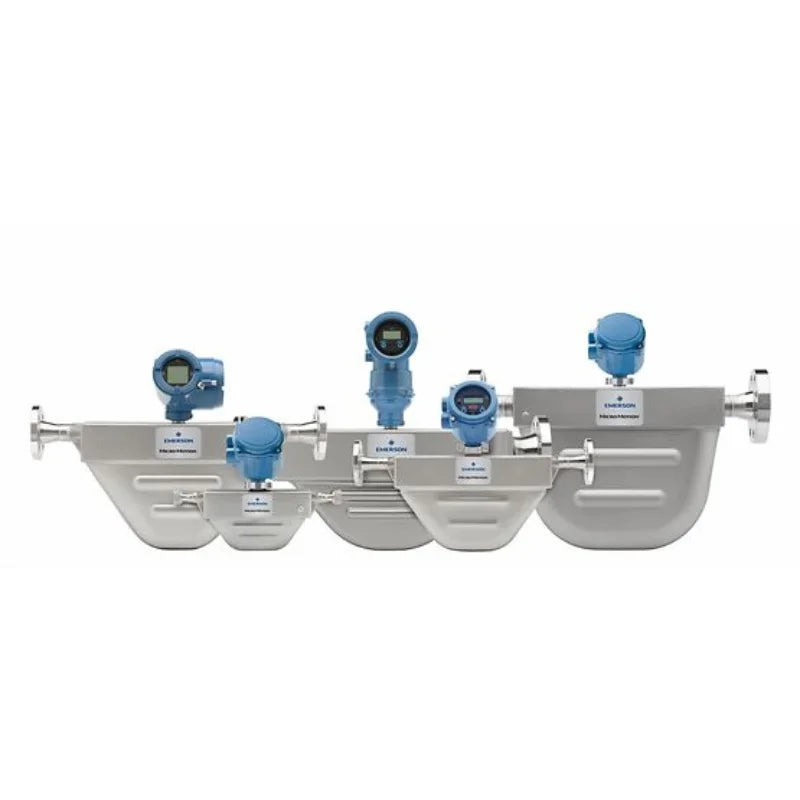

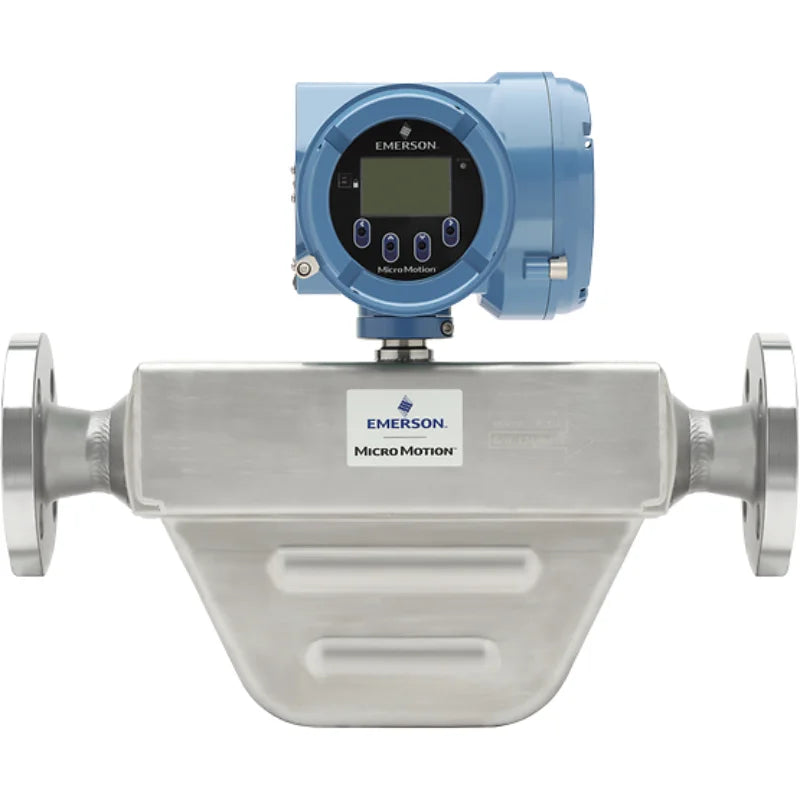

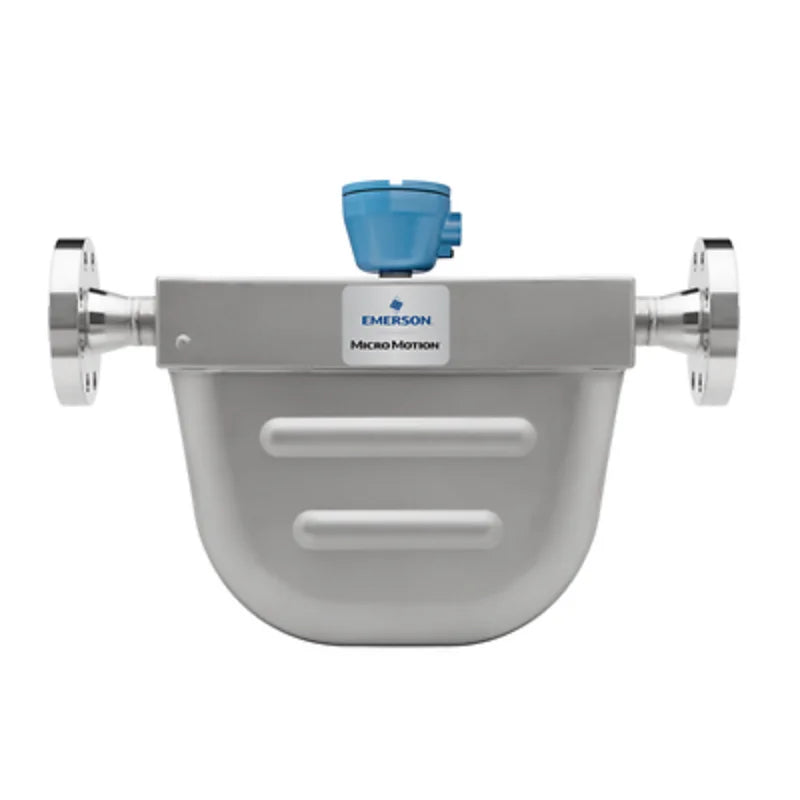

Micro Motion R-Series General Purpose Coriolis Flow and Density Meters. Low-footprint, drainable R-Series Coriolis flow meters provide accurate flow and density measurements. They are ideally suited for general purpose applications that typically require repeatable, reliable, low-maintenance measurements.
Benefits
* Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design
* Increase flexibility with available 316L stainless steel construction that is compatible with most fluids
* Cut costs with an integral transmitter that provides a flow-variable-only architecture
* Choose from rugged transmitter options including: Class I, Division 1/Zone 1 housing with optional local-operator interface
* Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
* Minimize maintenance and boost long-term reliability with no moving parts to wear or replace
* Install virtually anywhere with compact design
* Increase flexibility with available 316L stainless steel construction that is compatible with most fluids
* Cut costs with an integral transmitter that provides a flow-variable-only architecture
* Choose from rugged transmitter options including: Class I, Division 1/Zone 1 housing with optional local-operator interface
* Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
* Minimize maintenance and boost long-term reliability with no moving parts to wear or replace
* Install virtually anywhere with compact design
Specification
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
American
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
General Purpose Coriolis Flow and Density Meters
|
|
Liquid Accuracy / Repeatability
|
Up to ±0.4%of rate (±0.2%; of rate)
|
|
Gas Accuracy / Repeatability
|
Up to ±0.75%of rate (±0.5%of rate)
|
|
Ingress Protection
|
66/67
|
|
Density Accuracy / Repeatability
|
Up to ±0.003 g/cm3 (±0.0015 g/cm3)
|
|
Line Size
|
1/4" (DN6) - 3" (DN80)
|
|
Pressure Range
|
Up to 1450 psig (100 barg)
|
|
Temperature Range
|
-148 to 302°F (-100 to 150°C)
|
|
Electronics
|
Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
|
|
Turndown
|
10:1
|
|
Medium
|
Liquid Gas
|
