Overview

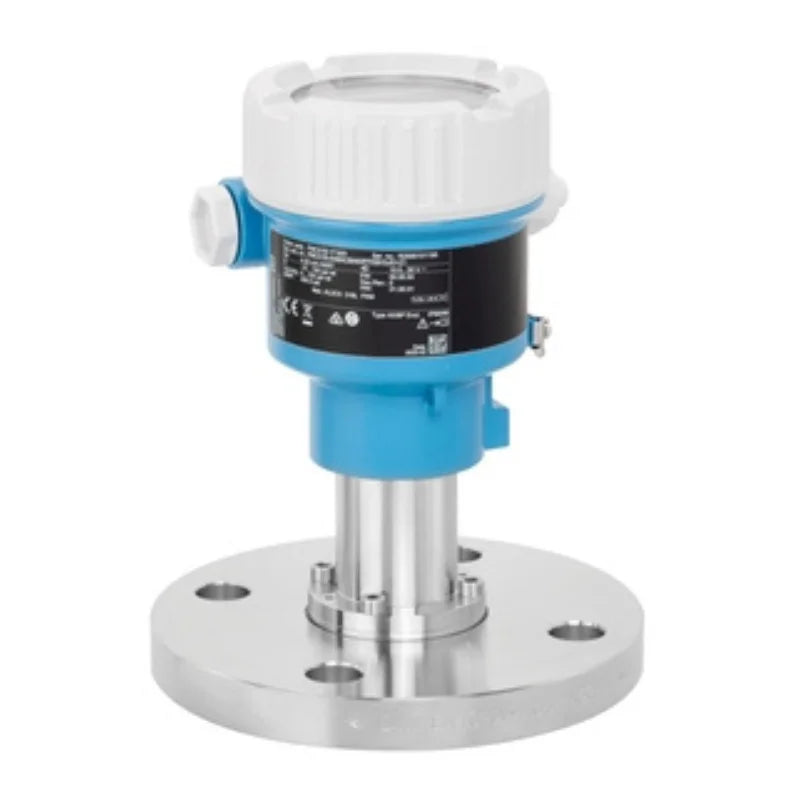

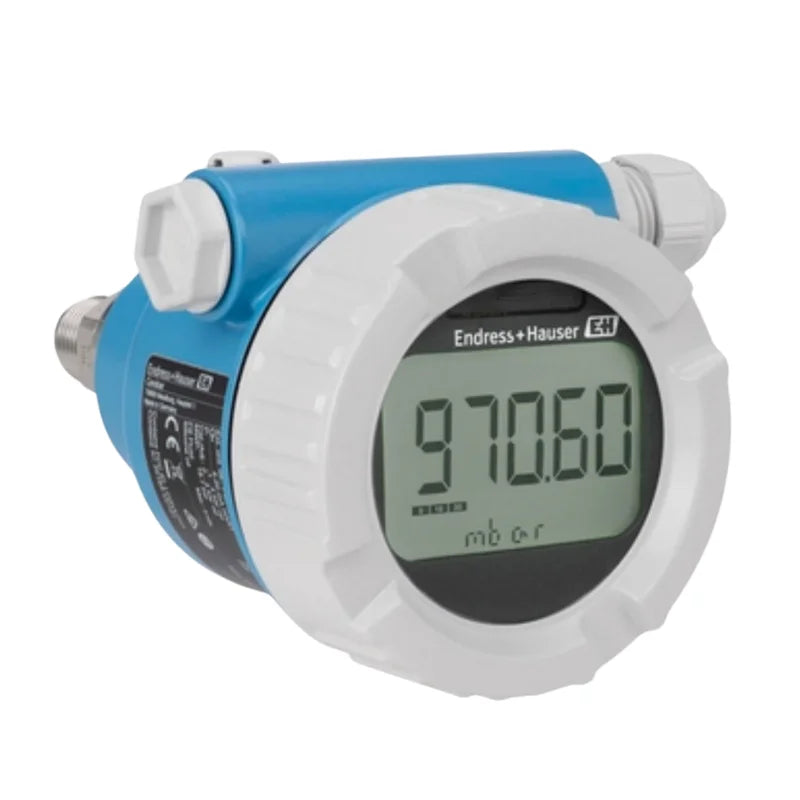

Smart pressure transmitter with metal membrane for highly accurate measurement of liquids and gases。
* Accuracy
Standard:
up to 0.075 %
Platinum:
up to 0.055 %
* Process temperature
-40°C...+100°C
(-40°F...+212°F)
* Pressure measuring range
100 mbar...40 bar
(1.5 psi...600 psi)
* Main wetted parts
Ceraphire ceramic
FKM, EPDM, HNBR,
Perlast, Kalrez
* Material process membrane
Ceramic
* Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
Standard:
up to 0.075 %
Platinum:
up to 0.055 %
* Process temperature
-40°C...+100°C
(-40°F...+212°F)
* Pressure measuring range
100 mbar...40 bar
(1.5 psi...600 psi)
* Main wetted parts
Ceraphire ceramic
FKM, EPDM, HNBR,
Perlast, Kalrez
* Material process membrane
Ceramic
* Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
Field of application
This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
* Pressure measuring range: up to 40 bar (600 psi)
* Fully vacuum resistant up to +100°C (212°F) process temperature
* Accuracy: up to +/-0.055%
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
* Pressure measuring range: up to 40 bar (600 psi)
* Fully vacuum resistant up to +100°C (212°F) process temperature
* Accuracy: up to +/-0.055%
Benefits
* Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.
* Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
* Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
* Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
* Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Cerabar PMC51B
|
|
Measuring Principle
|
Absolute and gauge pressure
|
|
Characteristic
|
Pressure transmitter with ceramic process membran for accurate measurement in liquid or gases.
Intuitive and clear wizard for commissioning |
|
Supply Voltage
|
Ex d, Ex e, non-Ex:
10.5...35V DC Ex i: 10.5...30V DC |
|
Reference Accuracy
|
Standard:
up to 0.075 % Platinum: up to 0.055 % |
|
Long Term Stability
|
0.10% of URL/ year
0.25% of URL/ 5 years 0.40% of URL/ 10 years |
|
Process Temperature
|
-40°C...+100°C
(-40°F...+212°F) |
|
Ambient Temperature
|
-40°C...+85°C
(-40°F...+185°F) |
|
Measuring Cell
|
100 mbar...40 bar
(1.5 psi...600 psi) |
|
Smallest Calibratable Span
|
5 mbar (0.075 psi)
|
|
Vacuum Resistance
|
0 mbar abs.
|
|
Max. Turn Down
|
100:1
|
|
Max. Overpressure Limit
|
60 bar (900 psi)
|
|
Process Connection
|
Thread:
G1/2...G2, R1/2, MNPT1/2...MNPT2, FNPT1/2 Flange: DN25...DN80, NPS 1"...4" |
|
Material Process Membrane
|
Ceramic
|
|
Material Gasket
|
FKM, EPDM, HNBR, FFKM
|
|
Fill Fluid
|
none, dry measuring cell
|
|
Material Housing
|
Aluminium
|
|
Communication
|
4...20 mA,
4...20 mA HART PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
|
Certificates / Approvals
|
ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex
|
|
Safety Approvals
|
SIL
|
|
Design Approvals
|
EN10204-3.1
NACE MR0175, NACE MR0103 |
|
Drinking Water Approvals
|
NSF, KTW
|
|
Specialities
|
Bluetooth® Operation and maintenance SmartBlue App,
RFID TAG for easy identification, Plug and play functionalities |
