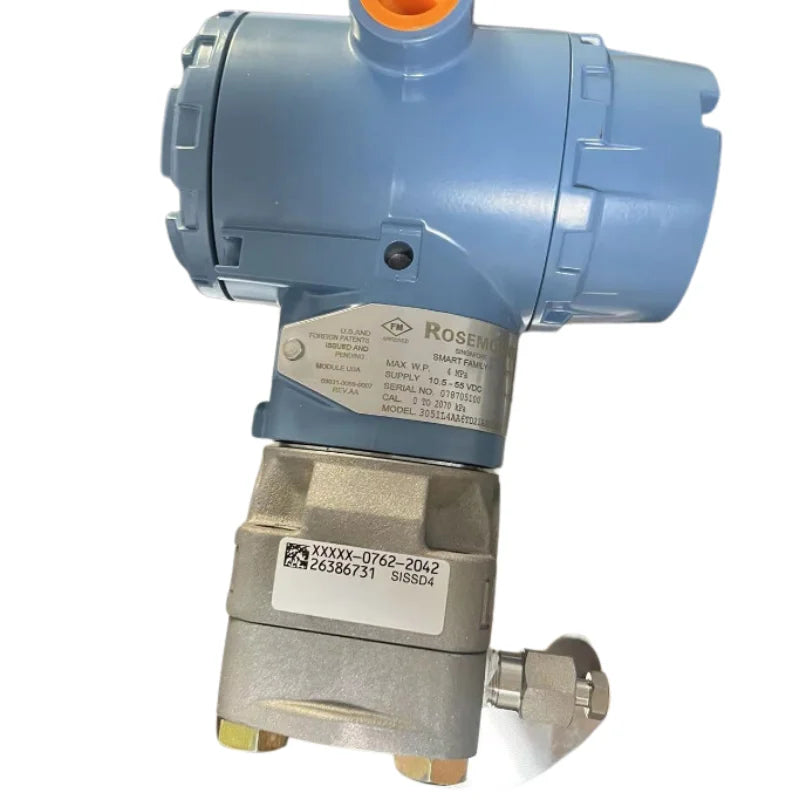

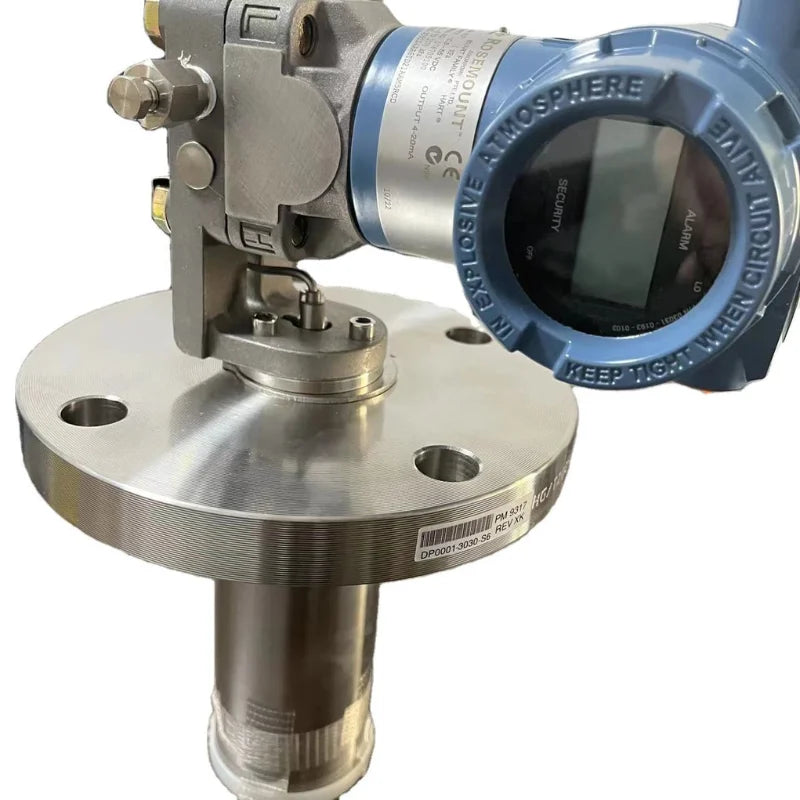

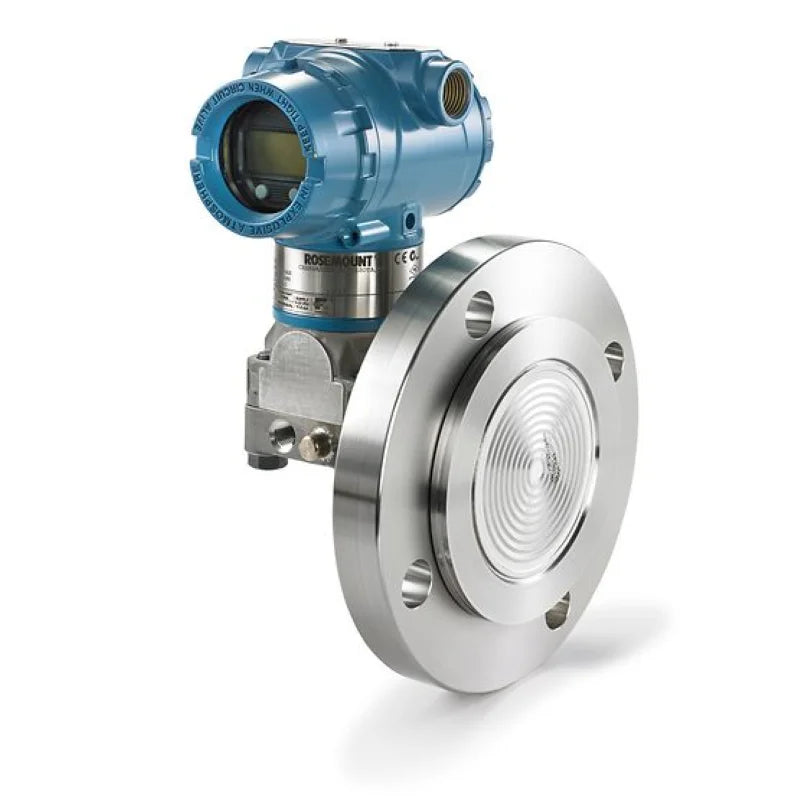

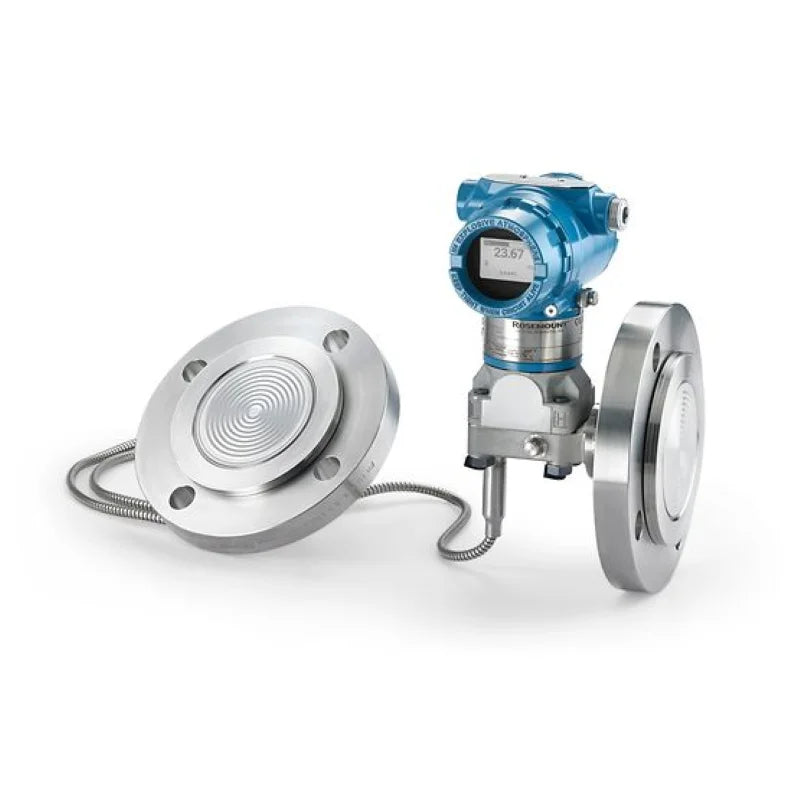

ROSEMOUNT 3051L Level Transmitter

Availability: In stock

Product type: Level Measurement

Vendor: ROSEMOUNT

Precio habitual ~~$999.00~~ $999.00 Oferta

Overview Product Description Direct mount or use a Tuned-System™ assembly that optimizes performance and reduces temperature effects by 10-20% for improved response time by over 80% versus traditional installations....

Precio habitual ~~$999.00~~ $999.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

Product Description

Direct mount or use a Tuned-System™ assembly that optimizes performance and reduces temperature effects by 10-20% for improved response time by over 80% versus traditional installations. Built-in diagnostics detect electrical loop issues and alert you to
corrosion, water in the housing, or unstable power supply. Available with a graphical, back-lit display, Bluetooth® connectivity, Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Features

* Tuned-System Level assembly and direct mounting produce optimal performance for level applications
* Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations
* Complete level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
* 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
* Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
* The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
* Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
* Quick service buttons offer built-in configuration buttons for streamlined commissioning
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* Wireless Features * WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	United States
Brand Name	Emerson/Rosemount
Model Number	3051L
Material	316/316L
Max. Operating Pressure	Up to 300 psi (20,68 bar)
Process Temperature Range	Maximum 401°F (205°C), Minimum -157°F (-105°C)
Communication Protocol	4-20 MA HART
Seal System Type	Direct Mount, Tuned-System
Transmitter Connection	Welded-Repairable
Process Connection	Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material	316L SST, Alloy C-276, Tantalum
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Internal antenna (225 m)
Wireless Update Rate	1 sec. to 60 min., user selectable
