Overview
Product Description
Featuring WirelessHART®technology, the Rosemount 3051SAL Wireless Level Transmitter is a no-equal solution to optimize level measurement. This wireless device allows for direct mounting, remote mounting, balanced systems and Tuned-System™ assemblies to meet various process requirements. Engineered with the hermetically sealed, stainless steel SuperModule™ platform, this transmitter has a 15-year limited warranty and stability and up to 10-year power module life, providing field reliability.
Features
* WirelessHART®technology is secure, cost-effective and delivers >99% data reliability
* SuperModule platform offers 15-year limited warranty and stability for field reliability

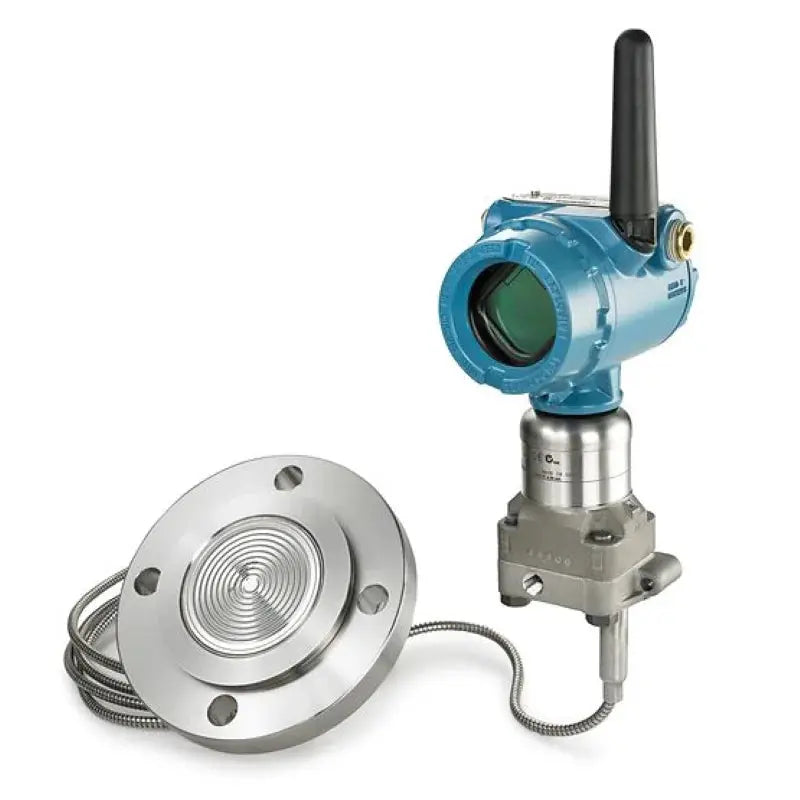

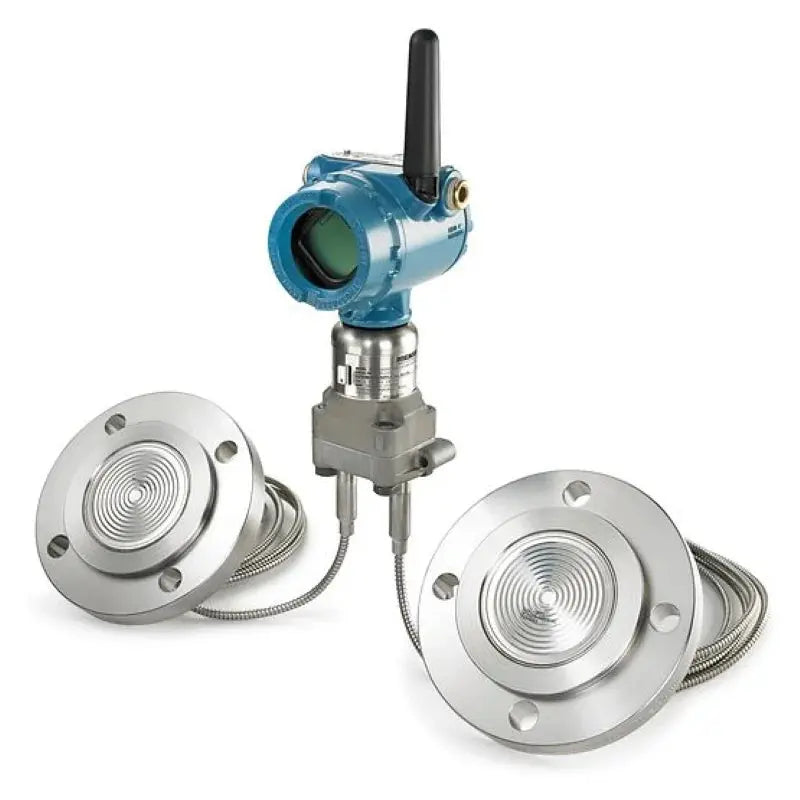

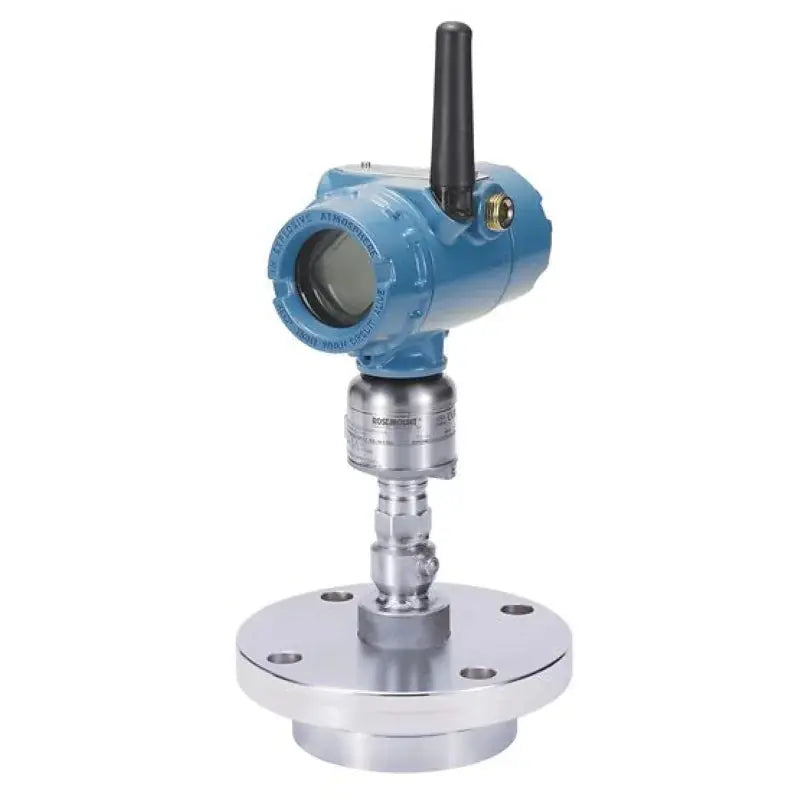

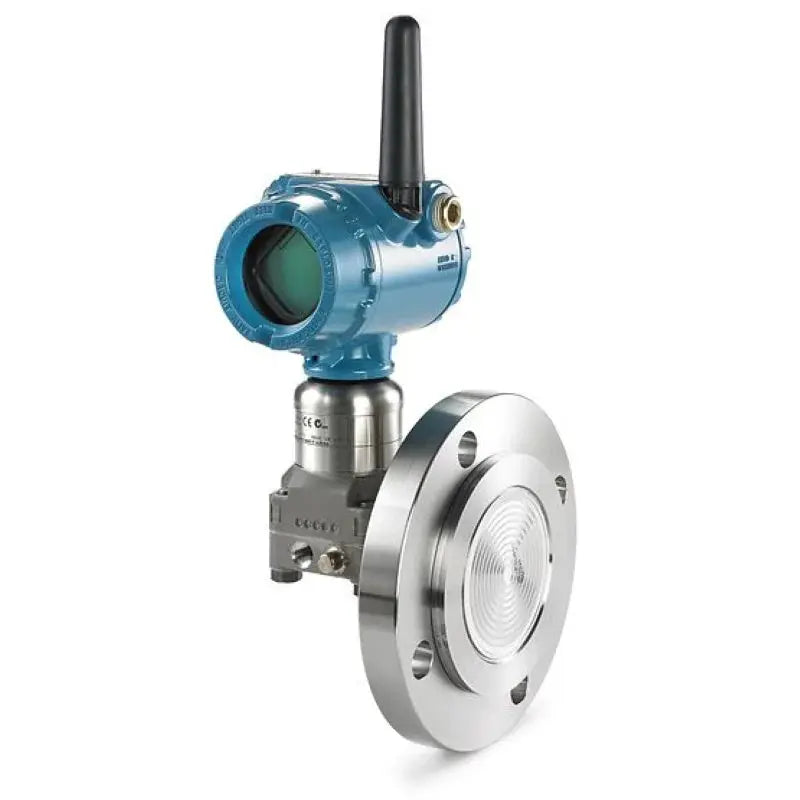

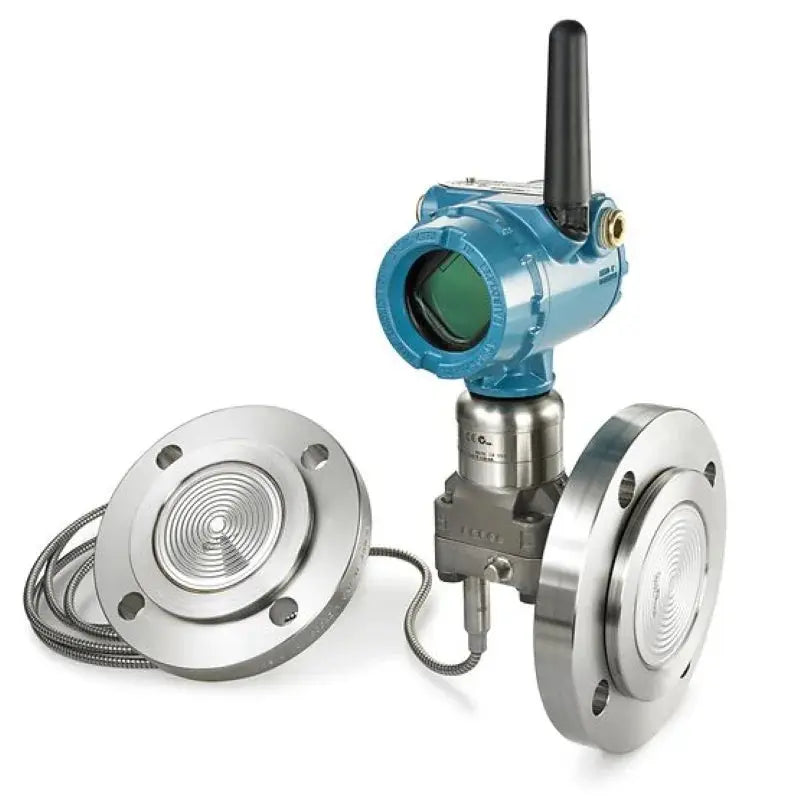

* Allows for direct mounting, remote mounting and balanced and tuned-systems to meet various application requirements
* Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
* Omnidirectional external wireless antennas improve connectivity to remote areas with ranges up to 2/3 mi. (1 km)

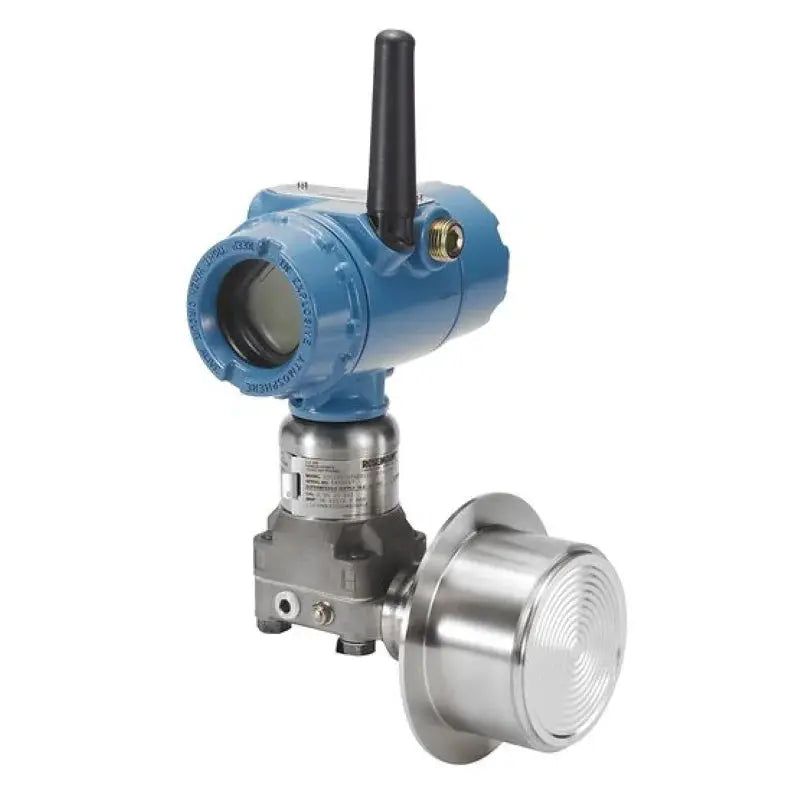

* Available in various process connections, including flanged, threaded and hygienic seals for application flexibility
* Optimized and robust seal system construction provides reliability with repairable-welded and all-welded options
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring
* SuperModule platform offers 15-year limited warranty and stability for field reliability
* Allows for direct mounting, remote mounting and balanced and tuned-systems to meet various application requirements
* Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
* Omnidirectional external wireless antennas improve connectivity to remote areas with ranges up to 2/3 mi. (1 km)
* Available in various process connections, including flanged, threaded and hygienic seals for application flexibility
* Optimized and robust seal system construction provides reliability with repairable-welded and all-welded options
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
United States
|
|
Model Number
|
3051SAL Wireless
|
|
Material
|
316/316L
|
|
Max. Operating Pressure
|
Up to 10,000psi (689.48 bar)
|
|
Process Temperature Range
|
Based on fill fluid - Maximum 770°F (410°C), Minimum -157°F (-105°C)
|
|
Communication Protocol
|
WirelessHART
|
|
Seal System Type
|
Direct Mount, Remote Mount, Tuned-System, Balanced System
|
|
Transmitter Connection
|
Welded-Repairable, All Welded
|
|
Process Connection
|
NPT, DIN, ISO
|
|
Process Wetted Material
|
316L SST, Alloy C-276, Alloy 400
|
|
Power Module Life
|
Up to 10-year life, field replaceable (order separately)
|
|
Certifications/Approvals
|
NACE®, 3A, hazardous location
|
|
Update Rate
|
1 sec. to 60 min., user selectable
|
|
Wireless Range
|
Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
|
