ROSEMOUNT 3051 Coplanar Pressure Transmitter

Availability: In stock

Product type: Pressure Measurement

Vendor: ROSEMOUNT

Precio habitual ~~$500.00~~ $500.00 Oferta

Overview Rosemount™ 3051 Coplanar™ Pressure Transmitter The industry-proven Rosemount 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. 10-year stability and 150:1 rangedown produce reliable...

Precio habitual ~~$500.00~~ $500.00 Oferta

Cantidad

Details
GLOBAL SHIPPING & DELIVERY

Overview

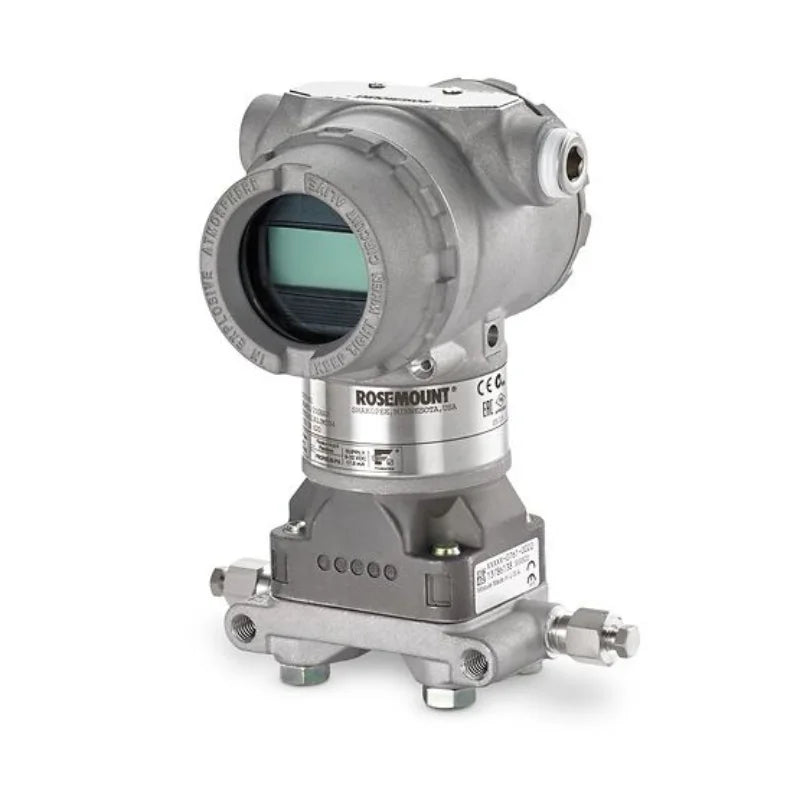

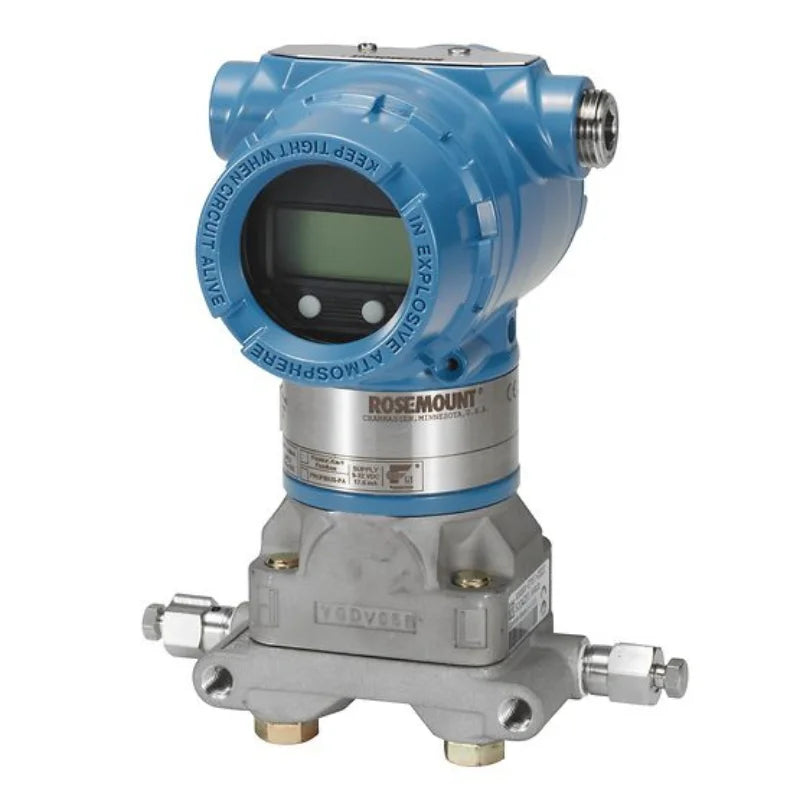

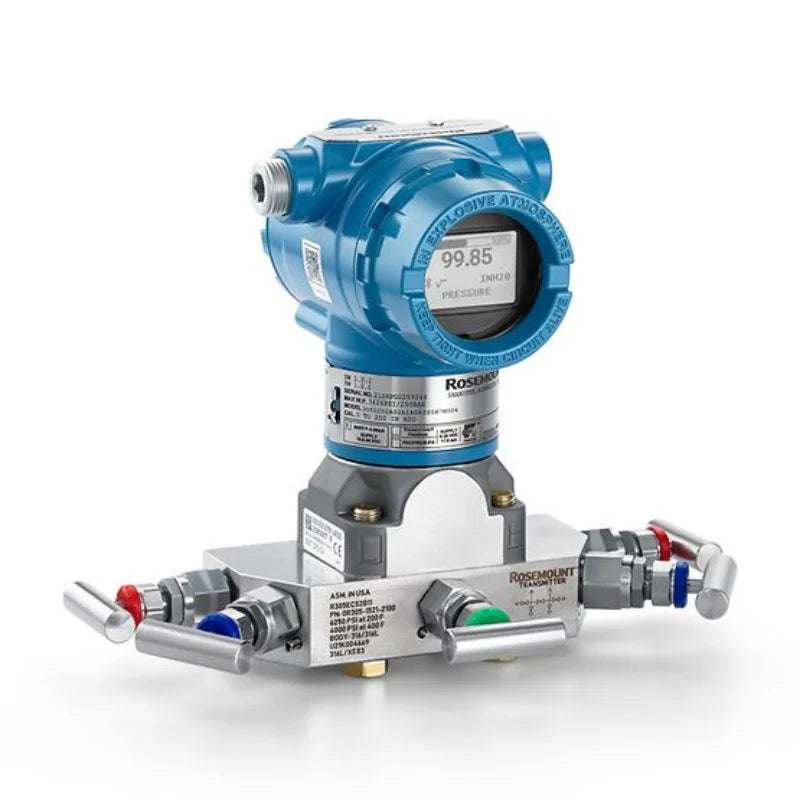

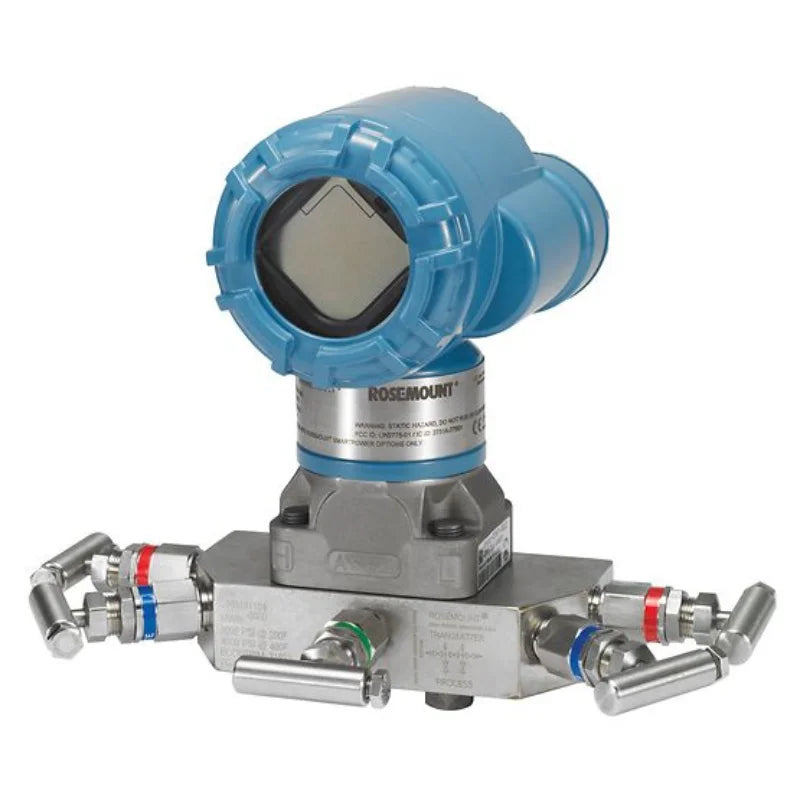

Rosemount™ 3051 Coplanar™ Pressure Transmitter

The industry-proven Rosemount 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. 10-year stability and 150:1 rangedown produce reliable measurements and wide application flexibility. Available with a graphical, back-lit display, Bluetooth® connectivity, Flow and Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Features

* Patented Rosemount Coplanar technology offers optimized performance as a pressure, Differential Pressure Flow or Differential Pressure Level solution
* Application specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculations
* Complete pressure, level, or flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
* 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
* Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
* The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
* Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
* Quick service buttons offer built-in configuration buttons for streamlined commissioning
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* Wireless Features

* WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring

Specification

Item	value
Warranty	Other
Customized support	OEM, ODM, OBM
Place of Origin	United States
Brand Name	ROSEMOUNT
Model Number	3051
Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Warranty	Up to 5-year limited warranty
Rangedown	Up to 150:1
Communication Protocol	4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range	Up to 2000 psi (137,89 bar) differential Up to 2000 psig (137,89 bar) gage Up to 4000 psia (275,79 bar) absolute
Process Wetted Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics	Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics,Plugged Impulse Line Diagnostics
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate	1 sec. to 60 min., user selectable
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Internal antenna (225 m)
