Overview

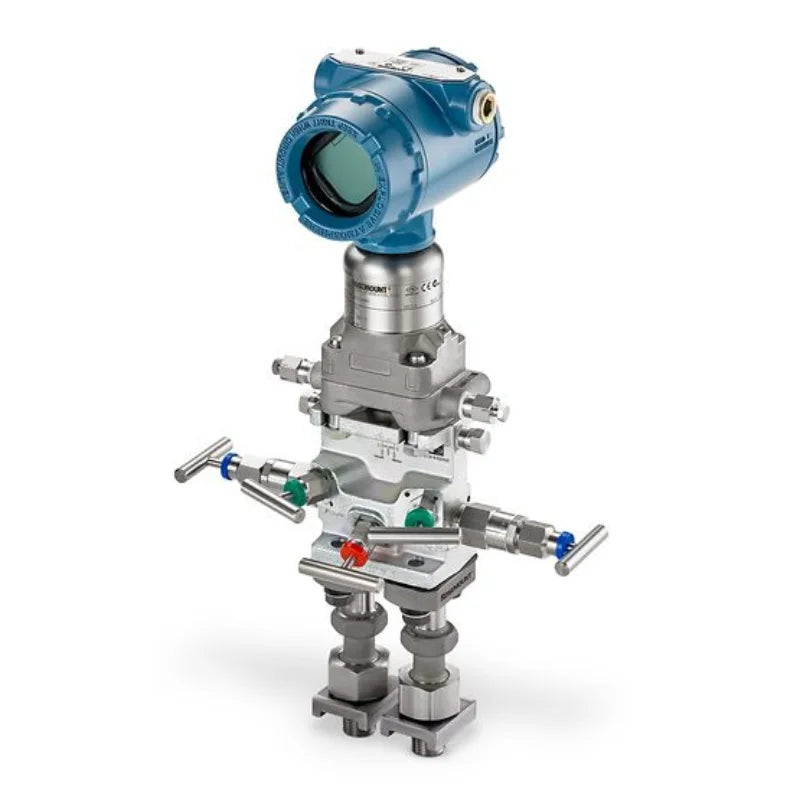

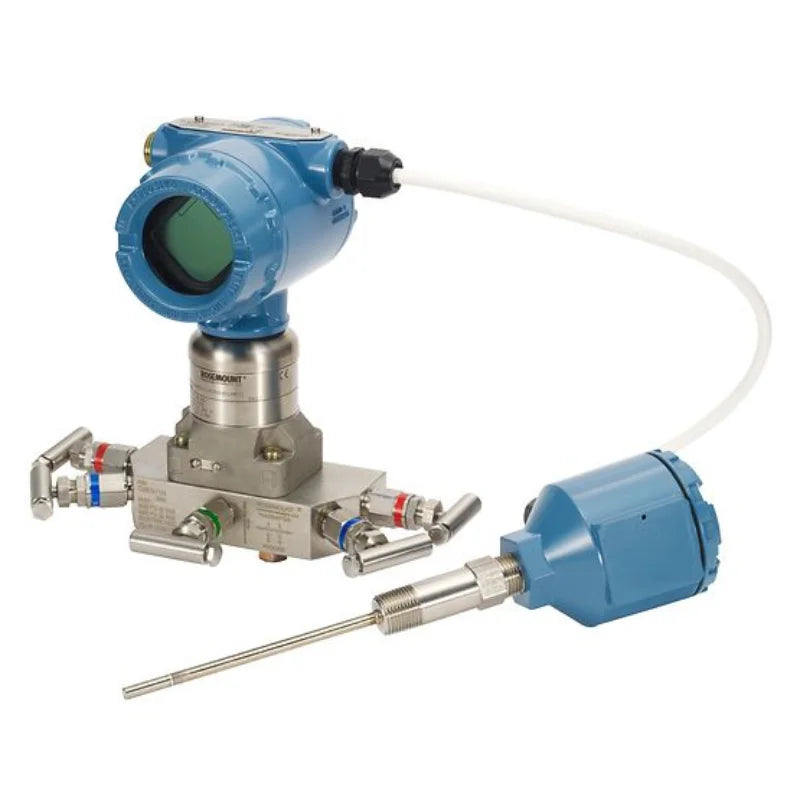

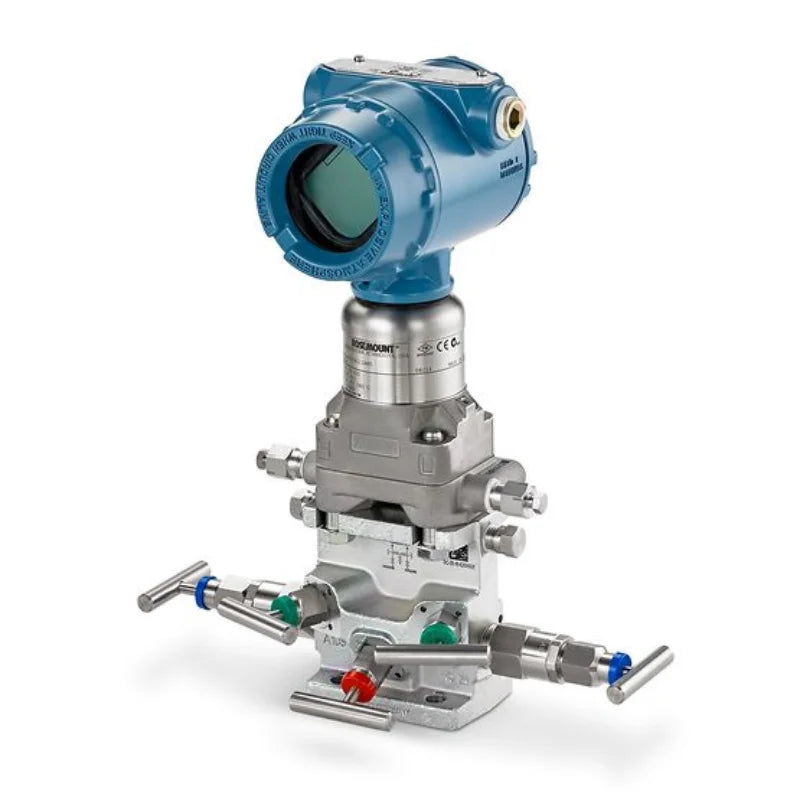

Rosemount 4088 MultiVariable™ Transmitter
The Rosemount 4088 MultiVariable Transmitter is an industry-leading pressure transmitter designed to meet challenging processes such as oil and gas production, custody transfer and plunger-lift well systems. Engineered with extended range capabilities to capture pressure spikes, this device also maintains excellent performance within a normal operating range. This Modbus™ transmitter is adaptable and capable of multivariable measurements of differential pressure, static pressure and process temperature.
Benefits
- Modbus transmitter allows multivariable measurements in combinations of differential and static pressure and temperature
* Primary elements available as assemble-to options for simple installation and commissioning
* Optimized sensor technology captures large fluctuations in flow rate that commonly occur in oil and gas production applications
* Enhanced for flow is a ±0.05% of reading specification for increased accuracy
* LCD display provides data right at the measurement point for further insight into the process
* Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
* Reverse wiring protection guards the device from incorrect wiring
* All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications
* Low power consumption helps reduce the size and amount of solar panels and battery banks for cost-efficiency
Specification
|
Item
|
value
|
|
Warranty
|
Other
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
ROSEMOUNT
|
|
Model Number
|
4088
|
|
Rangedown
|
Up to 100:1
|
|
Communication Protocol
|
Modbus™, BSAP/MVS
|
|
Measurement Range
|
Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static
|
|
Process Wetted Material
|
316L SST, Alloy C-276
|
|
Diagnostics
|
Basic Diagnostics
|
|
Certifications/Approvals
|
NACE™, hazardous location, see full specs for complete list of certifications
|
