Overview

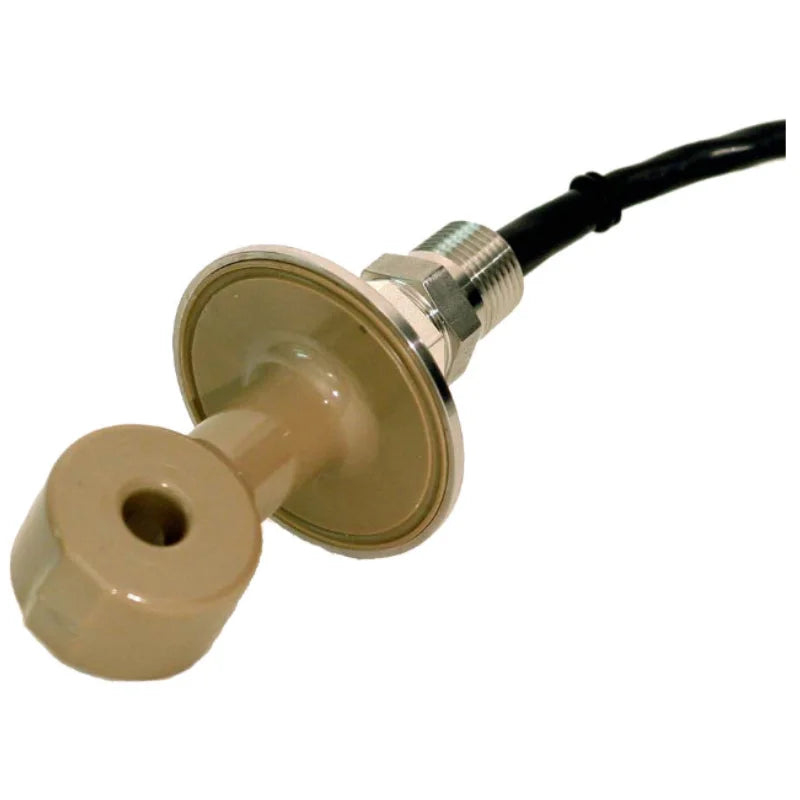

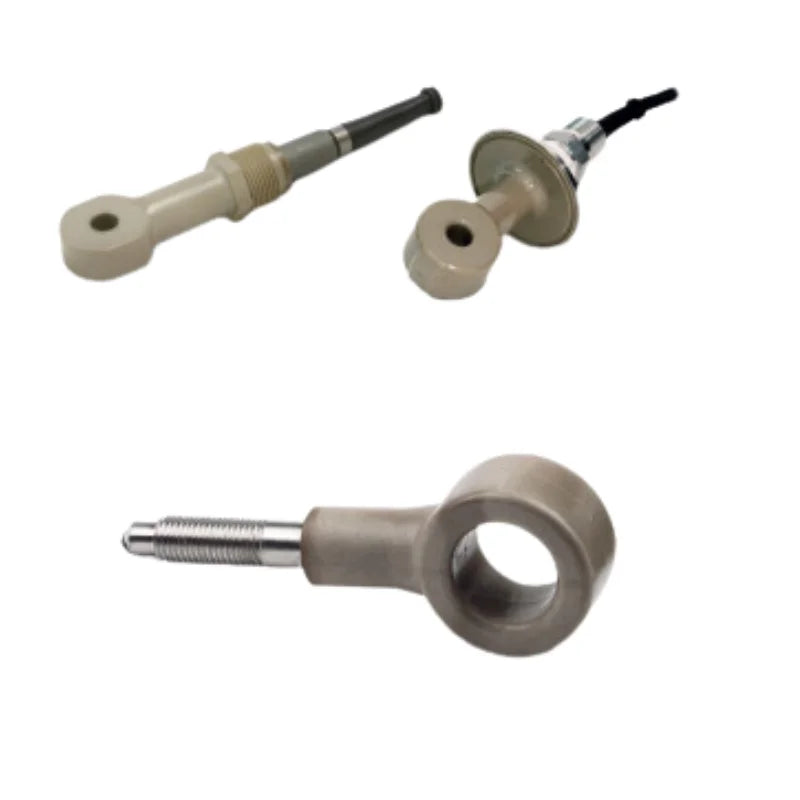

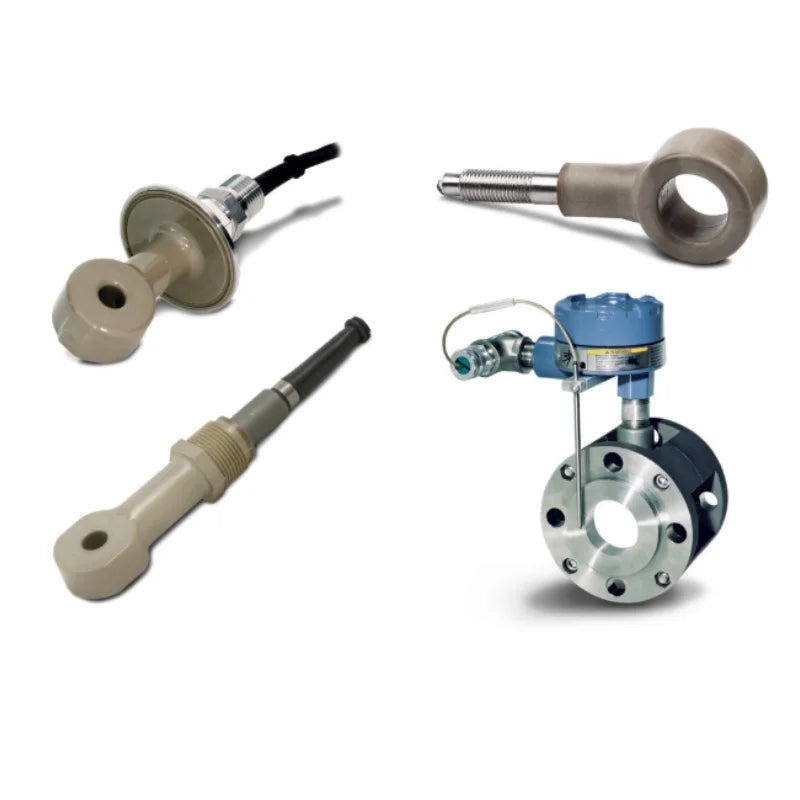

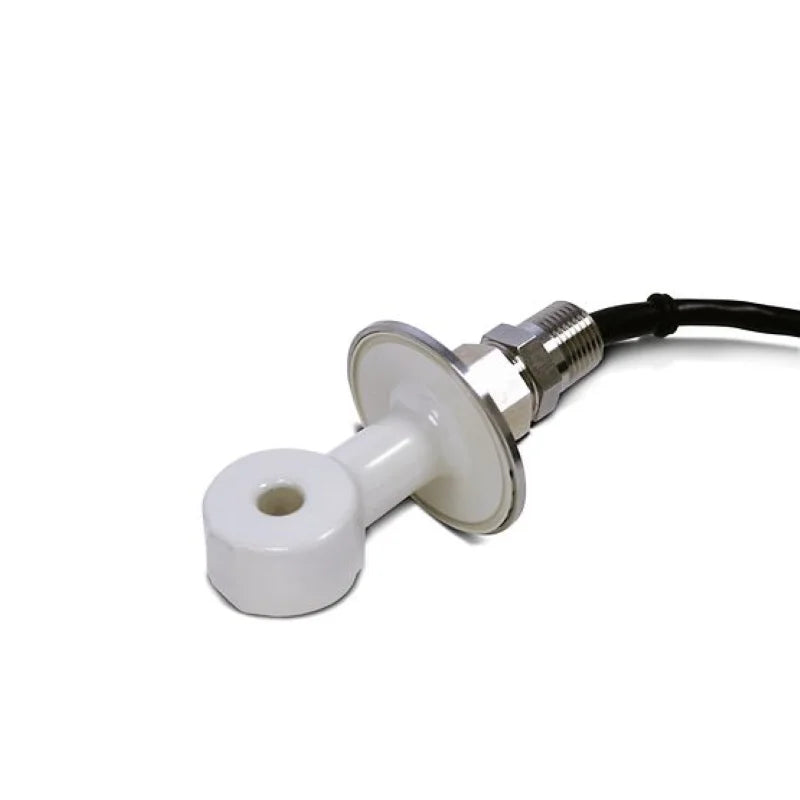

Rosemount™ 225 PUR-Sense™ Toroidal Conductivity Sensor
The Rosemount 225 Toroidal Conductivity Sensor is intended for use in pharmaceutical and food & beverage applications where a sanitary design is required. This conductivity sensor is corrosion and fouling resistant and is ideal for measuring the concentration of CIP solutions, detecting product/water interfaces, checking product quality, and monitoring eluents in chromatographic separations.
FEATURES
* Meets various sanitary requirements:
* 2-inch tri-clamp process connection
* Robust measurements - insensitive to process flow and direction
* Meet application compatibility requirements with a selection of chemical resistant body options including PEEK and Tefzel
- USP Class VI compliant
- FDA food contact 21CFR177.2415 compliant
- 3-A Sanitary Standard 74-06 compliant
* 2-inch tri-clamp process connection
* Robust measurements - insensitive to process flow and direction
* Meet application compatibility requirements with a selection of chemical resistant body options including PEEK and Tefzel
Specification
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
ROSEMOUNT/EMERSON
|
|
Model Number
|
225
|
|
Type
|
PUR-Sense™ Toroidal Conductivity Sensor
|
|
Battery
|
No
|
|
Usage
|
Industrial, Pen-Type pH Meter, Multiparameter pH Meter, Micro pH Meter, Portable pH Meter
|
|
Cell constant (nominal)
|
2.7/cm
|
|
Wetted materials
|
Body materials either glass-filled PEEK, glass-filled Tefzel, or unfilled Tefzel. Option -20 has EPDM gasket.
|
|
Process connection
|
-20: 5/8 in. 11 UNC, -21: 3/4 in. MNPT
|
|
Minimum conductivity
|
200 µS/cm (15 µS/cm when used with Rosemount 1056 and 56 transmitters)
|
|
Process connection
|
2-in. Tri Clamp
|
|
Conformance to 3-A sanitary standards:
|
Sensors with option -07 meet 3-A sanitary standards for sensors and sensor fittings and connections used on milk and milk products
equipment (74-06) |
|
Compliance with FDA food contact requirements:
|
Sensors with option -07 are molded from PEEK that meet 21CF177.2415.
|
|
Compliance with USP Class VI
|
Sensors with option -08 are molded from PEEK that meet USP Class VI requirements
|
|
Standard cable length
|
20 ft. (6.1 m)
|
|
Maximum cable length
|
200 ft. (61 m), up to 100 ft. (30 m) is standard.
|
|
Weight/shipping weight
|
2 lb./3 lb. (1.0 kg/1.5 kg)
|
|
Maximum temperature
|
230 °F (110 °C)-266 °F (130 °C)
|
|
Maximum pressure
|
200 psig (1480 kpa[abs])
|
