Overview
Designed for light bulk solids.
Specs at a glance
* Process temperature
-40°C ...+120°C
(-40°F ...+248°F)
* Process pressure / max. overpressure limit
-1 ... 25 bar
(-14.5 ... 360 psi)
-40°C ...+120°C
(-40°F ...+248°F)
* Process pressure / max. overpressure limit
-1 ... 25 bar
(-14.5 ... 360 psi)
Field of application

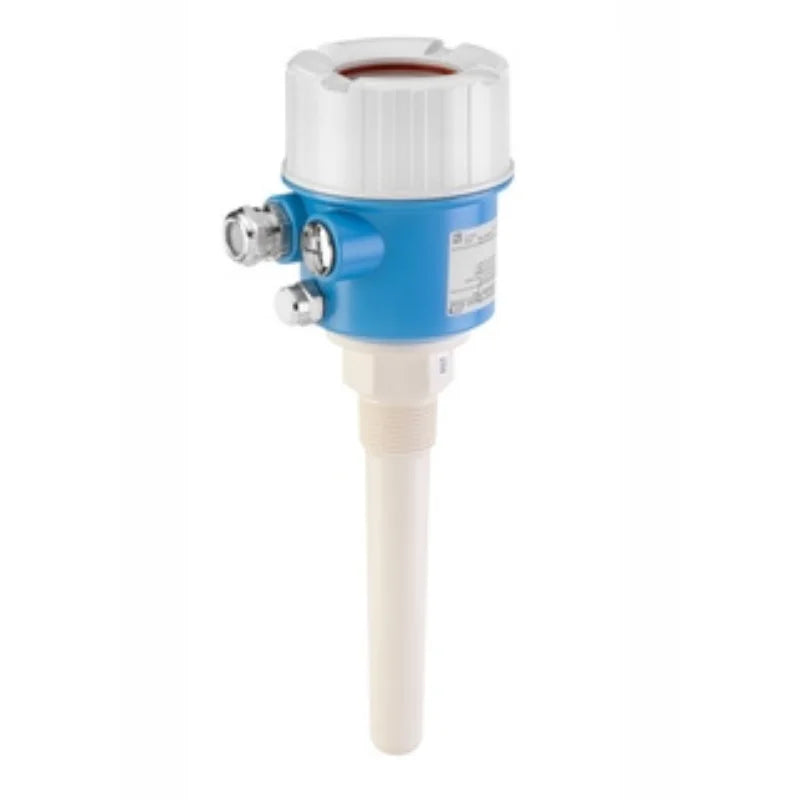

Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to
applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g.
grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
* Process connection: Threads
* Temperature: -40 to +80°C (-40 to +176°F)
* Pressure: -1 to +25bar (-14.5 to +360psi)
* Sensor length: 140mm (5.51")
* International explosion protection certificates, overfill prevention WHG
applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g.
grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
* Process connection: Threads
* Temperature: -40 to +80°C (-40 to +176°F)
* Pressure: -1 to +25bar (-14.5 to +360psi)
* Sensor length: 140mm (5.51")
* International explosion protection certificates, overfill prevention WHG
Benefits
* Simple mounting and commissioning without calibration
* Mechanical safety, cost-efficiency and long operating life due to no wearing parts
* High operational safety and reliability due to active build-up compensation
* Mechanical safety, cost-efficiency and long operating life due to no wearing parts
* High operational safety and reliability due to active build-up compensation
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Minicap FTC260
|
|
Mode
|
Capacitance Point Level Detection
|
|
Measuring Principle
|
Capacitive Solid
|
|
Characteristic / Application
|
Compact rod probe with build-up compensation
easy start up |
|
Specialities
|
FDA-listed material
|
|
Supply / Communication
|
10,8 ... 45V DC, DC-PNP 3-wire
20 ... 253V AC, or 20 ... 55V DC, Relay output |
|
Ambient Temperature
|
-40°C...+70°C
(-40°F...+158°F) |
|
Process Temperature
|
-40°C ...+120°C
(-40°F ...+248°F) |
|
Process Pressure / Max. Overpressure Limit
|
-1 ... 25 bar
(-14.5 ... 360 psi) |
|
Main Wetted Parts
|
PPS = Polyphenylene sulphide
(glass fibre content approx. 40%) |
|
Process Connection
|
R1"
NPT1" |
|
Sensor Length
|
140 mm (5.51")
|
|
Communication
|
PNP transistor output
Relay output (potential-free change-over contact / SPDT) |
|
Certificates / Approvals
|
ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex
|
|
Options
|
Aluminium Housing
|
|
Application Limits
|
Solids, grain size max. 30 mm (1.2"),
DK min 1,6 Flexural strength 1400 N (at probe tip) |
