Overview
Product overview: Fluke 721 Pressure Calibration Instruments
Fluke Premium Care eligible

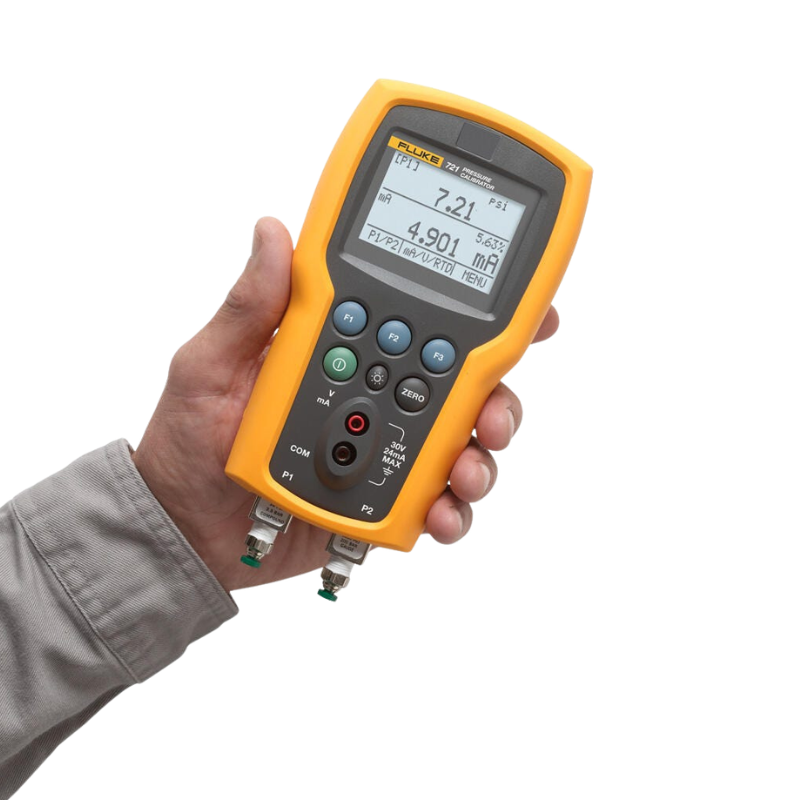

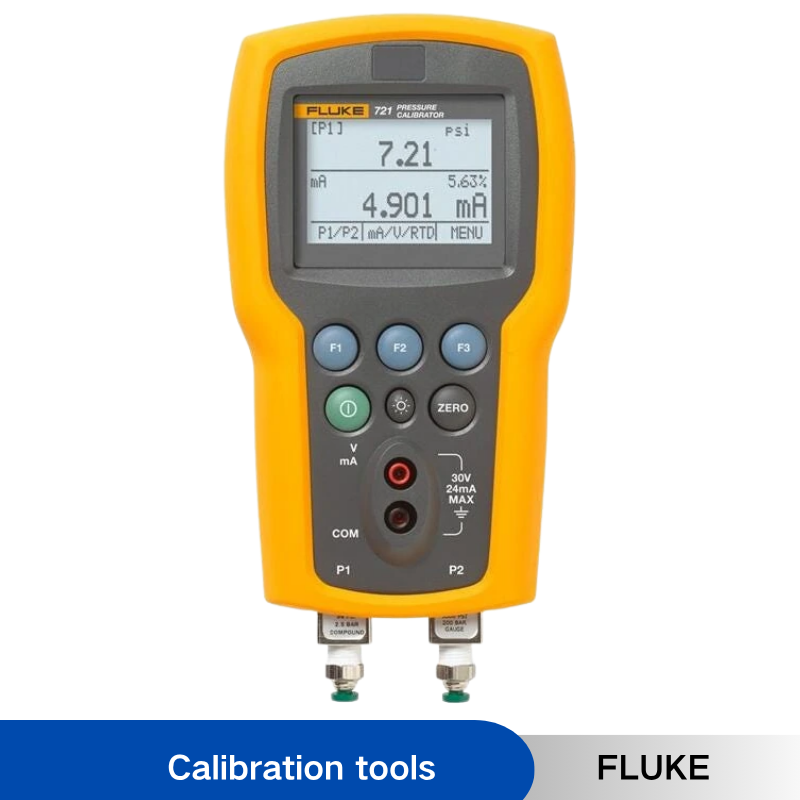

The Fluke 721 Precision Pressure Calibrator is the ideal tool for gas custody transfer applications. It features dual isolated pressure sensors to allow you to take simultaneous static and differential pressure measurements with a single tool. And it can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then adding any of seven high pressure ranges: 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).
Special features
- Precision pressure calibrator with dual isolated sensors for gas flow calibration (custody transfer) applications
- Features two isolated, stainless steel, pressure sensors with 0.025% accuracy
- Includes Pt100 RTD input for temperature measurement (probe optional)
- Measures 4 to 20 mA signals
- Provides internal 24 V loop power supply to power a transmitter under test
- Measures up to 30 V DC, checks 24 V loop power supplies
- Extends pressure measurement range with connection to external 750P
- 750 series pressure modules (50 ranges)
- Provides a large backlit graphic display that can show up to three inputs simultaneously
- Stores five instrument setups for recall
Models: Fluke 721 Pressure Calibration Instruments
Fluke 721-1615
Fluke 721-1615 Precision Pressure Calibrator
16 psig, 1500 psig, dual sensor pressure calibrator
Part#: 435340116 psig, 1500 psig, dual sensor pressure calibrator
UPC#: 0 95969 67398 3

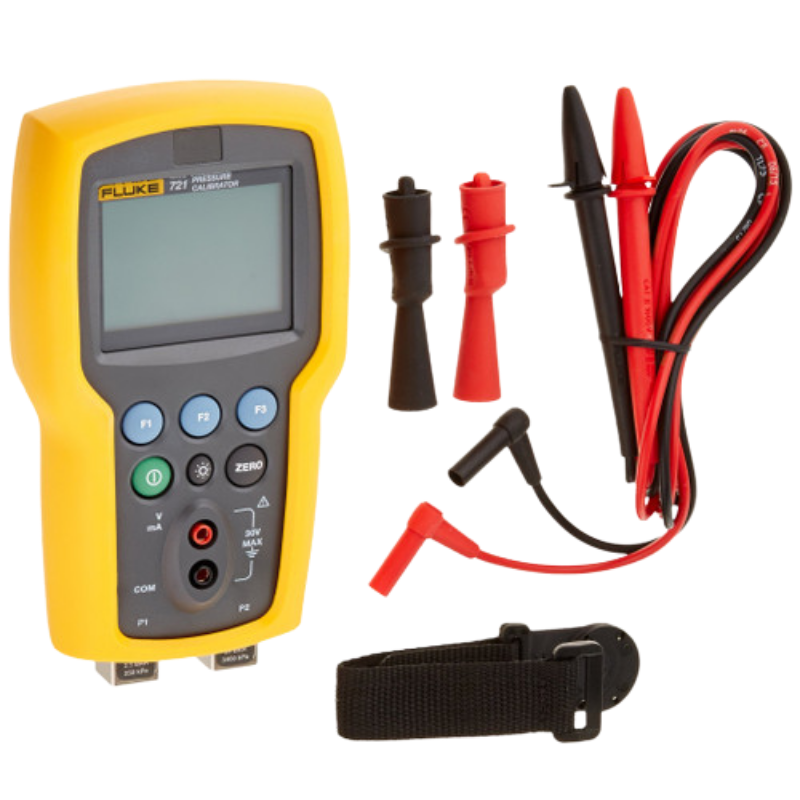

Includes:
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
Fluke 721-1630
Fluke 721-1630 Precision Pressure Calibrator
16 psig, 3000 psig, dual sensor pressure calibrator
Part#: 435344716 psig, 3000 psig, dual sensor pressure calibrator
UPC#: 0 95969 67402 7
Includes:
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
Fluke 721-1650
Fluke 721-1650 Precision Pressure Calibrator
16 psig, 5000 psig, dual sensor pressure calibrator
Part#: 435348616 psig, 5000 psig, dual sensor pressure calibrator
UPC#: 0 95969 67406 5
Includes:
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
Fluke 721-3615
Fluke 721-3615 Precision Pressure Calibrator
36 psig, 1500 psig, dual sensor pressure calibrator
Part#: 435341236 psig, 1500 psig, dual sensor pressure calibrator
UPC#: 0 95969 67399 0
Includes:
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
Fluke 721-3630
Fluke 721-3630 Precision Pressure Calibrator
36 psig, 3000 psig, dual sensor pressure calibrator
Part#: 435345836 psig, 3000 psig, dual sensor pressure calibrator
UPC#: 0 95969 67403 4
Includes:
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
Fluke 721-3650
Fluke 721-3650 Precision Pressure Calibrator
36 psig, 5000 psig, dual sensor pressure calibrator
Part#: 435349936 psig, 5000 psig, dual sensor pressure calibrator
UPC#: 0 95969 67407 2
Includes:
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
FPC1S-FLUKE72X-1
Premium Care 1-Year Standard Plan for Fluke 726, 725, and 721
Includes:
- Premium Care 1-Year Standard Plan
FPC3S-FLUKE72X-1
Premium Care 3-Year Standard Plan for Fluke 726, 725, and 721
Includes:
- Premium Care 3-Year Standard Plan
Specification
| Specifications 1-Year | |||
| Fluke-721-1615 | Range | Resolution | Accuracy |
| Low pressure sensor | |||
| -14 psi to +16 psi, -0.97 bar to 1.1 bar |
0.001 psi, 0.0001 bar |
0.025% of full scale | |
| High pressure sensor | |||
| 0 psi to +1500 psi, 0.00 bar to 103.4 bar |
0.1 psi, 0.001 bar |
0.025% of full scale | |
| Fluke-721-1630 | Low pressure sensor | ||
| -14 psi to +16 psi, -0.97 bar to 1.1 bar |
0.001 psi, 0.0001 bar |
0.025% of full scale | |
| High pressure sensor | |||
| 0 psi to +3000 psi, 0.00 bar to 200 bar |
0.1 psi, 0.01 bar |
0.025% of full scale | |
| Fluke-721-1650 | Low pressure sensor | ||
| -14 psi to +16 psi, -0.97 bar to 1.1 bar |
0.001 psi, 0.0001 bar |
0.025% of full scale | |
| High pressure sensor | |||
| 0 psi to +5000 psi, 0.00 bar to 345 bar |
0.1 psi, 0.01 bar |
0.035% of full scale | |
| Fluke-721-3615 | Low pressure sensor | ||
| -14 psi to +36 psi, -0.97 bar to 2.48 bar |
0.001 psi, 0.0001 bar |
0.025% of full scale | |
| High pressure sensor | |||
| 0 psi to +1500 psi, 0.00 bar to 103.4 bar |
0.1 psi, 0.01 bar |
0.025% of full scale | |
| Fluke-721-3630 | Low pressure sensor | ||
| -14 psi to +36 psi, -0.97 bar to 2.48 bar |
0.001 psi, 0.0001 bar |
0.025% of full scale | |
| High pressure sensor | |||
| 0 psi to +3000 psi, 0.00 bar to 200 bar |
0.1 psi, 0.01 bar |
0.025% of full scale | |
| Fluke-721-3650 | Low pressure sensor | ||
| -14 psi to +36 psi, -0.97 bar to 2.48 bar |
0.001 psi, 0.0001 bar |
0.025% of full scale | |
| High pressure sensor | |||
| 0 psi to +5000 psi, 0.00 bar to 345 bar |
0.1 psi, 0.01 bar |
0.035% of full scale | |
| General Specifications | |||
| Instrument setup recall | Last used on power-up | ||
| Environmental | Operating temperature -10°C to +50°C Storage temperature (without batteries) -20°C to +60°C |
||
| Altitude | 2,000 m | ||
| Ingress protection | IP-40 | ||
| Power requirements | 6.0 V DC | ||
| Battery life | >35 hours, typical usage | ||
| Batteries required | (4) Standard AA cells | ||
| Dimensions (H x W x D) | 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm) | ||
| Weight | 03539 kg (1 lb 3 oz) | ||
| Connectors/ports pressure | Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe | ||
| Electrical and Temperature Measurement 1-Year | |||
| Function | Range | Resolution | Accuracy |
| mA measure | 0 to 24 mA | 0.001 mA | ±0.015% of rdg ±0.002mA |
| V DC measure | 0 to 30 V DC | 0.001 V | ±0.015% of rdg ±0.002 V |
| Temperature measure (RTD/ Ohms)1 | -40°C to 150°C (-40°F to 302°F) |
0.01°C, 0.01°F | ±0.015% of rdg ±0.02 ohms ±0.1°C (±0.2°F) ±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe accessory |
| Loop power supply | 24 V | N/A | 24 mA @ 24 V |
| 1. Temperature measurement requires optional Fluke-720RTD Pt-100 RTD probe available as an accessory | |||
| Temperature Effect | |||
| No effect on accuracy on all functions from 15°C to 35°C | |||
| Add ±0.002% F.S./°C for temps outside of 15°C to 35°C | |||
| Available Pressure Engineering Units | |||
| psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F | |||
