Overview

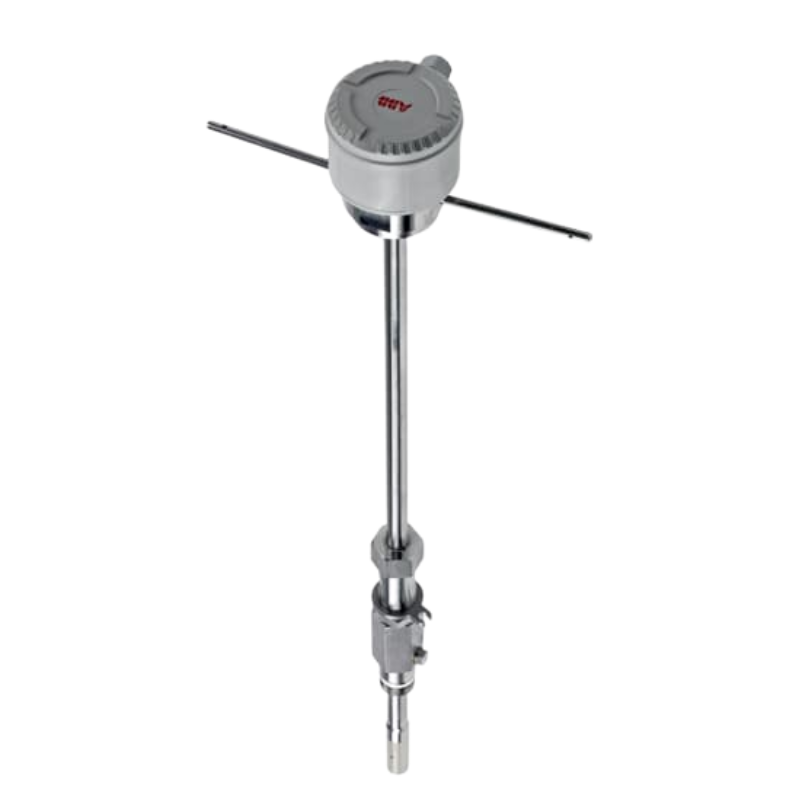

FEA100 insertion flowmeters are an economic alternative to full bore flowmeters. They comprise an electromagnetic sensing head mounted on the end of a support rod. FEA100 finds application in existing water distribution systems where provision for flow metering was not originally made and where a full bore flow meter would be uneconomic. The assembly can be installed in existing pipelines without the need for major excavations or alterations to pipe work normally associated with the installation full bore meters.

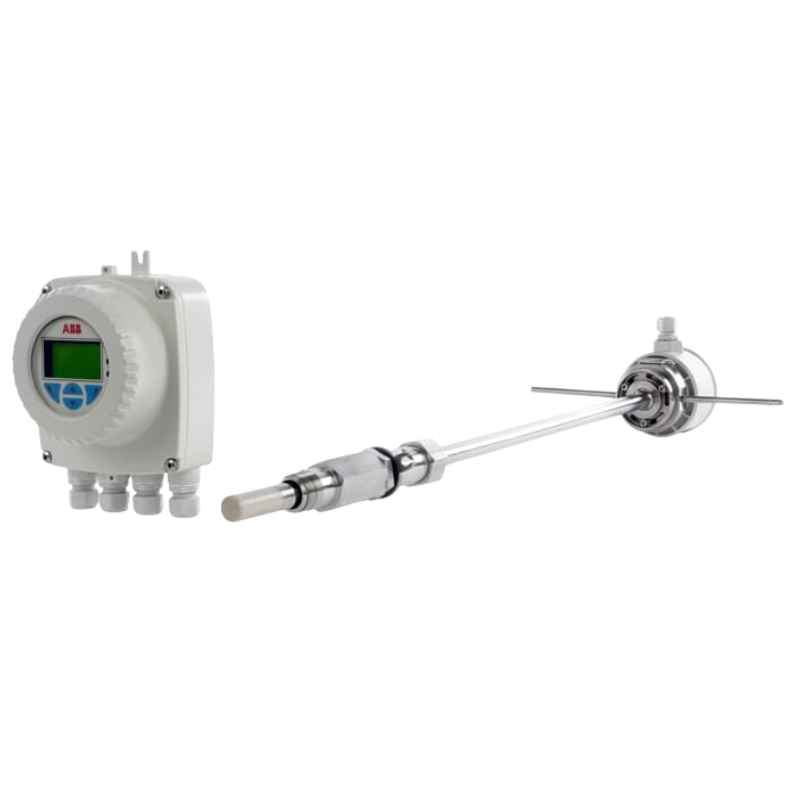

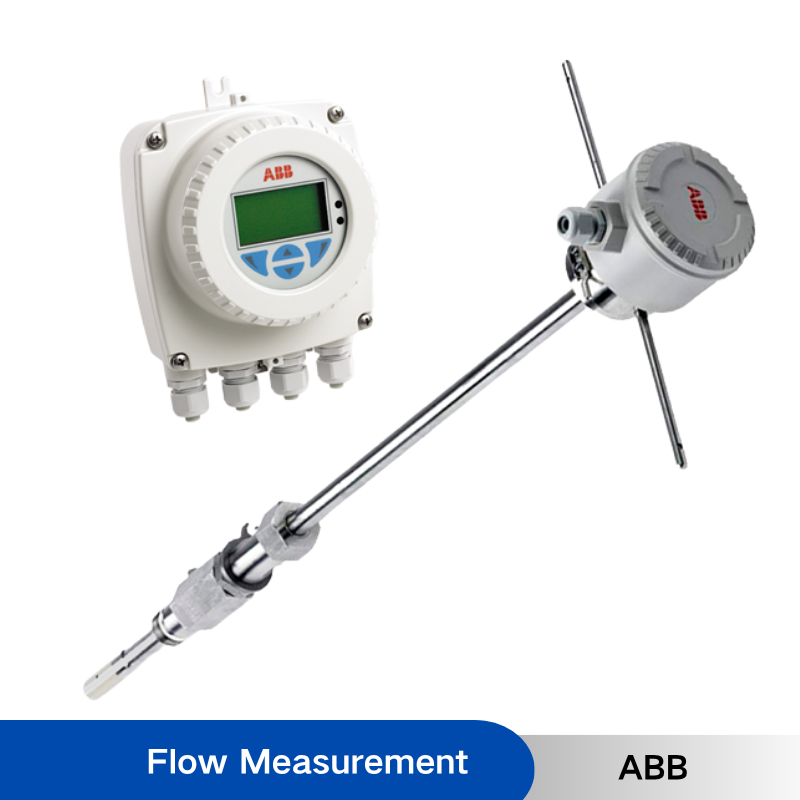

The AquaProbe FEA100 extends the capability of the ABB AquaProbe flowmeter by bringing together the proven. AquaProbe flow sensor with the innovative WaterMaster
transmitter. AquaProbe has been designed, in close consultation with the water industry, as an economic alternative to full-bore metering. It comprises an electromagnetic sensing head mounted on the end of a support rod. The sensing head can be installed in existing pipelines without the need for the major excavations or alterations to pipework associated with full-bore meters. It can be fitted without interrupting the water supply and can be removed easily for periodic calibration or inspection.
AquaProbe is designed for installation in existing pipelines by means of a small valved tapping. It is normally installed with the sensing head on the pipe centerline, but may be located at the critical position (the mean velocity position) a distance of 1/8 of the pipe diameter away from the wall. It provides an accurate local measurement of the water
velocity and, provided the flow profile is developed fully, a good flow volume measurement.
Benefits
Suitable for permanent or temporary installation
• total user flexibility
The most stable transmitter in the world
• self-calibrating transmitter and ultra-low temperature coefficient for
highest accuracy
One solution for all your needs
• designed for use in all clean water applications
Quick transmitter exchange
• revolutionary data storage enables transmitter interchange/
commissioning without reconfiguration
Advanced infrared service port
• supports simultaneous and parallel operation of HART®, remote HMI,
cyclic data output and parameter dump
OIML R49 permanent self-checking
• type P approved transmitter
• continuous self-checking of flow sensor and transmitter ensures
highest accuracy/long-term performance
3-year material defect warranty (AquaProbe sensor)
'Hot tap' capability
• enables installation with no interruption to water supply
Specification
| Item | Value |
|---|---|
| Brand Name | ABB |
| Model Number | FEA100 |
| Product Type | AquaProbe Insertion Electromagnetic Flowmeter |
| Application Type | Water Distribution and Wastewater Flow Measurement |
| Measurement Principle | Faraday’s Law of Electromagnetic Induction |
| Measurement Technology | Electromagnetic Flow Measurement |
| Measured Media | Electrically Conductive Liquids |
| Measurement Parameters | Flow Velocity and Volume Flow Measurement |
| Accuracy | ±2% of Rate or ±2 mm/s (Whichever is Greater) |
| Pipe Size Range | DN200 to DN8000 (8 to 320 in.) |
| Insertion Length | 300 mm, 500 mm, 700 mm, 1000 mm |
| Flow Direction | Bi-Directional Flow Measurement |
| Conductivity | >50 µS/cm |
| Maximum Pressure | 20 bar (295 psi) |
| Connection Types | 1 in. BSP; 1 in. NPT; 1.5 in. BSP |
| Protection Rating | IP68 / NEMA 6P |
| Submersion Capability | Continuous Submersion up to 10 m |
| Wetted Materials | Stainless Steel Body; 316L Stainless Steel Electrodes |
| Process Temperature | 0 °C to 60 °C |
| Ambient Temperature | -20 °C to 60 °C |
| Transmitter Compatibility | ABB WaterMaster Transmitter |
| Communication Protocols | HART; PROFIBUS DP (Via Compatible WaterMaster Transmitter) |
| Installation Method | Hot Tap Installation Without Pipeline Shutdown |
| Key Features | Cost-Effective Alternative to Full Bore Flowmeters, Easy Installation, Suitable for Large Diameter Pipes, Fully Submersible Design |
| Applications | Water Distribution Networks, Leakage Monitoring, Network Analysis, Irrigation Systems, Wastewater Applications |
