Overview
The modular design of the ProcessMaster FEP300 standard version offers the industry's widest range of liners electrodes and sizes to meet the needs of even the most demanding process applications in sectors as diverse as chemical, power, oil & gas, pulp & paper and metals & mining.

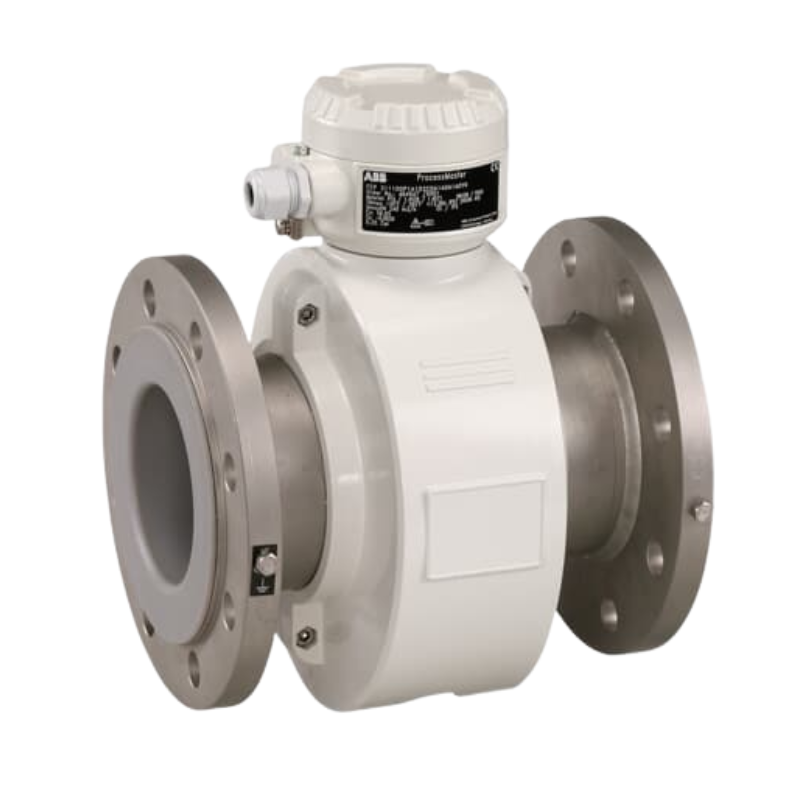

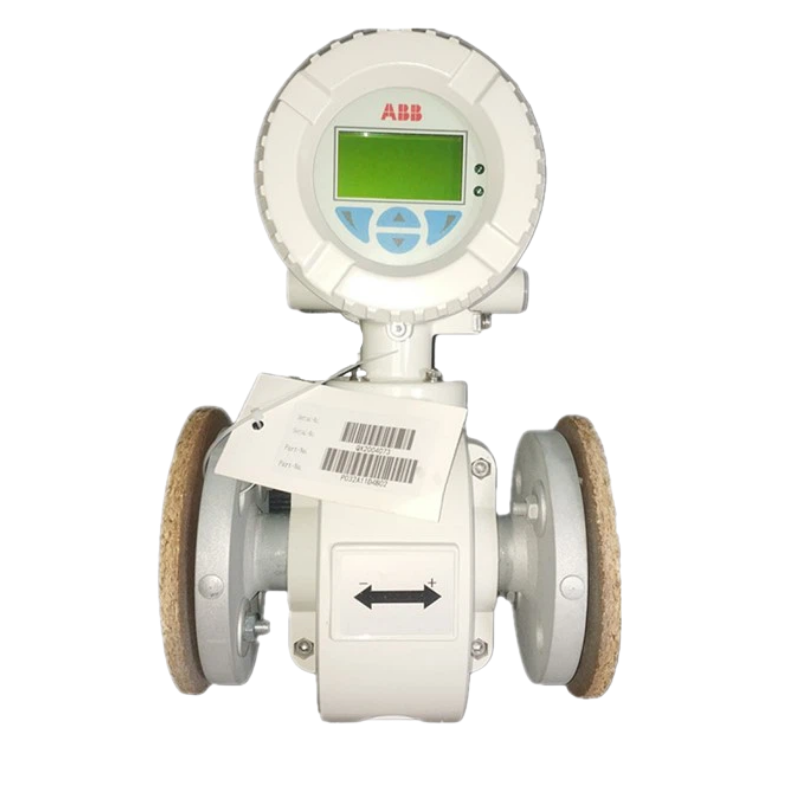

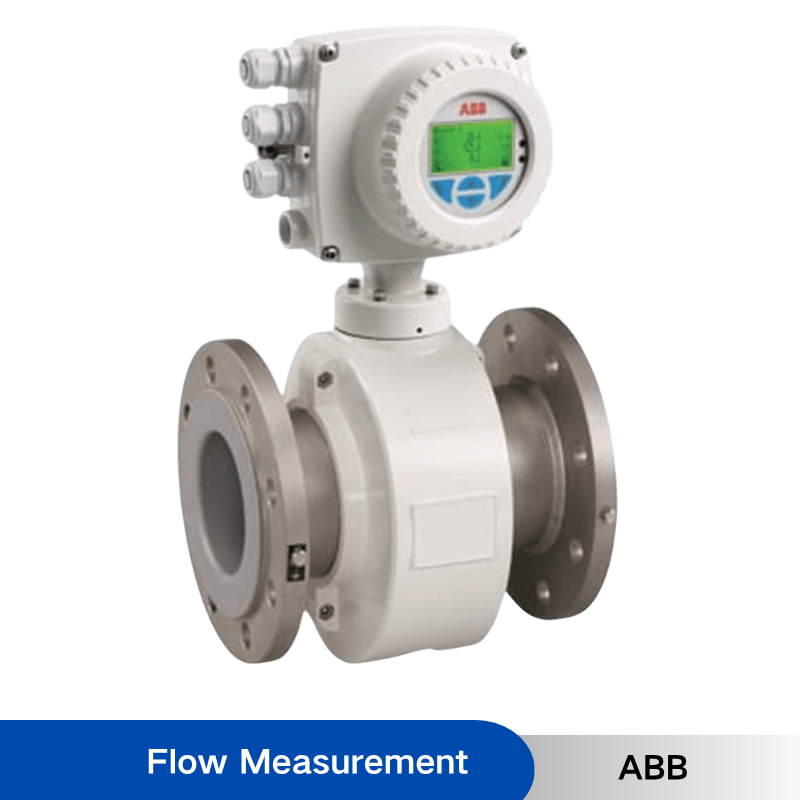

Available as integral mount design or remote mount design system.
The powerful transmitter is easy to use and provides the output signal that meets the needs.
ProcessMaster FEP300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation.
- Versatile and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– "Easy Set-up" function - State-of-the-art memory technology
– Data storage enables transmitter exchange without the need for reconfiguration - Diagnostics for real-life-situations
– Simplified plant trouble shooting
– Status messages in accordance with NAMUR
– Help texts in LCD display - ScanMaster in situ verification software option
– Allows the customer to perform in situ verification of the flowmeter and the plant
Benefits
-
Reliable and Accurate Measurement
Provides stable flow measurement performance for a wide range of conductive liquid applications. -
Flexible Configuration Options
Supports multiple sizes, liners, electrodes and process connections to meet different industrial requirements. -
Easy Commissioning and Maintenance
Easy Set-up function and data storage technology reduce installation and service time. -
Advanced Diagnostic Capability
Helps improve plant availability through device monitoring and troubleshooting functions. -
Wide Industrial Application Range
Suitable for demanding process industries including chemical, oil & gas, power, water and wastewater. -
Reduced Maintenance Costs
Non-moving-part design minimizes mechanical wear and improves long-term reliability.
Specification
| item | value | |
|---|---|---|
| accuracy | ±0.4% of rate (Standard); Optional ±0.2% of rate | |
| type | Electromagnetic Flowmeter | |
| brand name | ABB | |
| model number | FEP300 | |
| measurement type | Magnetic Inductive Flow Measurement | |
| measurement media | Conductive Liquids | |
| flow measurement | Volume Flow Measurement of Liquid Media | |
| measuring principle | Faraday's Law of Electromagnetic Induction | |
| nominal diameter | DN 3 to DN 2000 (1/10 to 80 in.) | |
| output signal | Configurable Current Output, Pulse/Frequency Output | |
| communication protocols | HART; PROFIBUS PA; FOUNDATION Fieldbus | |
| display | LCD Display | |
| display technology | Through-The-Glass (TTG) Configuration | |
| local operation | Configuration without Opening the Housing via Soft Keys and Easy Set-up Function | |
| electronics | Universal Transmitter Design with Data Storage Technology | |
| transmitter design | Compact Mount Design or Remote Mount Design | |
| diagnostics | Empty Pipe Detection; Partial Filling Detection; NAMUR Status Diagnostics | |
| verification function | ABB Ability™ Verification / ScanMaster In-Situ Verification Option | |
| protection rating | IP65 / IP67; IP68 (Remote Mount Design Configuration Dependent) | |
| process connection | Flange Connection according to DIN EN 1092-1, ASME B16.5/B16.47, JIS, AS2129 | |
| nominal pressure | PN 10 to PN 100; ASME Class 150, 300, 600, 900, 1500, 2500 | |
| liner materials | Hard Rubber, Soft Rubber, PTFE, PFA, ETFE, Linatex | |
| electrode materials | Configuration Dependent | |
| explosion protection | ATEX, IECEx, FM, cFM, NEPSI, GOST (Configuration Dependent) | |
| housing | Configuration Dependent (Compact or Remote Version) | |
| features | Easy Set-up, TTG Configuration, Advanced Diagnostics, Data Storage and Flexible Material Selection | |
| applications | Process Flow Measurement in Chemical, Oil & Gas, Power, Water, Pulp & Paper and Metals & Mining Industries |
