Overview

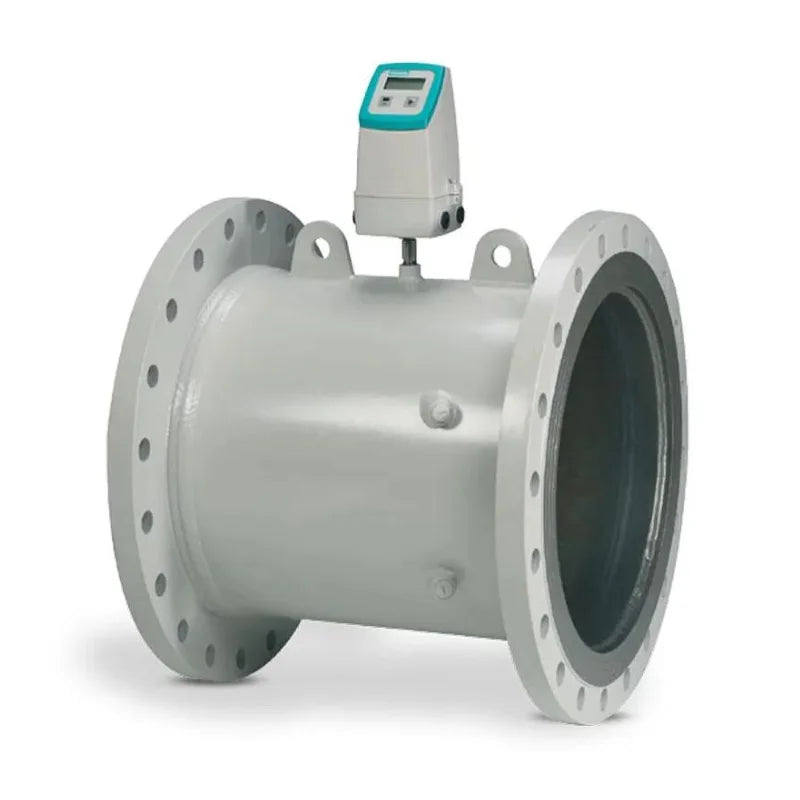

The 2-path flowmeter SITRANS FUS380 comes as battery or mains powered and is designed to measure water flow in district heating plants, local networks, boiler stations, substations, chiller plants (including glycol mixes) and other general water applications.
The type-approved flowmeter version is named SITRANS FUE380.
Technically, the meter types SITRANS FUS380 and SITRANS FUE380 are completely identical, only difference is the calibration limit and
the type approval for custody transfer.
The type-approved flowmeter version is named SITRANS FUE380.
Technically, the meter types SITRANS FUS380 and SITRANS FUE380 are completely identical, only difference is the calibration limit and
the type approval for custody transfer.
Benefits
* Battery-powered up to 6 years
* 115/230 V mains-powered with back-up battery option in case of mains power failure
* Fast measuring frequency 15 Hz/0.5 Hz (230 V AC/Battery)
* Easy one-button straight forward display
* 2-path measuring principle for optimum accuracy
* Compact or remote mounting
* Measures on most district water qualities and water conductivities
* No pressure drop
* Long-term stability
* 2 galvanically isolated digital outputs for easy connection to a calculator (potential-free)
* Analog output 4 to 20 mA
* Bidirectional measurement, with 2 totalizers and outputs
* Dynamic range qi (min) : qs (max) up to 1:400
* 115/230 V mains-powered with back-up battery option in case of mains power failure
* Fast measuring frequency 15 Hz/0.5 Hz (230 V AC/Battery)
* Easy one-button straight forward display
* 2-path measuring principle for optimum accuracy
* Compact or remote mounting
* Measures on most district water qualities and water conductivities
* No pressure drop
* Long-term stability
* 2 galvanically isolated digital outputs for easy connection to a calculator (potential-free)
* Analog output 4 to 20 mA
* Bidirectional measurement, with 2 totalizers and outputs
* Dynamic range qi (min) : qs (max) up to 1:400
The main application for SITRANS FUS380 is measurement of water flow or water flow in energy meter systems in district heating networks or chilled water (including glycol mixes).
The 2-path design of SITRANS FUS380 ensures maximum accuracy under short inlet conditions. The flowmeter consists of a flow sensor pipe, 4 transducers/transducer cables and a transmitter SITRANS FUE080.
The unit is available in a compact or a remote version. Both versions are pre-mounted with short coax-cables. Remote transmitter up to a distance of 30 m by one Sensor link cable (SSL). Compact mounting is only possible up to 120 °C (248 °F). The sensor must be isolated to protect transmitter from heat. The transmitter is available in an IP67/NEMA 4X/6 enclosure.
The unit is available in a compact or a remote version. Both versions are pre-mounted with short coax-cables. Remote transmitter up to a distance of 30 m by one Sensor link cable (SSL). Compact mounting is only possible up to 120 °C (248 °F). The sensor must be isolated to protect transmitter from heat. The transmitter is available in an IP67/NEMA 4X/6 enclosure.
The flowmeter digital output is often used as input for an energy meter or as input for digital systems for remote reading. SITRANS FUS380 has two digital output functions that can be individually selected. Pulse output rate is defined when ordering. To get optimal benefit the pulse value must be selected as low as possible. If the flowmeter forms part of an energy meter system for custody transfer, no further approvals are needed, except possible local approvals on the flowmeter.
Together with the SIMATIC PDM tool the FUS380 offers the possibility of testing and verifying the flowmeter on site and creating a printed ”Qualification Certificate” with specific data that defines the quality status of the measurement.
The Qualification Certificate shows information about the actual status of the flowmeter:
* General settings, flowmeter and battery information, totalizer values, and pulse output settings
* Detailed information about the transmitter and the sensor functionality, and a main parameter list for evaluating the functionality of the flowmeter.
The Qualification Certificate shows information about the actual status of the flowmeter:
* General settings, flowmeter and battery information, totalizer values, and pulse output settings
* Detailed information about the transmitter and the sensor functionality, and a main parameter list for evaluating the functionality of the flowmeter.
Specification
|
item
|
value
|
|
Measuring Range
|
Qp 15 to 36000 m³/h (depends on size)
|
|
Nominal Size
|
DN 50 to DN 1200 (2" to 48")
|
|
Accuracy
|
±0.5% of flow rate
|
|
Operational Pressure
|
Pressure rate max. PN 40
|
|
Operation Temperature
|
0 … 60 °C (32 … 140 °F)
|
|
Medium Temperature
|
2 … 200 °C (35.6 … 392 °F)
Bronze: Up to 150 °C (302 °F) |
|
Design
|
2-path sensor with flanges and integrated transducers
|
|
Material
|
Carbon steel Bronze (only DN 50 to 80)
|
|
Nominal Size
|
DN 50 … 80 in bronze
|
|
Pipe Material
|
DN 100 … 1200: Carbon Steel
EN 1.0345/P235 GH, painted in light-gray • DN 50 … 80: Die-cast bronze G CuSn10/W2.1050.01 (EN 1982 |
|
Transducer Material
|
Stainless steel (AISI 316/1.4404)/brass (CuZn
36Pb2As) |
|
Degree Of Protection
|
Sensor connection IP67/NEMA 4X/6
|
|
Max. Flow Velocity
|
DN 50 … 1200: 9 m/s (29.5 ft/s)
|
|
Sensor Cable
|
Pre-mounted with short coax-cables
5, 10, 20, 30 m (16.4, 32.8, 65.6, 98.4 ft) |
