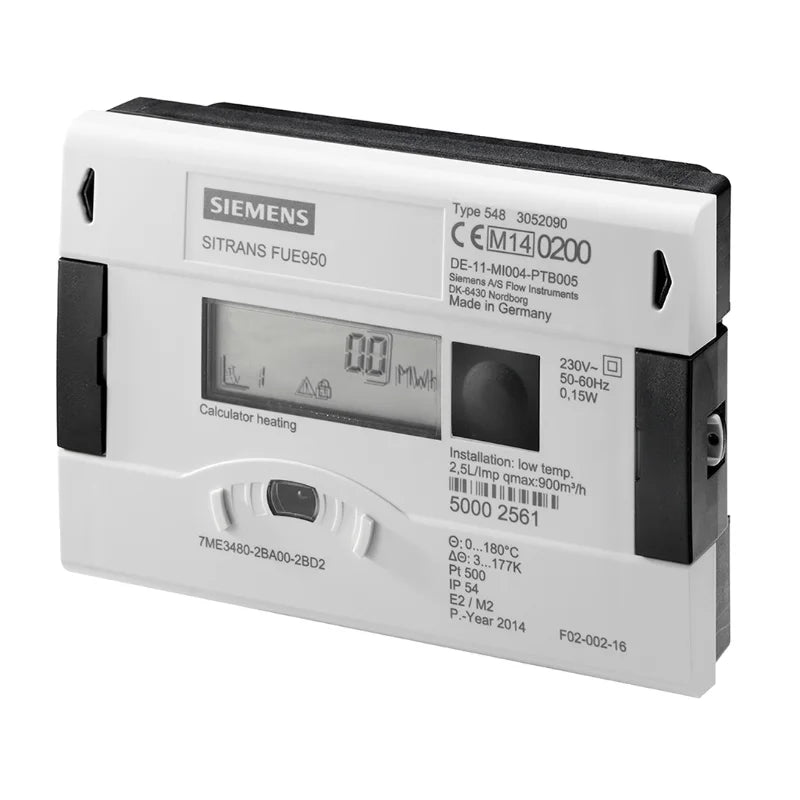

SIEMENS SITRANS FUE950 7ME348 Universal Custody Transfer Approved Energy Calculator

Availability: In stock

Product type: Flow Measurement

Regular price ~~$380.00~~ $380.00 Sale

Overview SITRANS FUE950 is a universal thermal energy calculator, which meets the requirements EN 1434 and has the MID and PTB K7.2 approval for energy metering with the media...

Regular price ~~$380.00~~ $380.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

SITRANS FUE950 is a universal thermal energy calculator, which meets the requirements EN 1434 and has the MID and PTB K7.2 approval for energy metering with the media water. SITRANS FUE950 has been developed for the SITRANS FUS380/FUE380 and alternatively MAG 5000/6000 or FST020. SITRANS FUE950 is modular in construction and can by order be fitted with optional modules depending on the application. The FUE950 supports none of the SITRANS FX, FC products and only some of the FUS clamp-on products.

Benefits

Basic functions
* Prepared for heating, cooling measurement
* Approval for MID for heat metering and PTB K7.2 for cooling
* High-accuracy thermal energy metering, meets EN 1434 requirements
* Measured temperature range -20 … +190 °C (-4 … +374 °F)
* Instantaneous values for energy/volume flow
* Battery or mains powered
* Battery version with battery lifetime of typically up to 10 years
* Optical data interface
* Real date and time
* Auto-detection of 2-wire or 4-wire temperature sensors

Additional functions
* Individual tariff functions
* Advanced functions for cooling/heating applications or the combination
* Memory for 24 periods (months, weeks, days)
* Data logger function
* Expandable functionality with 2 optional plug and play add-on modules
* Communication over M-Bus, RS 485 or RS 232

Application

The SITRANS FUE950 is able to handle 3 kinds of applications, means energy calculation in:
* District heating applications
* Chilled water applications
* Combined cooling/heating applications

SITRANS FUE950 has an easy-read 8-digit LCD display with associated pictograms for the various functions. As the display has been made for several applications, some figures/symbols not used for normal district heating applications will be shown.

SITRANS FUE950 has a push button for simple operation and provides user-friendly control via the various display menu loops. The display will always be configured for the application chosen, and for the selected display settings.
The integrator has an IP54 plastic housing and is designed for wall or panel mounting. The housing comes with prepared rubber gaskets cable entries for fast and easy installation.

Operation menu loop structure : the FUE950 display has six menu loops and the menus are numbered in the display from 1 to 6. Some display menus consist of two values (to maximum seven) that are shown alternately at 4-second intervals.
The main menu loop no. 1 with the current data, e.g. for energy, volume, flow rate and temperature, is preprogrammed as default setting.
In the combined heating/cooling configuration the menu loop no. 5 (tariff menu loop) will be activated additionally.

Displays and output pulses: Units: MWh, GJ, Gcal, MBtu, m3 , gal, m3 /h, GPM, °C, °F and kW; all decimal points are statically (the unit "gal" is shown with factor x 100).
The display unit and the last fractional digit are typical used for the pulse outputs.

Specification

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	SIEMENS
Model Number	FUE950
Type	Ultrasonic meters
Meassuring Range	Qp ≤ 360000 m³/h (600000 GPM) P ≤ 15000000 kW
Accuracy	EN1434 Class 3,
Input	Pulse of flowmeter,PT100/500,2 or 4-wire,2 Pulse input (optional)
Output	2 Pulse or status,
Display	8-digit LCD display with associated pictograms/symbols
Enclosure	IP54 (in accordance with IEC 529)
Power Supply	Battery (3.6V Lithium D-cell type) 230 V a.c. 24 V a.c.
Temperature Input	From -20 to 190 °C (-4 to 374 °F)
Ambient Temperature	From 0 to 55 °C (32 to 131 °F)
Approvals	MID (EN1434, heating) and PTB K7.2 (cooling)
