ROSEMOUNT 3051S Wireless Differential Pressure Flow Transmitter

Availability: In stock

Product type: Pressure Transmitter

Vendor: ROSEMOUNT

Regular price ~~$550.00~~ $550.00 Sale

Overview Rosemount™ 3051S Wireless Differential Pressure Flow Transmitter The Rosemount 3051S Wireless Differential Pressure Flow Transmitter combines no-equal scalable technology and state-of-the artprimary flow elements with the security...

Regular price ~~$550.00~~ $550.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

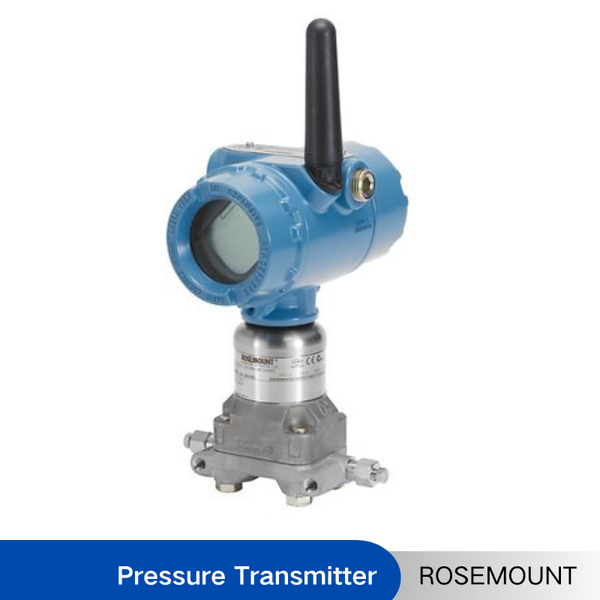

Rosemount™ 3051S Wireless Differential Pressure Flow Transmitter

The Rosemount 3051S Wireless Differential Pressure Flow Transmitter combines no-equal scalable technology and state-of-the art
primary flow elements with the security and data reliability of a WirelessHART®network. A best-in-class solution, this DP flow transmitter seamlessly integrates with a variety of primary elements that can be pre-assembled to the device. As a wireless transmitter, installation is straightforward, delivering long-lasting, >99% data reliability without the cost of wiring.

Benefits

* WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
* Primary elements can be pre-assembled to transmitter for an optimized, ready-to-install DP flow solution
* Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
* All-welded hermetic SST SuperModule™ platform delivers 15-year stability and 15-year limited warranty
* Ultra and Ultra for Flow performance classes enables up to 0.025% of span accuracy
* 200:1 rangedown produce reliable measurements and wide application flexibility
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring

Specification

Item	value
Warranty	1 Year
Customized support	OEM, ODM, OBM
Place of Origin	United States
Brand Name	ROSEMOUNT
Model Number	3051S
Rangedown	Up to 200:1
Communication Protocol	WirelessHART®
Measurement Range	Up to 2000psi (137,89 bar) differential
Process Wetted Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics	Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals	NACE, hazardous location, see full specs for complete list of certifications
Output	Differential pressure, scaled variable
Wireless Update Rate	1 sec. to 60 min., user selectable
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
